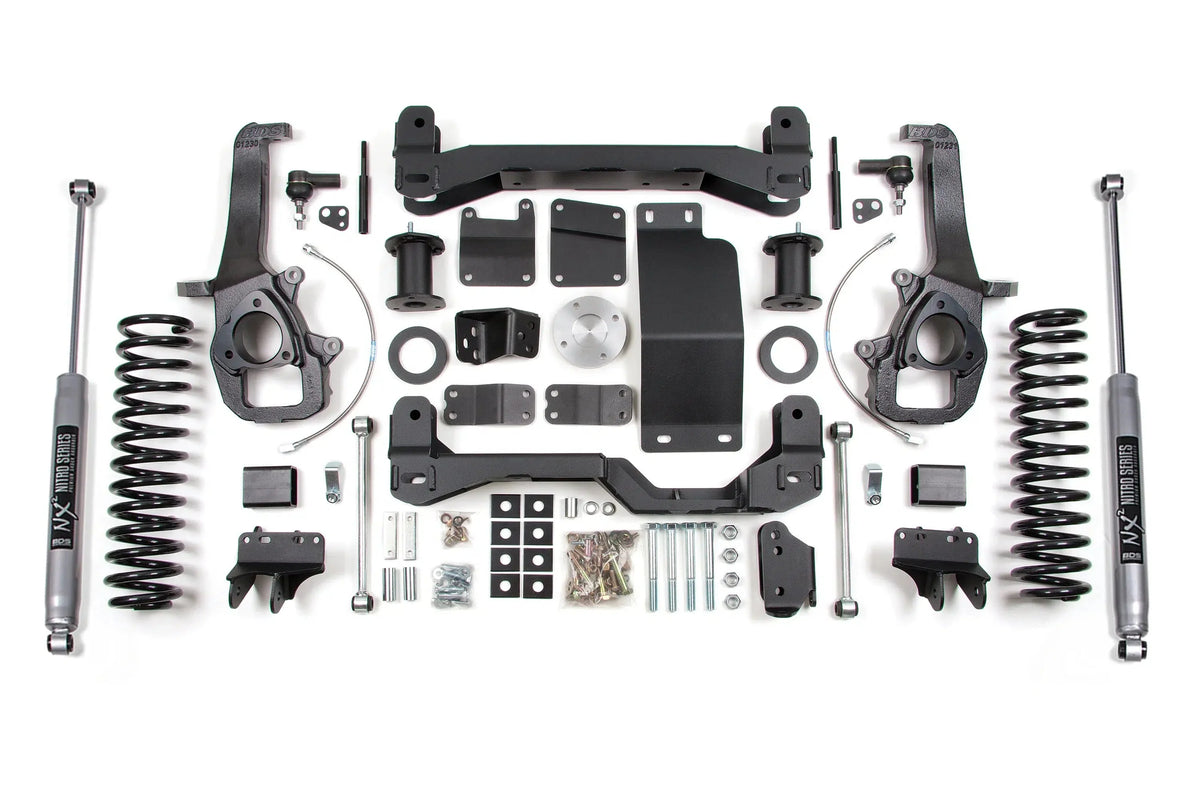

2013-2021 Ram 1500 6" Lift Kit with NX2 Nitro Shocks (BDS671H)

BDS 6" suspension lift for the 2013-2021 Ram 1500 with clearance for up to 37" tires. The high-clearance design corrects suspension and steering geometry while improving ground clearance and offroad protection. Up front it uses top mounted strut spacers, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles with replacement tie rod ends for ESC compatibility. In the rear it uses progressive rate Pro-Ride coil springs, upper control arm relocation brackets, a track bar relocation bracket, bump stop extensions, and sway bar links, finished with NX2 Nitro or FOX 2.0 Performance shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• The rack and pinion steering system is sensitive to an out-of-round or out-of-balance tire/wheel combination. Increasing tire diameter and/or decreasing wheel backspacing can cause minor steering wheel shimmy.
• Not recommended for AWD models.
• Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch can be reinstalled with a factory tire.
• Will not fit adjustable air suspension equipped models.
• This kit will bolt on Eco-Diesel models but will require an aftermarket front drive shaft.
• TRX models will achieve approximately 1 inch of additional lift. This lift is not recommended for TRX models due to possible CV shaft vibration; instead consider the 4 inch lift system for about 5 inch of lift, or replace the TRX struts with standard struts.
• This kit is FMVSS No.126 compliant.
• These vehicles vary from 1 inch to 3 inch tail high from the factory. BDS offers both 3 inch and 5 inch rear kits. Measure your vehicle and order the appropriate rear lift height to level it.
• 3 inch coil springs - use if your vehicle is 3 inch tail high from the factory.

Includes

• BDS022309, 09-18 Dodge 1500 3in Rear Box Kit (UPC 658848615353)
• BDS022624, 2012 Dodge 1500 6 Inch Frnt Box Kit 3 of 4 (UPC 658848615483)
• BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4 (UPC 658848615490)
• BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4) (UPC 658848615506)
• BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4) (UPC 658848615513)
• BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 (UPC 711745609679)
