2013-2018 Ram HD 3" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1622FPE)

This BDS 3" radius arm lift kit fits the 2013-2018 Ram 3500 diesel truck, with clearance for up to 35" tires. Up front it uses high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, diesel-specific Pro-Ride progressive rate coil springs, a high-strength adjustable 1-3/8" solid steel track bar for steering correction, sway bar links, brake line brackets and FOX 2.5 Performance Elite shocks. In the rear it uses a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front adjustable track bar allows you to re-center axle
• Front sway bar correction to maintain handling performance
• BDS NX2 or FOX series IFP gas shocks for improved ride and offroad performance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Notes

• Some trucks are equipped with rear dual overload springs. Order 4068 to retain top overload leafs.
• Not for use with factory rear airbag suspensions.
• Trimming may be required.
• Wheel/tire fitment: 35 x 12.5 with 17 x 9 and 5" backspace; 35 x 12.5 with 18 x 9 and 4.5" backspace; 35 x 12.5 with 20 x 9 and 4.5" backspace.

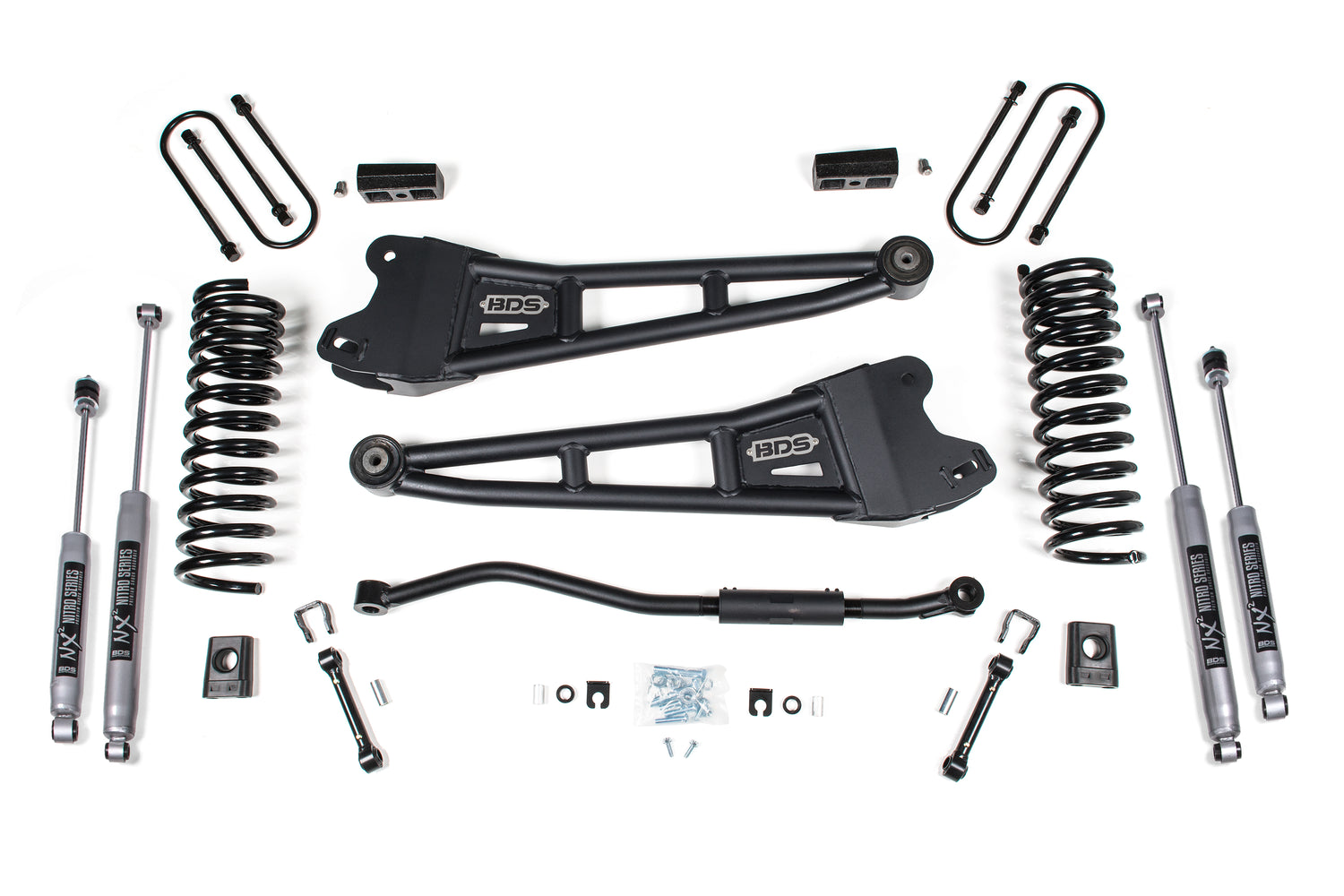

Includes

• BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 (UPC 658848612093)
• BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit (UPC 711745611436)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
• FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchСњ Lift, Dual Speed Compression Adjust
