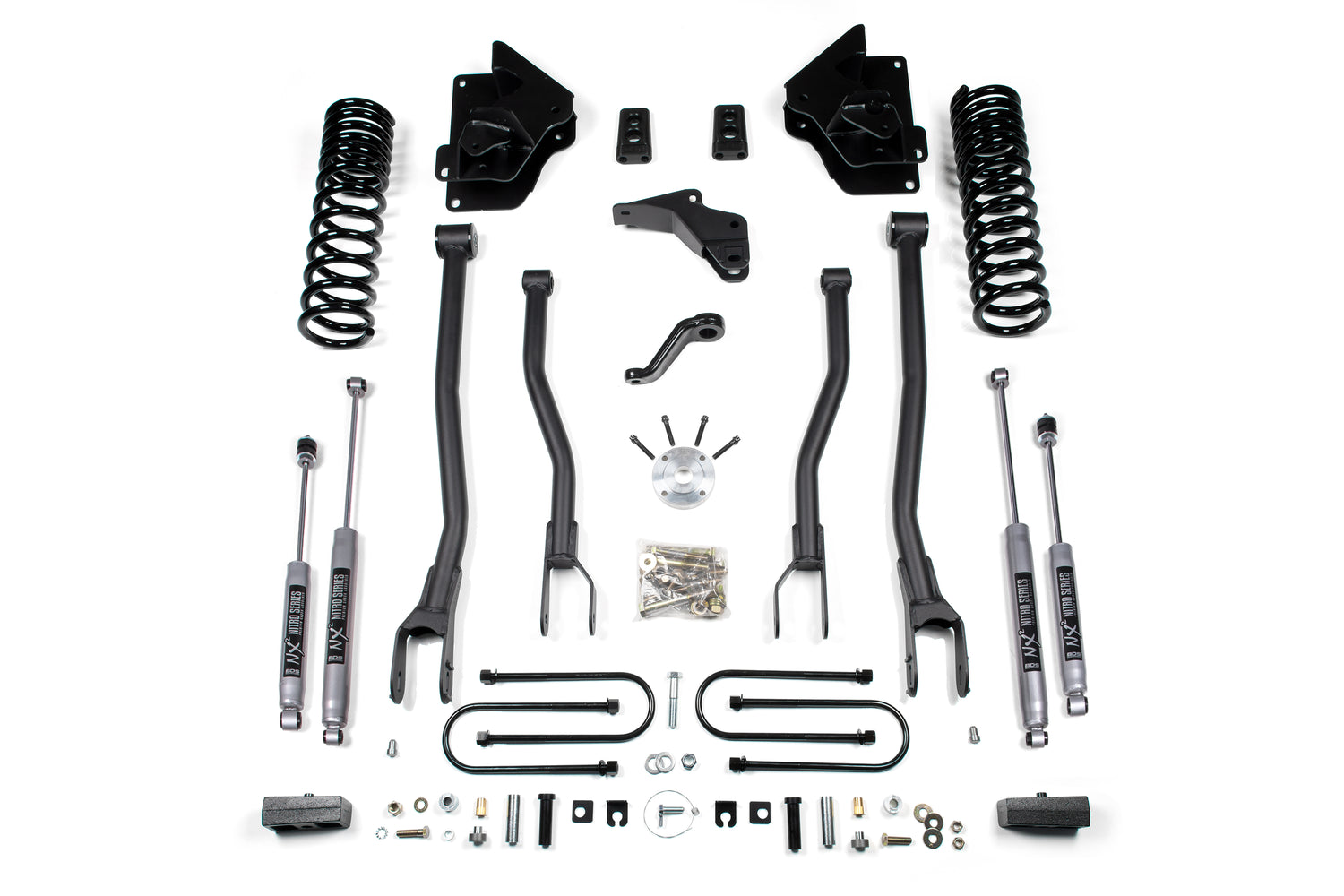

2013-2018 Ram HD 4" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1776H)

BDS engineered a 4" lift kit with 4-link conversion for your 2013-2018 Ram 3500 diesel truck, with clearance for up to 35" tires. Up front it converts the factory stamped steel radius arms to a heavy-duty 4-link with diesel-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned NX2 shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 performance shocks.

Features

• Heavy-duty 4-link improves strength, handling, and caster control
• Front high-strength progressive-rate coil springs
• Front track bar relocation bracket to reposition the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• 2" rear block kit for a level to slightly low rear stance
• NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• The carrier bearing drop kit is necessary for models equipped with a two-piece rear driveshaft.

Includes

• BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 (UPC 658848612093)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609686)
