2013-2018 Ram HD 4" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1776FPE)

BDS Suspension engineered this 4" lift kit with 4-link conversion for your 2013-2018 Ram 3500 diesel, with clearance for up to 35" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, 4-link control arms with conversion mounts, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and tuned FOX 2.5 Performance Elite shocks. The 4-link conversion uses high-strength 1/4" steel brackets and HD upper and lower control arms to correct axle positioning while limiting caster change through wheel travel. The rear uses a high-strength fabricated lift block, longer u-bolts and matching FOX 2.5 shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• 2 inch block kit, level to slightly low rear stance
• Tire size 35x12.5; wheel 18x9 or 20x9; back spacing 4.5/4.5
• 2.5-inch Impact extruded aluminum shock body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from the high-pressure nitrogen
• Dual Speed Compression adjuster standard
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• The carrier bearing drop kit is necessary for models equipped with a two-piece rear driveshaft.

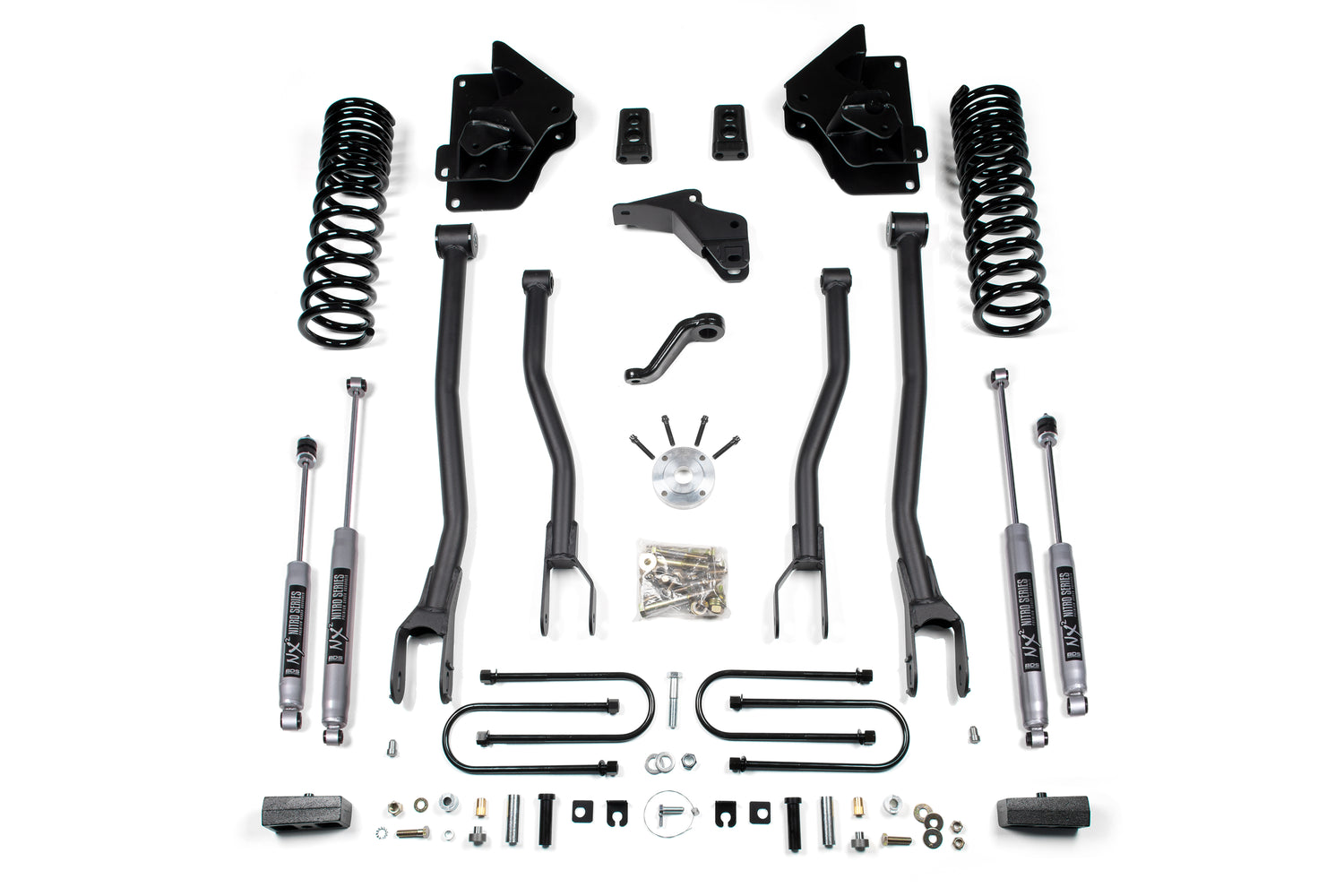

Includes

• BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 (UPC 658848612093)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
