2013-2018 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1613FS)

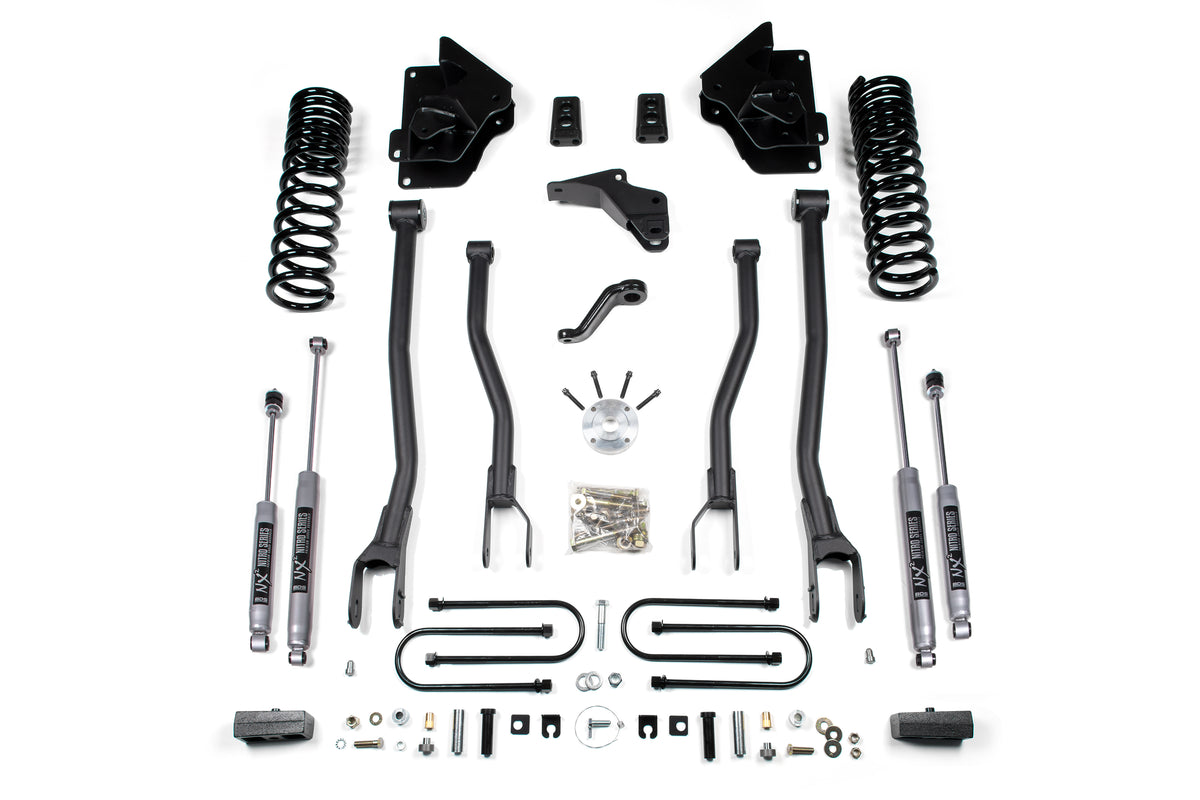

BDS 4" lift with 4-Link conversion for the 2013-2018 Ram 3500 gas truck with clearance for up to 35" tires. Up front it includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. The 4-link converts the factory stamped steel radius arms over to high-strength 1/4" steel brackets that mount HD upper and lower control arms to correct axle positioning while limiting caster change through wheel travel. In the rear it uses a high-strength fabricated lift block, longer u-bolts, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks
• Level to tail high appearance
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x13.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/5.625

Notes

• The carrier-bearing drop kit is necessary for models equipped with a two-piece rear drive shaft.
• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require it as well. The vehicle can be driven without the front driveshaft to an exhaust shop before reinstalling the driveshaft.

Includes

• BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle (UPC 711745611450)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
