2013-2018 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1777FS)

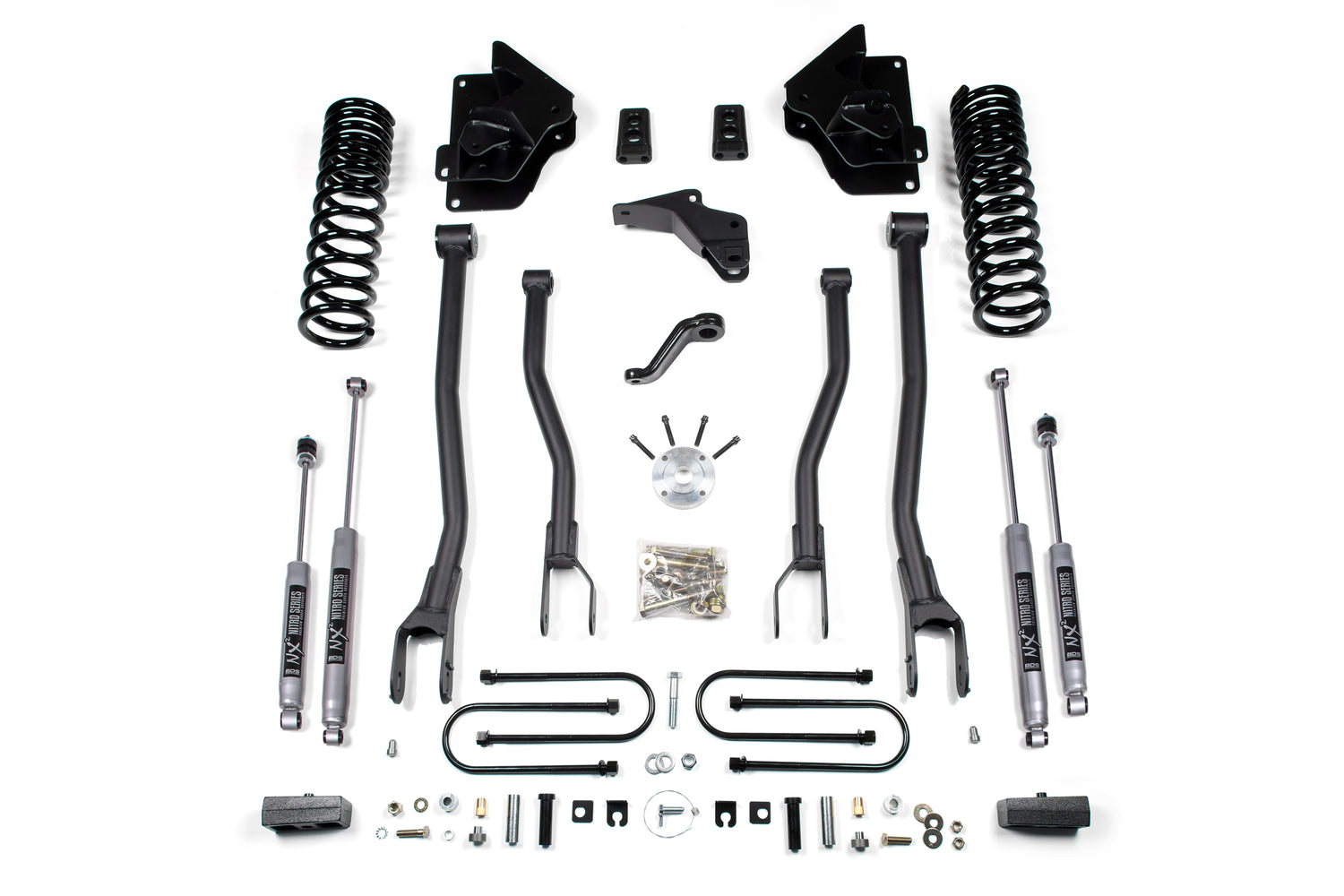

BDS engineered a 4" lift kit with 4-link conversion for your 2013-2018 Ram 3500 gas truck, with clearance for up to 35" tires. Up front it converts the factory stamped steel radius arms to a heavy-duty 4-link with gas-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned FOX 2.0 shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of FOX 2.0 performance shocks.

Features

• Heavy-duty 4-link improves strength, handling, and caster control
• Front high-strength progressive-rate coil springs
• Front track bar relocation bracket to reposition the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• Tail low to level stance
• FOX 2.0: 2" Impact extruded aluminum body, IFP monotube design
• CNC-machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston, application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x13.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/5.625

Notes

• The carrier bearing drop kit is necessary for models equipped with a two-piece rear driveshaft.
• 6.4L gas models will require exhaust modification to clear the front driveshaft; 5.7L gas models may require it as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modification before reinstalling the driveshaft.

Includes

• BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 (UPC 658848612093)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
