2013-2018 Ram HD 4" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1613FPE)

BDS engineered this 4" lift kit with 4-Link conversion for the 2013-2018 Ram 3500 gas truck, with clearance for up to 35" tires. Up front it converts the factory stamped steel radius arms to a BDS 4-link using high-strength 1/4" steel brackets and HD upper and lower control arms, plus gas-specific Pro-Ride progressive rate coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and FOX 2.5 Performance Elite shocks. In the rear it uses a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 or FOX series IFP gas shocks for improved ride and offroad performance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x13.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/5.625

Notes

• The carrier-bearing drop kit is necessary for models equipped with two-piece rear drive shaft.
• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications before reinstalling the driveshaft.

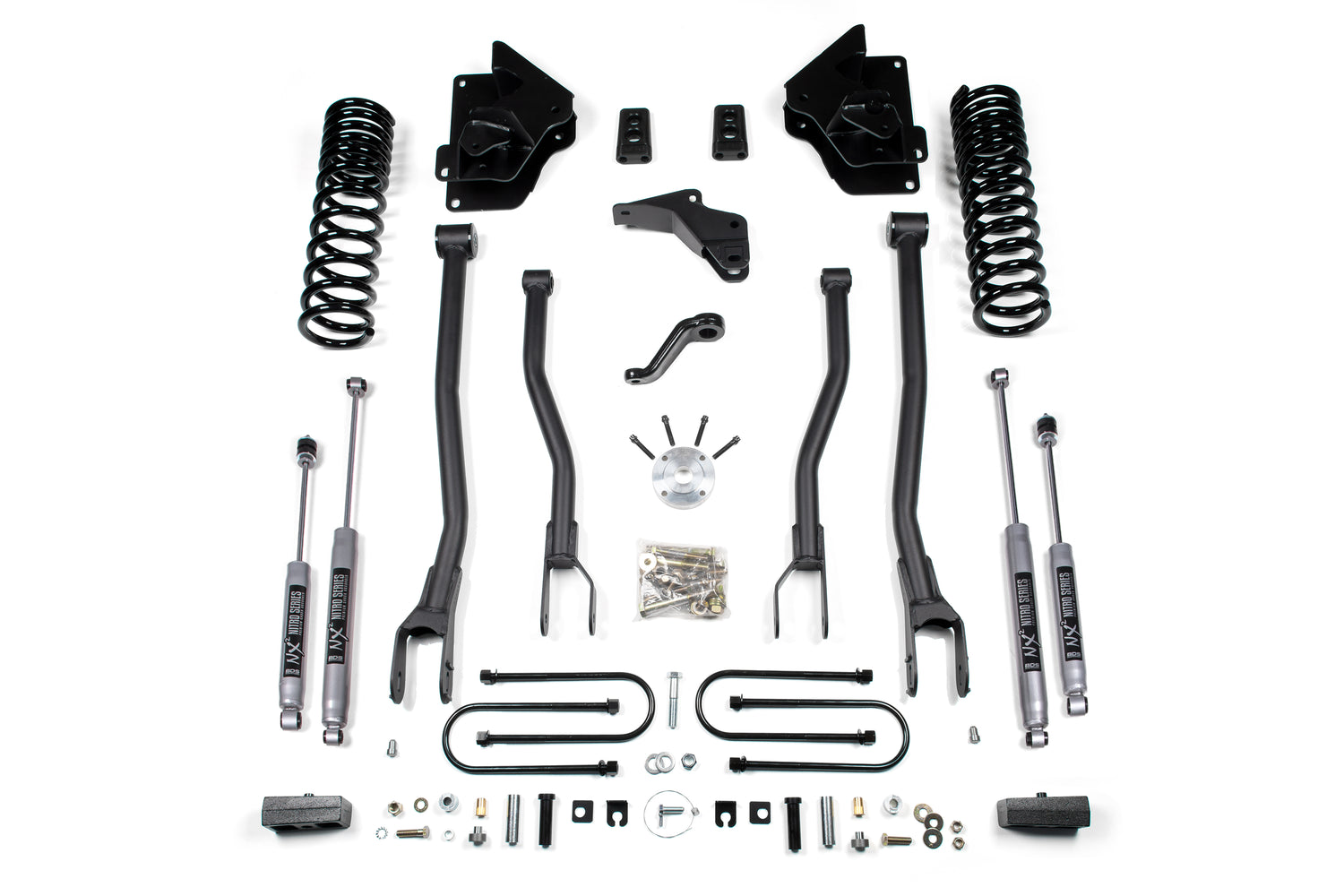

Includes

• BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle (UPC 711745611450)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
• FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
