2013-2018 Ram HD 5.5" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1780FPE)

BDS Suspension engineered this 5.5" lift kit with 4-link conversion for your 2013-2018 Ram 3500 gas truck, with clearance for up to 37" tires. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, 4-link control arms with conversion mounts, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and tuned FOX 2.5 Performance Elite shocks. The 4-link conversion uses high-strength 1/4" steel brackets and HD upper and lower control arms to correct axle positioning while limiting caster change through wheel travel. The rear uses a high-strength fabricated lift block, longer u-bolts and matching FOX 2.5 shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Cast iron construction for high strength
• Designed to provide correct pinion angles

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch
• 4 Inch Block: Tail low to level stance

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x13.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/5.625

Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft; 5.7L gas models may also require it. The vehicle can be driven without the front driveshaft to an exhaust shop for modification before reinstalling.
• The carrier bearing drop is necessary for models equipped with a two-piece rear driveshaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• DRW models: fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits.

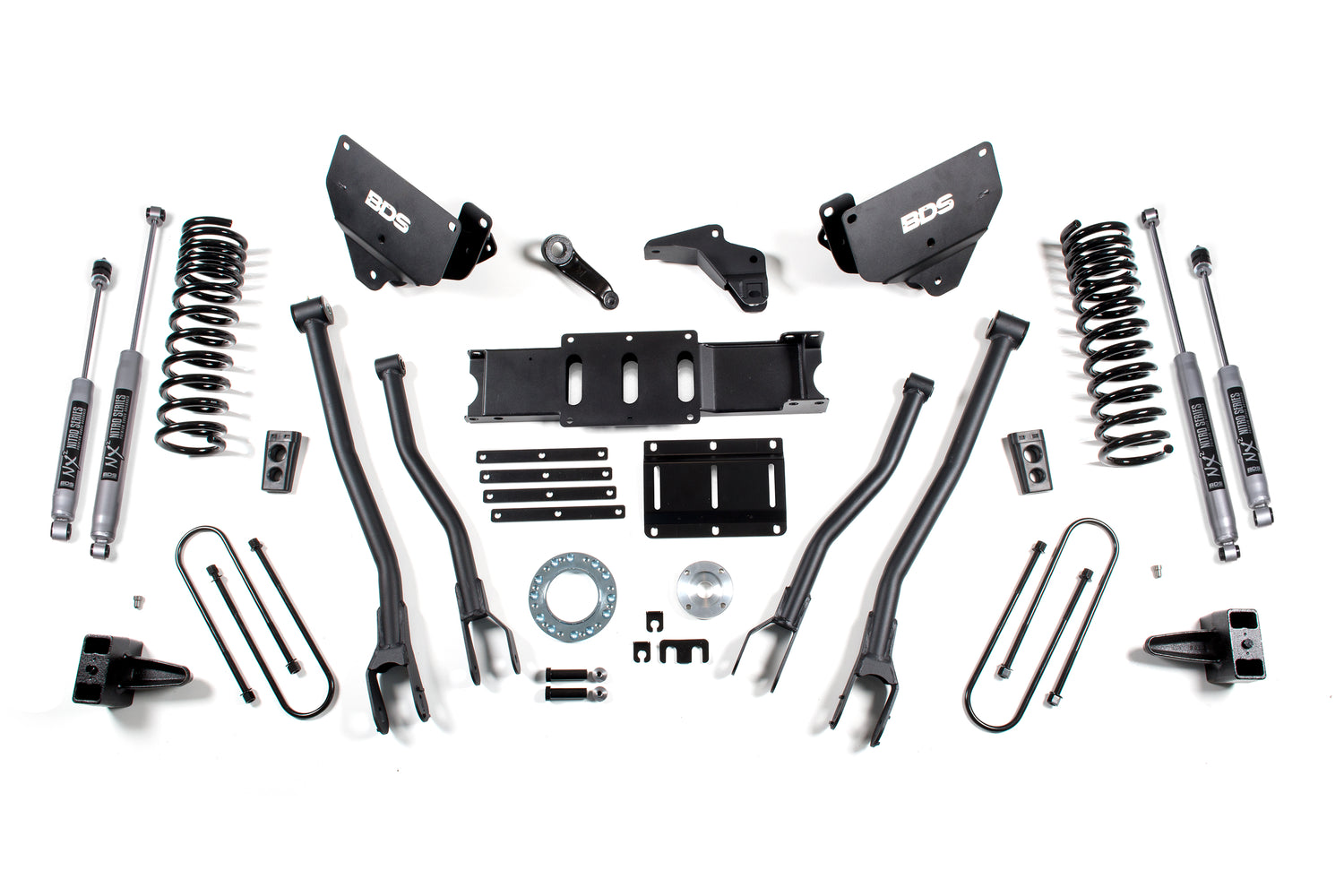

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012405, 03-up Dodge 3/4ton 4 Inch Rear (UPC 658848612352)
• BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) (UPC 658848612703)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122616, Ram T-Case Index - Gas - 6 Bolt (UPC 658848619702)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
