2013-2018 Ram HD 5.5" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1620H)

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• NX2 Nitro Internal Floating Piston shocks for improved ride and off-road performance
• Multi-leaf progressive rear leaf springs provide a level stance front to rear and reduce axle wrap for a more controlled, stable feel
• Maintains factory payload weight ratings

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9
• Back Spacing: 4.5/5.625

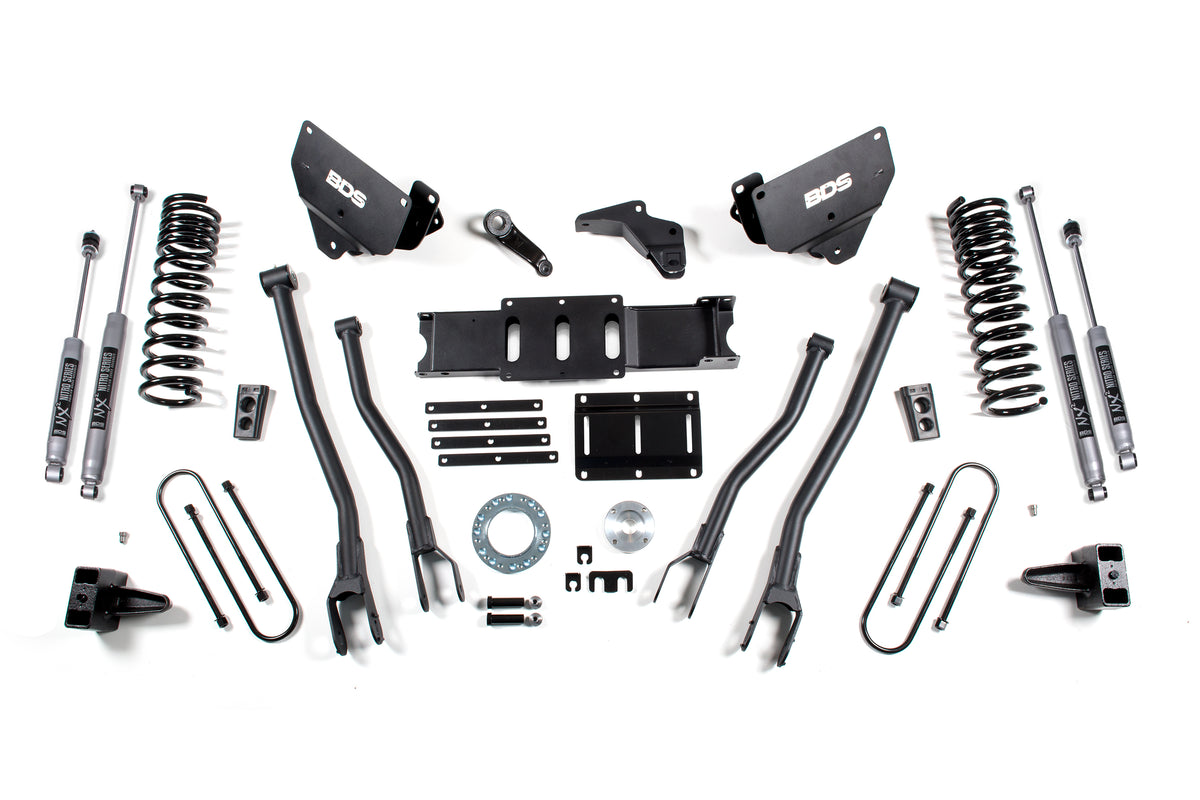

Includes

• BDS002609 - Ram Rear Leaf Spring (UPC 658848611300), Qty 2
• BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012604 - 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) (UPC 658848612703)
• BDS032401 - 2013-2018 Ram 3500 / 2014-2018 2500 Ram Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122616 - Ram T-Case Index, Gas, 6 Bolt (UPC 658848619702)
• BDS85752 - Shock 27.40 x 16.20 x 2-3/8, S50/EB2 (UPC 711745609624), Qty 2
• BDS85761 - Shock 33.00 x 19.25 x 2-3/8, EB1/EB1 (UPC 711745609709), Qty 2
• UBT4067 - 9/16 x 4 x 12-1/2 Round U-bolt (UPC 711745613003), Qty 4
