2013-2018 Ram HD 5.5" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS2105FPE)

Take your 2013-2018 Ram 3500 gas truck to the next level with this BDS Suspension 5.5" radius arm lift kit, with clearance for up to 37" tires. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and tuned FOX 2.5 Performance Elite shocks. The rear uses a high-strength fabricated lift block, longer u-bolts and matching FOX 2.5 shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 35x12.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/4.5

Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft; 5.7L gas models may also require it. The vehicle can be driven without the front driveshaft to an exhaust shop for modification before reinstalling.
• The carrier bearing drop is necessary for models equipped with a two-piece rear driveshaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• DRW models: fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits.

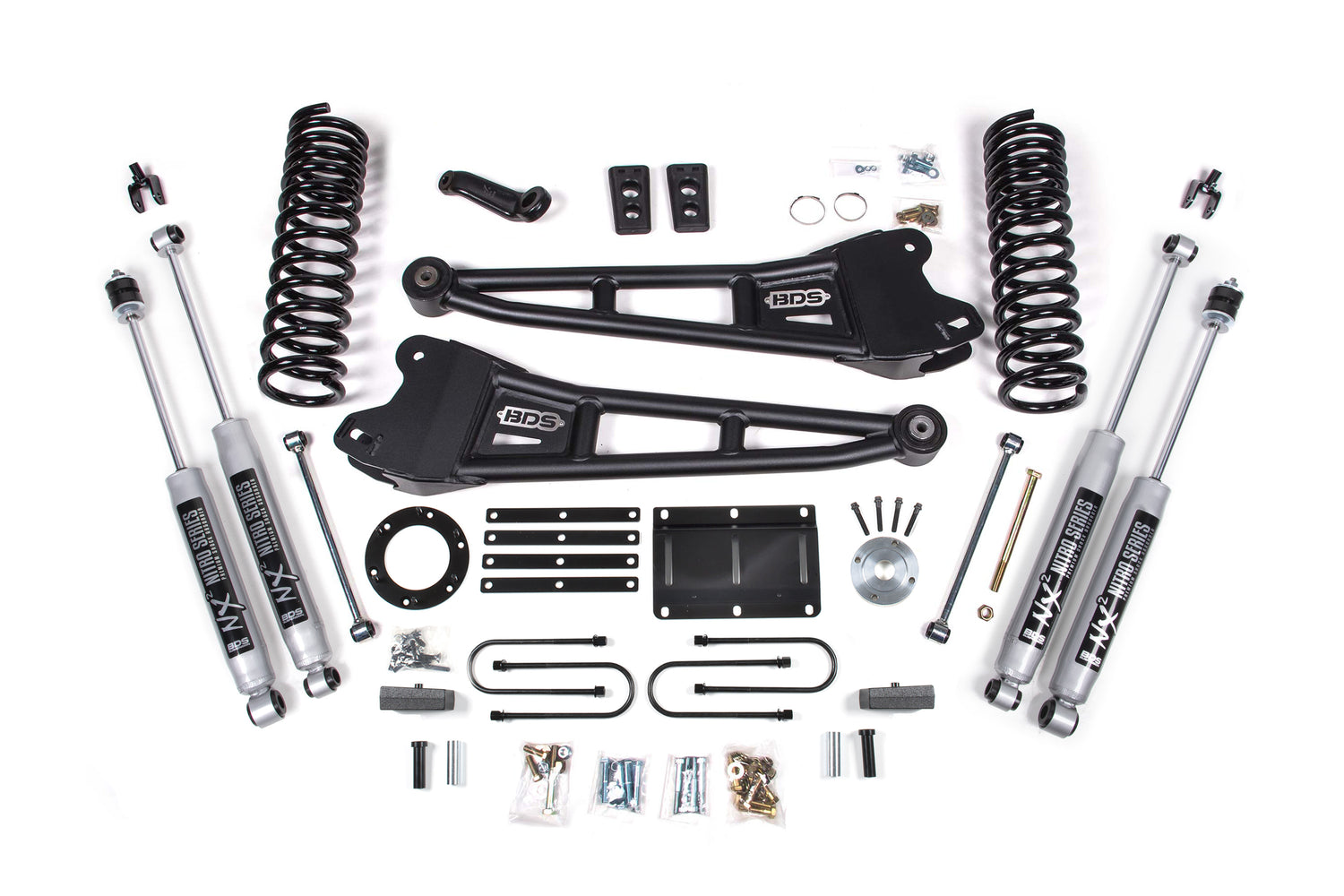

Includes

• BDS012516, Dodge 5 inch Rear Block Kit w/4 inch (UPC 658848612598)
• BDS012615, 2013-2018 Ram 2500/3500 4wd 6 inch Radius Arm Front Box Kit (UPC 711745611719)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122616, Ram T-Case Index - Gas - 6 Bolt (UPC 658848619702)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
