2013-2018 Ram HD 5.5" Lift Kit with FOX 2.0 Performance Shocks (BDS2105FS)

BDS 5.5" radius arm lift for the 2013-2018 Ram 3500 gas truck with clearance for up to 37" tires. Up front it includes gas-specific Pro-Ride coil springs, heavy duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear it uses a high-strength fabricated lift block, longer u-bolts, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 35x12.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/4.5

Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require it as well. The vehicle can be driven without the front driveshaft to an exhaust shop before reinstalling the driveshaft.
• The carrier bearing drop is necessary for models equipped with a two-piece rear drive shaft.
• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• DRW models fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits.

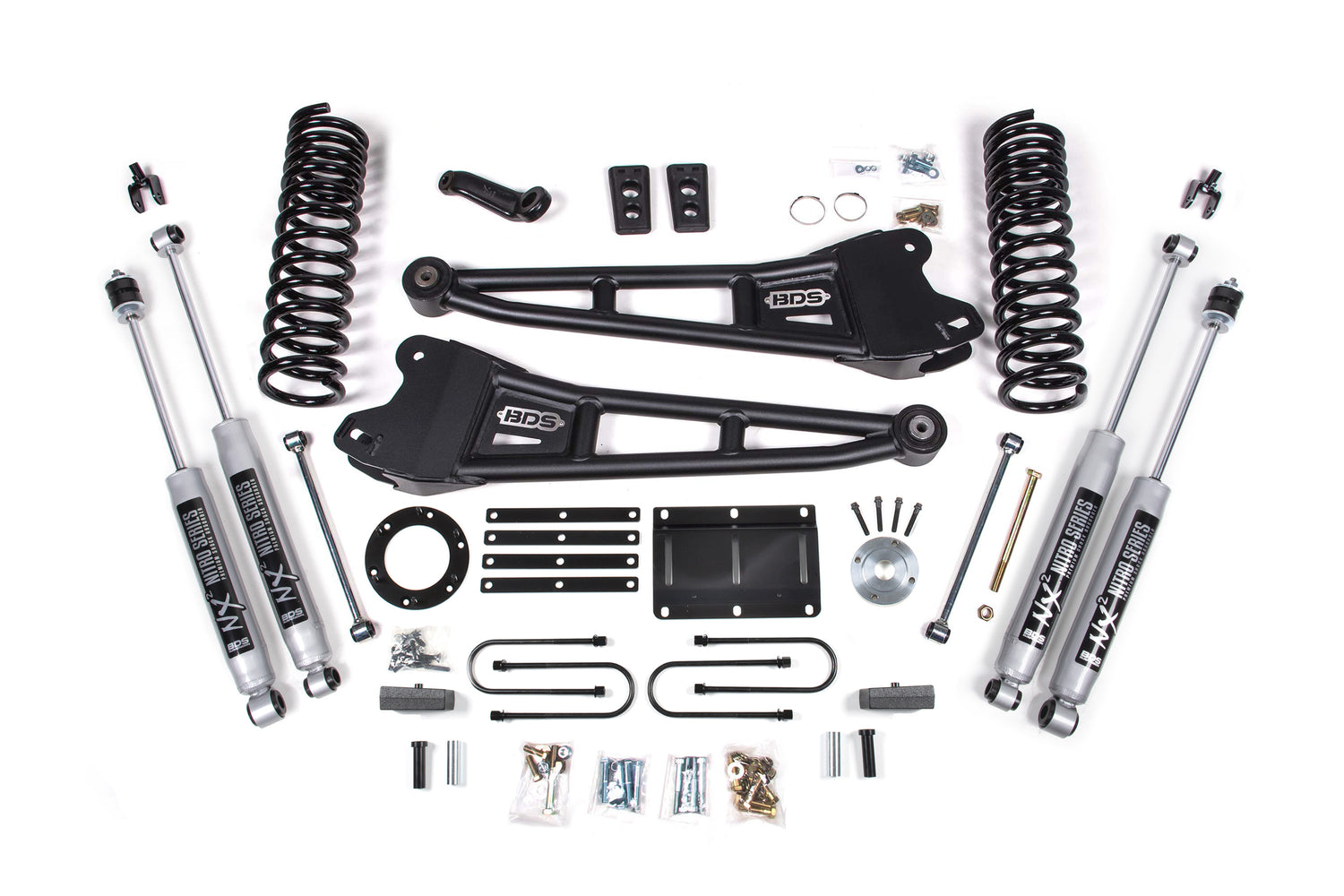

Includes

• BDS012516, Dodge 5 inch Rear Block Kit w/4 inch (UPC 658848612598)
• BDS012615, 2013-2018 Ram 2500/3500 4wd 6 inch Radius Arm Front Box Kit (UPC 711745611719)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122616, Ram T-Case Index - Gas - 6 Bolt (UPC 658848619702)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
