2013-2018 Ram HD 6" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1650H)

Built to outperform, BDS Suspension engineered this 6-inch lift kit with 4-link conversion for your 2013-2018 RAM 3500 diesel truck. It works only on trucks equipped with factory rear air ride. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

Features

• Heavy-duty 4-link improves strength, handling, and caster control
• Front high-strength progressive-rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 Nitro series gas shocks for improved ride and offroad performance

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 17x9
• Back Spacing: 5.625/5.625

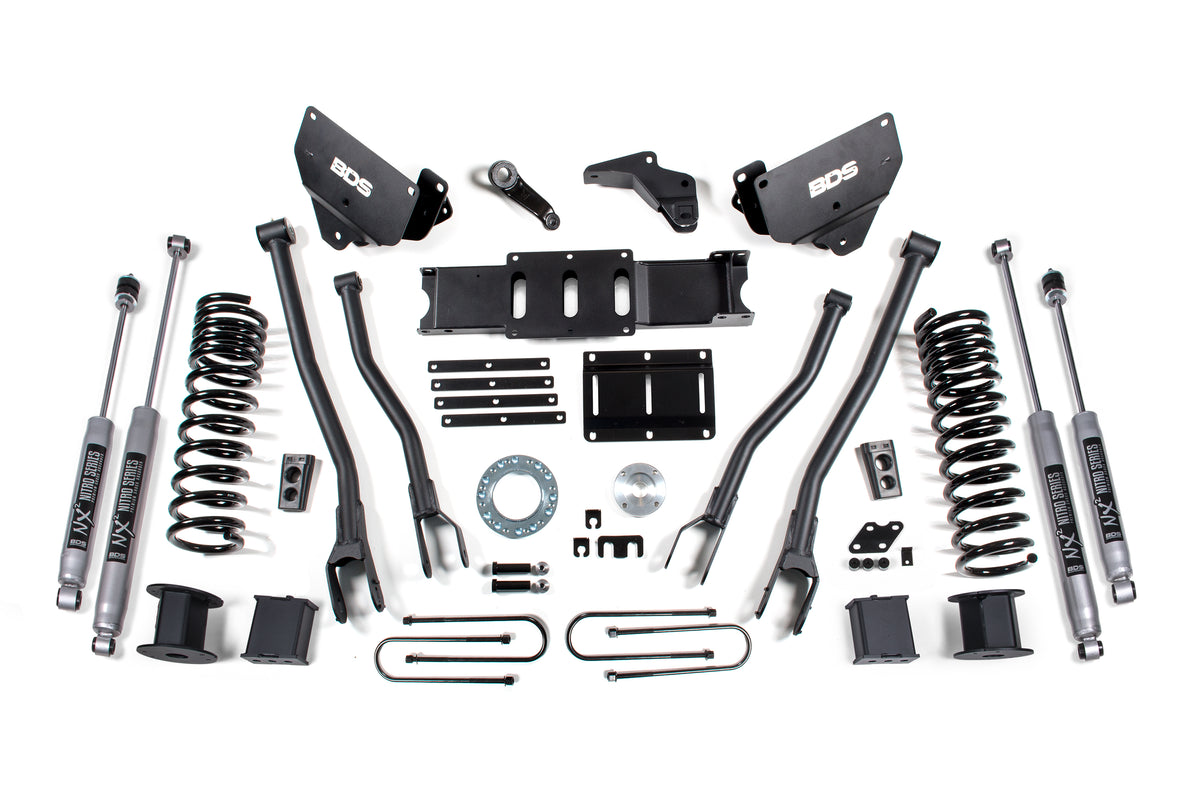

Includes

• BDS012403 - 2013-2018 Ram 3500 4-Link Box Kit (2 of 2) (UPC 658848612345)
• BDS012604 - 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1 of 2) (UPC 658848612703)
• BDS012618 - 2013-2018 Ram 3500 Auto Level Air Suspension 6 inch Rear (UPC 658848612789)
• BDS032602 - 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122813 - 13 3500 / 14 2500 Ram T-Case Index - 8 Bolt (UPC 658848619849)
• BDS85752 - Shock 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624), Qty 2
• BDS85769 - Shock 30.95 x 18.15 x 2-3/8 - EB1/EB1 (UPC 711745609761), Qty 2
