2013-2018 Ram HD 6" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1782H)

BDS Suspension built this 4-Link conversion lift kit to set your 2013-2018 diesel Ram 3500 up right with 6" of lift and clears up to 37" tires. It comes with everything to do the job: a bolt-on 4-link control arm conversion, progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction up front, a rear lift block, longer u-bolts out back, and a matched set of BDS NX2 Nitro shocks.

The 4-link conversion replaces the factory stamped-steel radius arms to optimize suspension geometry, adding strength and stability while limiting caster change through wheel travel.

Features

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch
• 5 Inch Block: Level to tail high appearance

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 17x9
• Back Spacing: 5.625

Notes

• The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
• Kits come standard with 6-Bolt indexing ring kit.

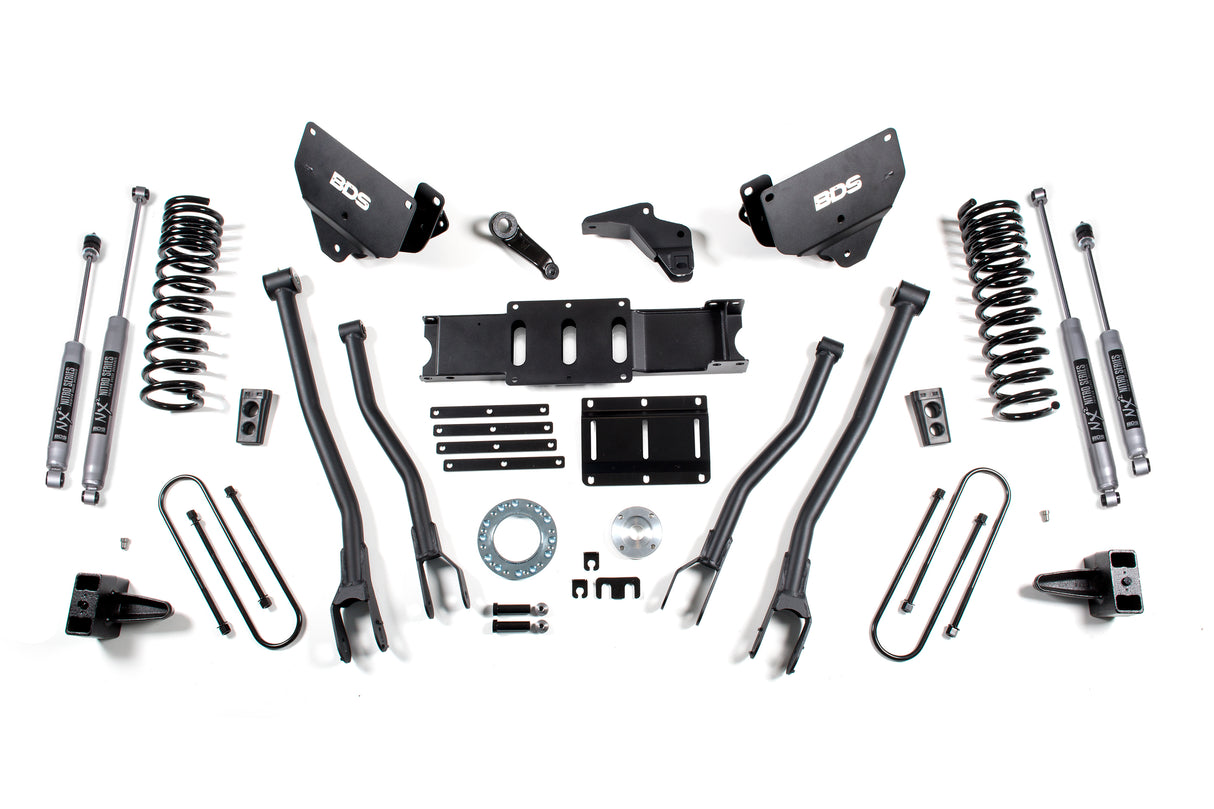

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012405, 03-up Dodge 3/4ton 4 Inch Rear (UPC 658848612352)
• BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) (UPC 658848612703)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
