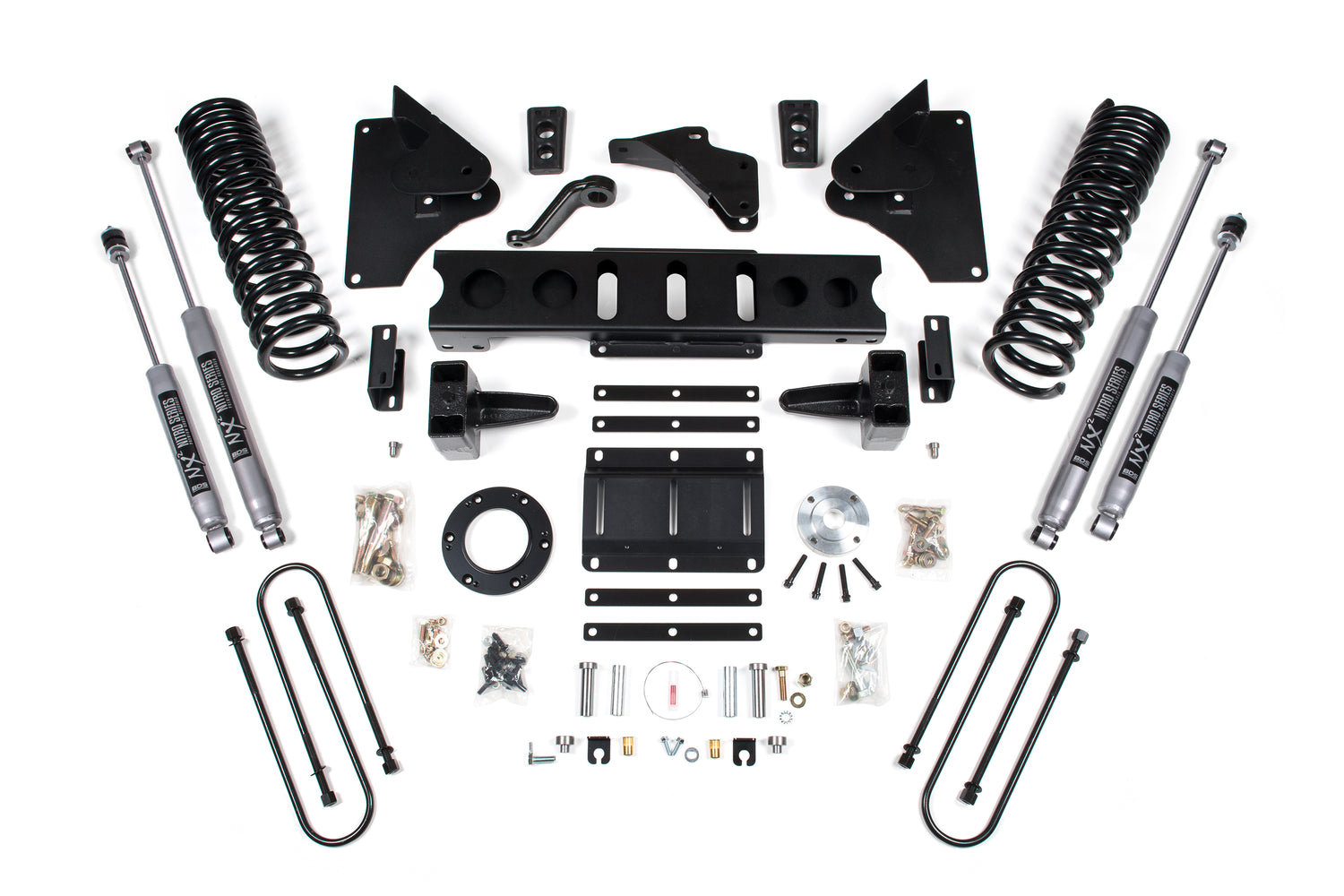

2013-2018 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS699FS)

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Kits come standard with 6-Bolt indexing ring kit.

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch
• 5 Inch Block: Level to tail high appearance

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/4.5

Notes

• The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
• Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.

Includes

• BDS012516, Dodge 5 inch Rear Block Kit w/4 inch (UPC 658848612598)
• BDS012610, 2013 Ram 3500 6 inch Front Box Kit (UPC 658848612727)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
