2013-2018 Ram HD 8" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1790H)

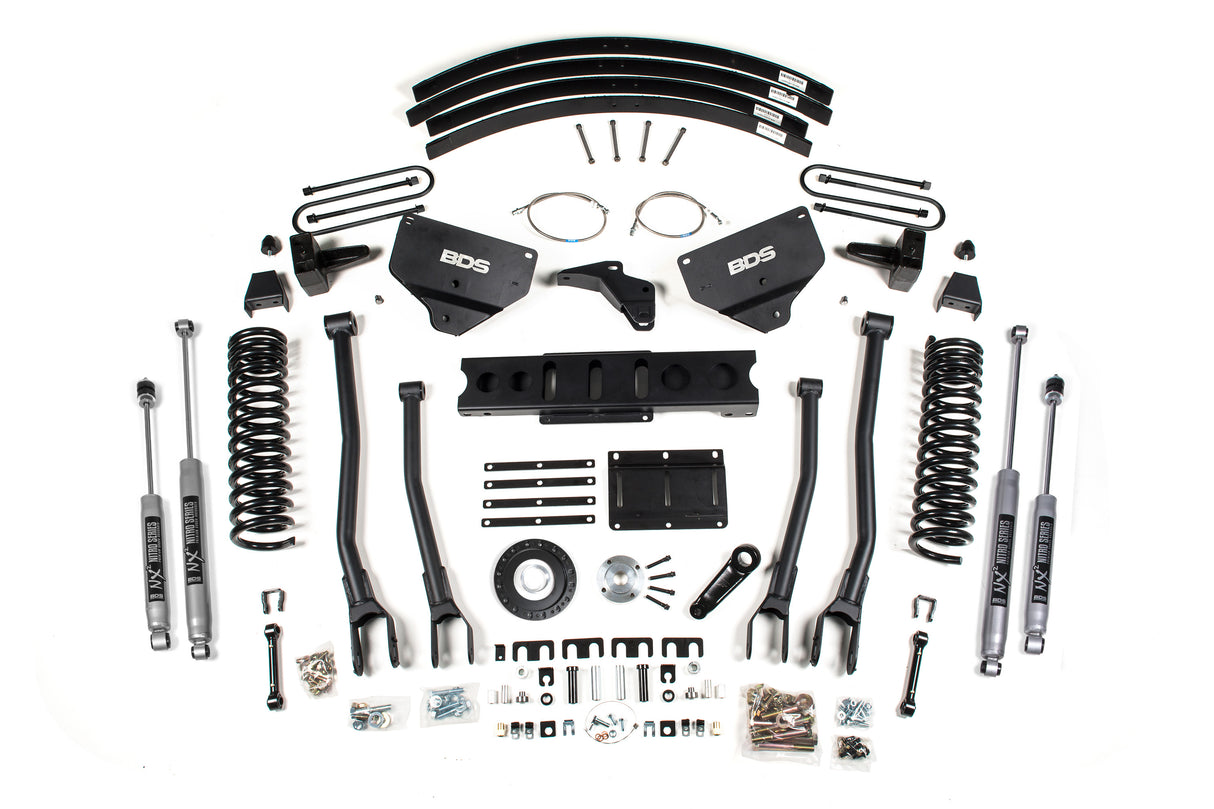

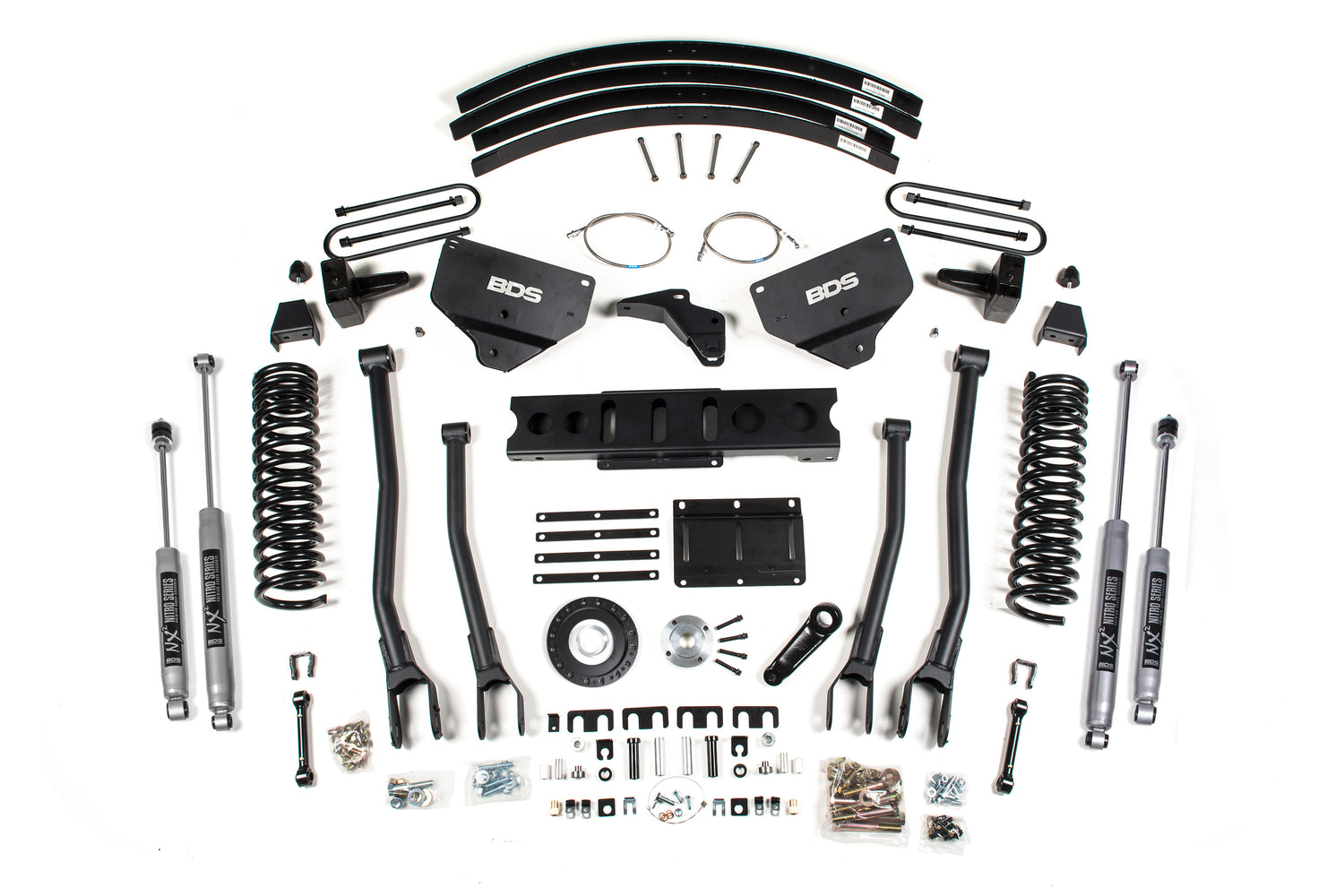

BDS Suspension built this 4-Link conversion lift kit to set your 2013-2018 diesel Ram 3500 up right with 8" of lift and clears up to 40" tires. It comes with everything to do the job: a bolt-on 4-link control arm conversion, progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction up front, a rear lift block with add-a-leaf out back, a transmission crossmember and t-case indexing ring to run the factory front driveshaft, and a matched set of BDS NX2 Nitro shocks.

The 4-link conversion replaces the factory stamped-steel radius arms to optimize suspension geometry, adding strength and stability while limiting caster change through wheel travel.

Features

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

Notes

• Carrier bearing drop kit will be required for 2-piece rear drive shaft
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

Includes

• BDS002609, Ram Rear Leaf Spring (UPC 658848611300)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012609, 2013-14 Ram 3500 Rear Box Kit (UPC 658848612710)
• BDS012810, 2013-18 Ram 3500 8in Front Box Kit (UPC 658848612895)
• BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only) (UPC 658848616459)
• BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt (UPC 658848619849)
• BDS85754, Shock - 29.43 x 17.24 x 2-3/8 - S50/EB2 (UPC 711745609631)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
