2013-2018 Ram HD 8" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1625FS)

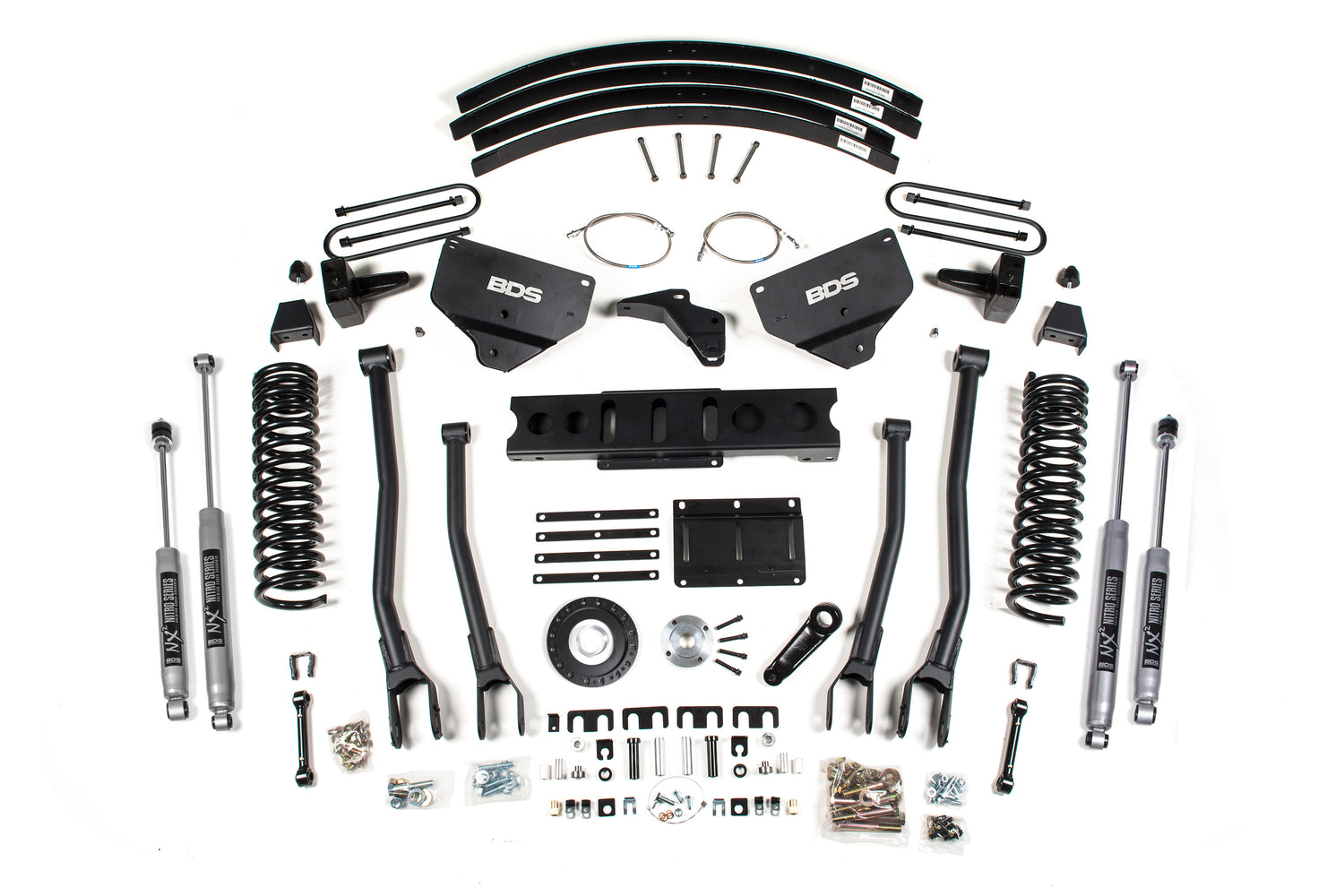

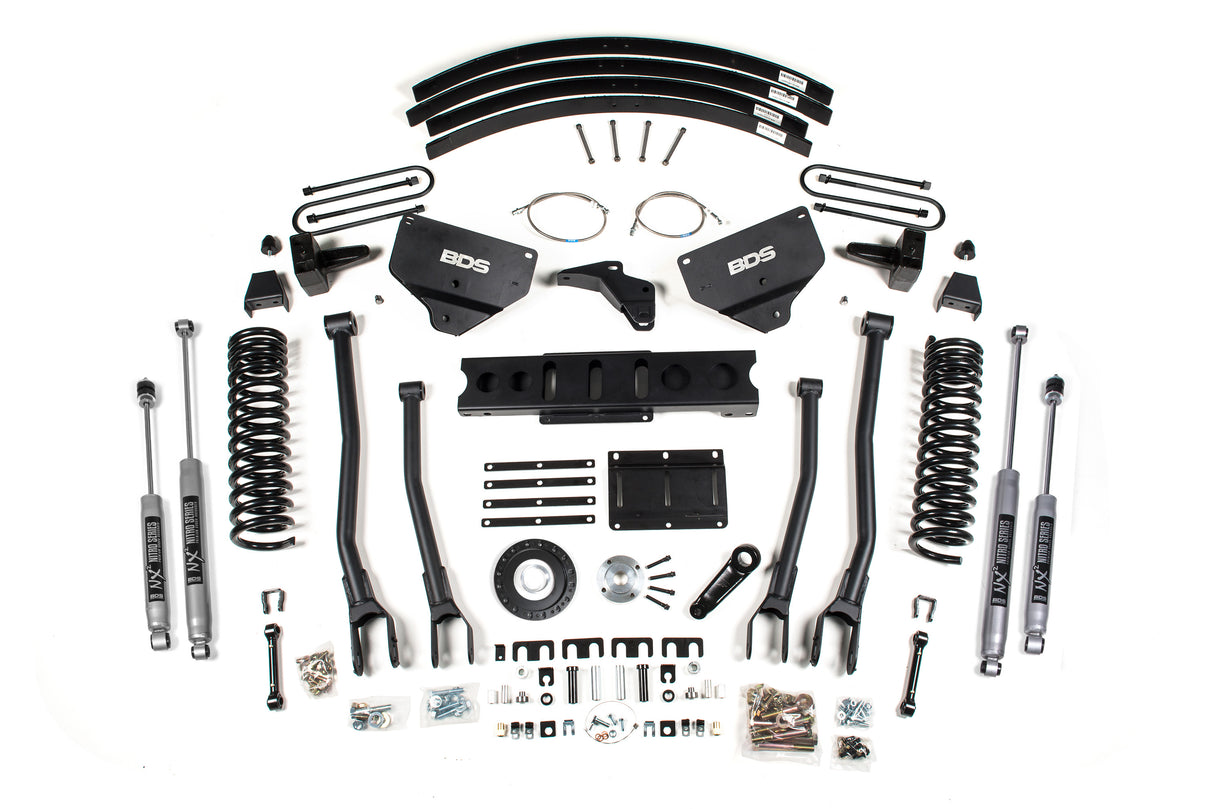

Go big with this BDS 8" lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel, with clearance for up to 40" tires. Up front it includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stops, stainless steel brake lines, and precision tuned NX2 or FOX 2.0 shocks. The 4-link converts the factory stamped steel radius arms to correct axle positioning and limit caster change through wheel travel. At this height the transfer case is indexed using a supplied indexing ring and new transmission crossmember. The rear uses a block and add-a-leaf combo or optional full BDS Glide-Ride leaf springs, with new u-bolts, brake line brackets, and matching shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• 5" rear cast iron block with dual add-a-leaf nets a level stance and correct pinion angles
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and offroad performance
• FOX 2.0 shock: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, application-specific valving, clear anodized finish
• Kits come standard with 6-Bolt indexing ring kit

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

Notes

• Carrier bearing drop kit will be required for 2-piece rear drive shaft.
• Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012514, 2013-15 Ram 3500 5in Block Kit (UPC 658848612581)
• BDS012810, 2013-18 Ram 3500 8in Front Box Kit (UPC 658848612895)
• BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only) (UPC 658848616459)
• BDS113228, 2013-2024 Ram 3500 Dual Add-A-Leaf (UPC 658848618743)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX98224754, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
