2013-2018 Ram 3500 2.5" Lift Pathfinder Leveling System (Diesel) (CS-DLVL-PF-13-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$4,922.31 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Torsion Sway Bar

Optional

The 2.5" leveling system does not require sway bar geometry correction, but the Torsion Sway Bar is a major ride-quality upgrade. It lets the front suspension move freely without giving up control. Keep the factory bar only if you need its stiff rate (snow plow, in-bed camper, constant max-payload hauling).

Radius Arm Drop Bracket

Optional

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Leaf Spring Shackle

Optional

Much of the jarring 3500 rear ride comes from the factory vulcanized bushings in the leaf pack and shackle. The Carli shackle uses 1/4" American cold-rolled steel, a mid-length gusset to eliminate deflection, and serviceable bushings for a far better ride than the factory bind.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

High Mount Steering Stabilizer

Optional

Fabricated Radius Arms

Optional

Icing on the cake. Massive strength upgrade over the factory arms with internal X-bracing, 1/4" boxed steel construction, 17-4 stainless serviceable spherical joints, and 10" quad-wrap limit straps that protect your front shocks.

Front Diff Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional
Part Specs
Warranty
Description

Carli Pathfinder Leveling System for Ram HD Diesel. Features Carli SPEC 2.5" diameter shocks front and rear - King-level performance at a lower price point. The extra 0.5" shock diameter over the Backcountry provides increased control, making this the perfect middle ground between Backcountry and King-equipped systems.

Features
  • 2.5" front lift - level stance
  • SPEC 2.5" shocks - King-level performance
  • Maintains factory towing/payload

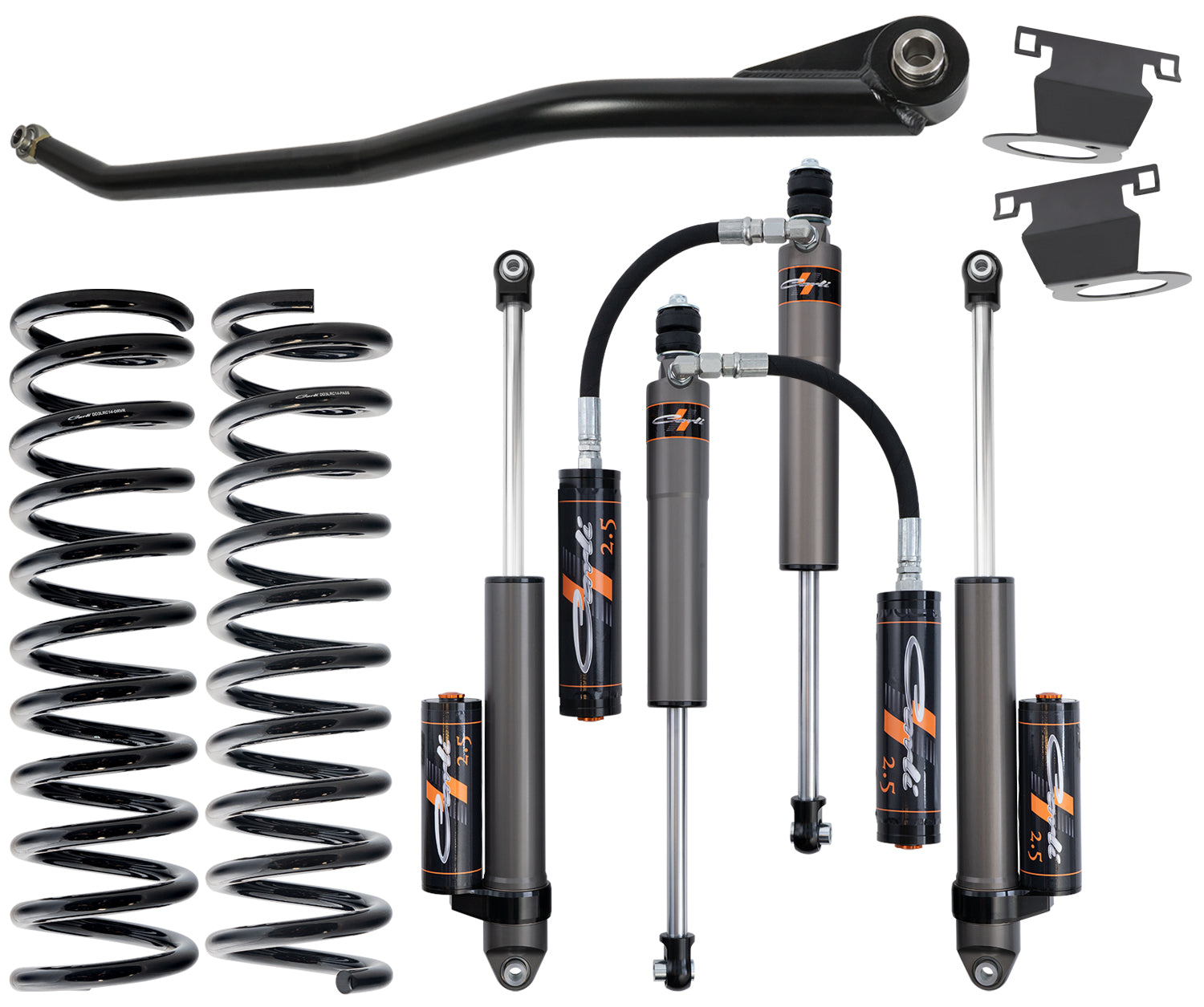

Includes

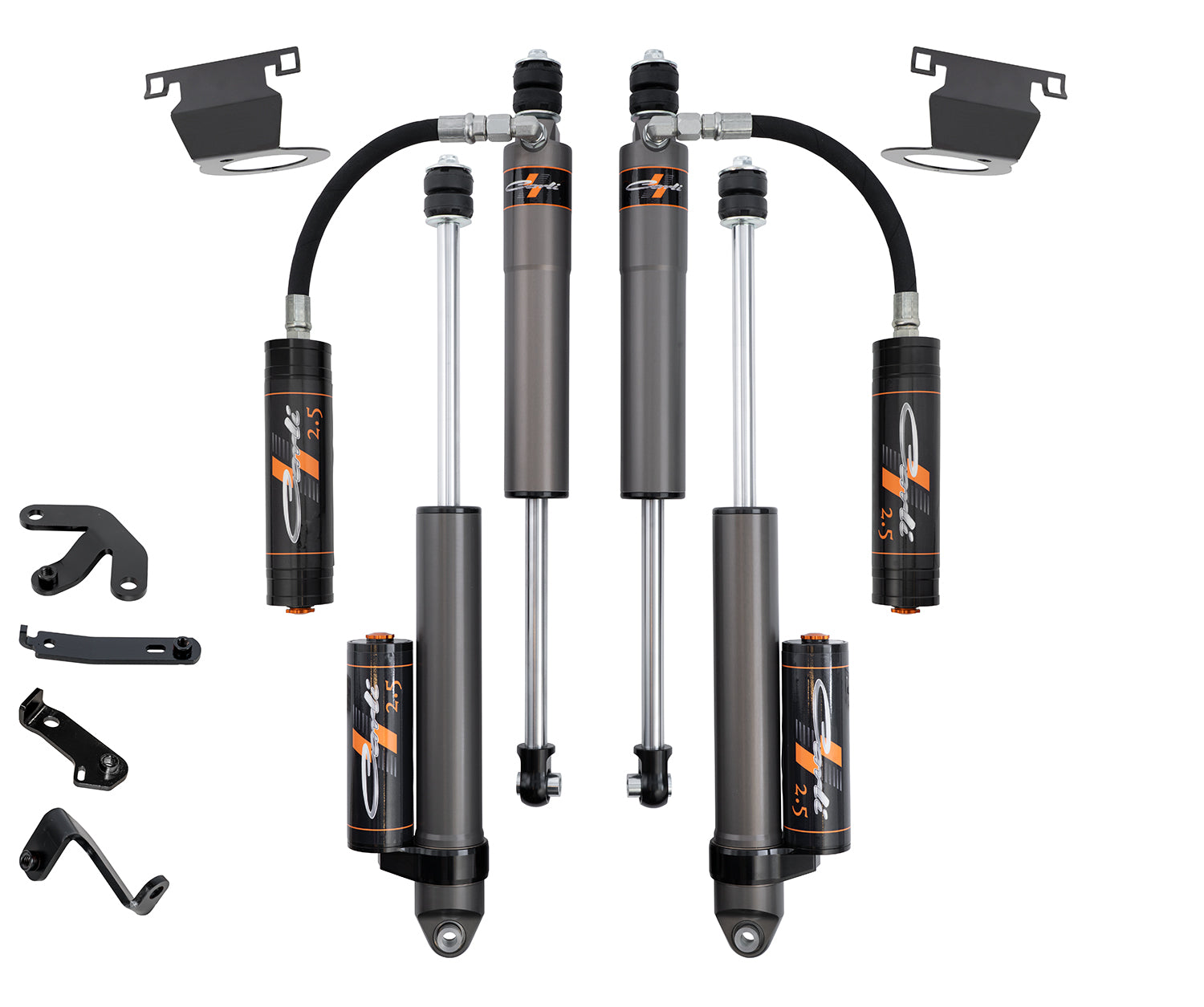

  • Front Carli SPEC 2.5 Shocks
  • Rear Carli SPEC 2.5 Shocks

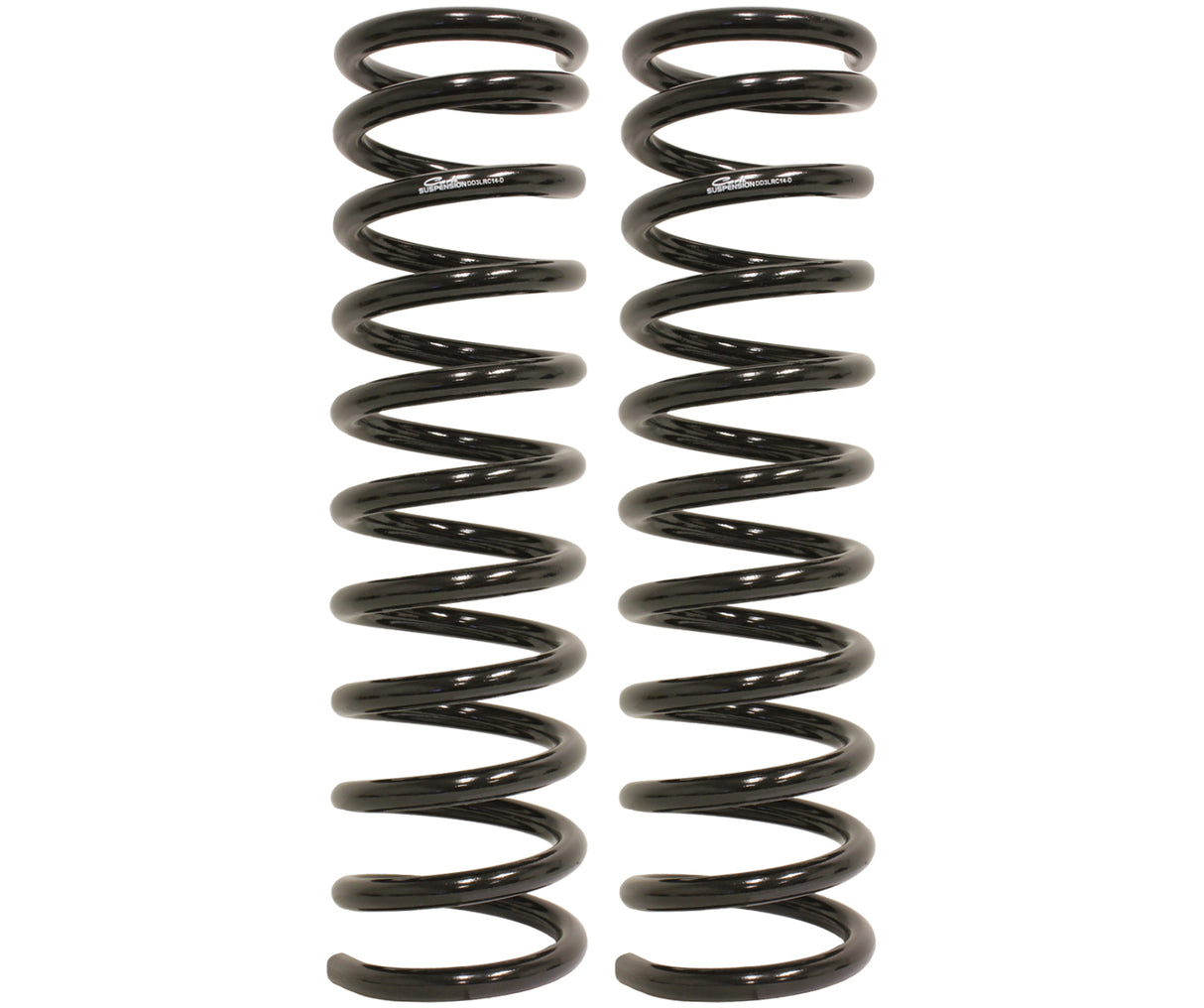

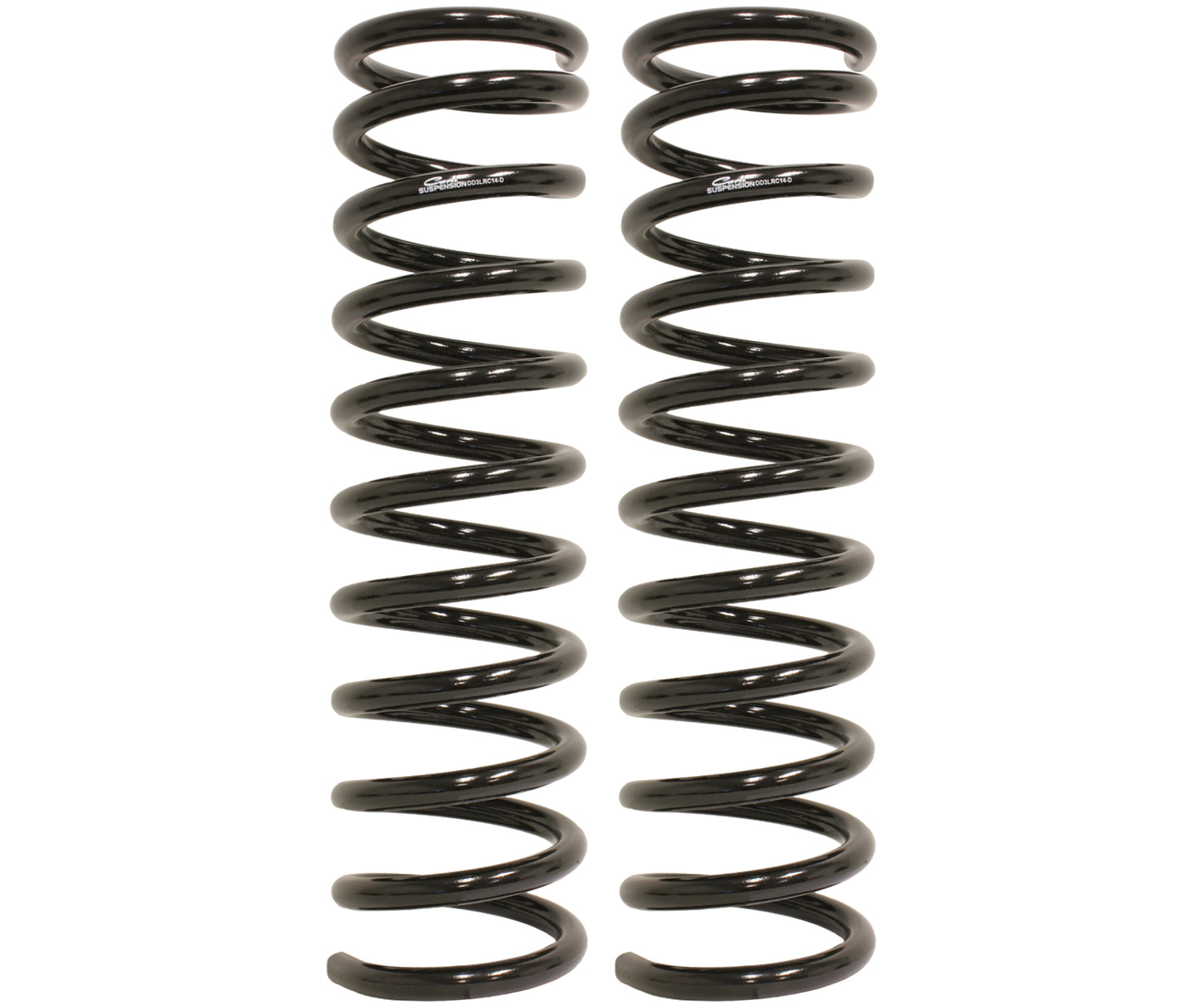

  • Linear Rate Coil Springs

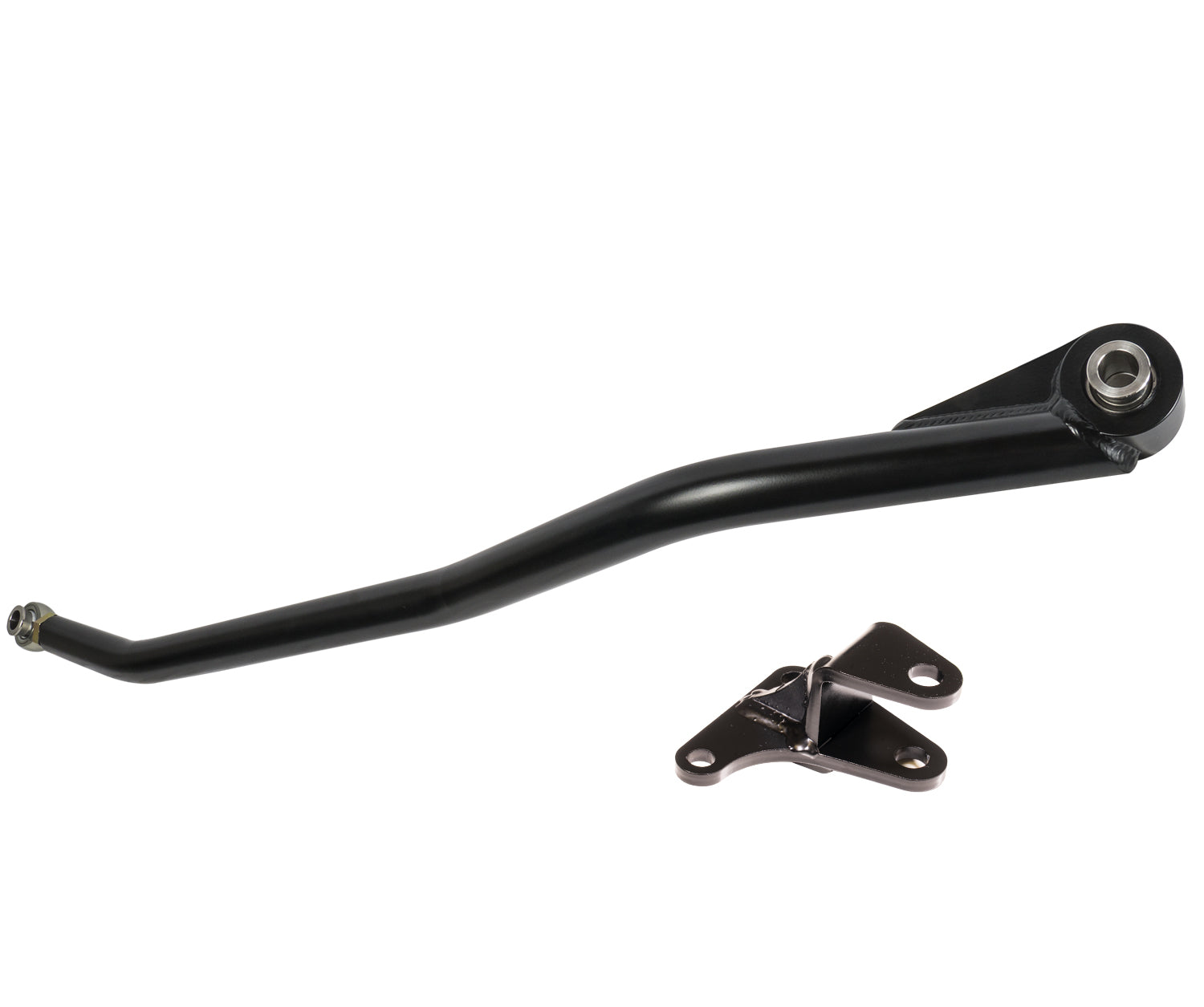

  • Adjustable Track Bar
  • Reservoir Mounts
Notes
  • Does not work with rear auto-level air suspension.
  • This system is tuned for the 3500s equipped with rear leaf springs.
  • It will install on the 3500 trucks equipped with the factory auto-leveling air assist but the tuning is NOT refined to the platform.
  • We recommend you measure the truck as it often takes less than 2.5" of front lift to level the Air-Assist Rams.

Warranty
Limited 1 (One) Year Warranty
