2013-2018 Ram HD Transmission Pan Ecodiesel 1500 Brush (228053010)

Description

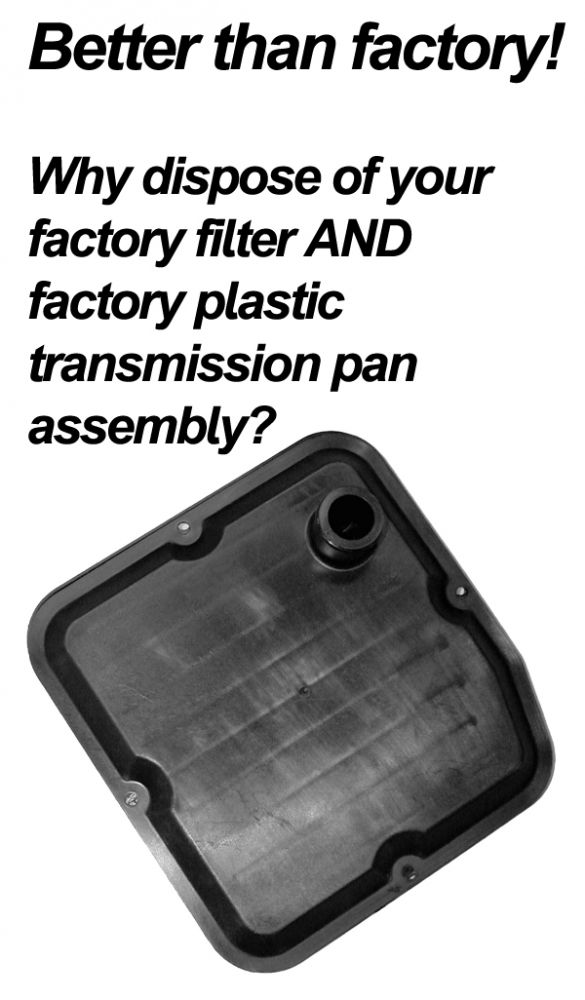

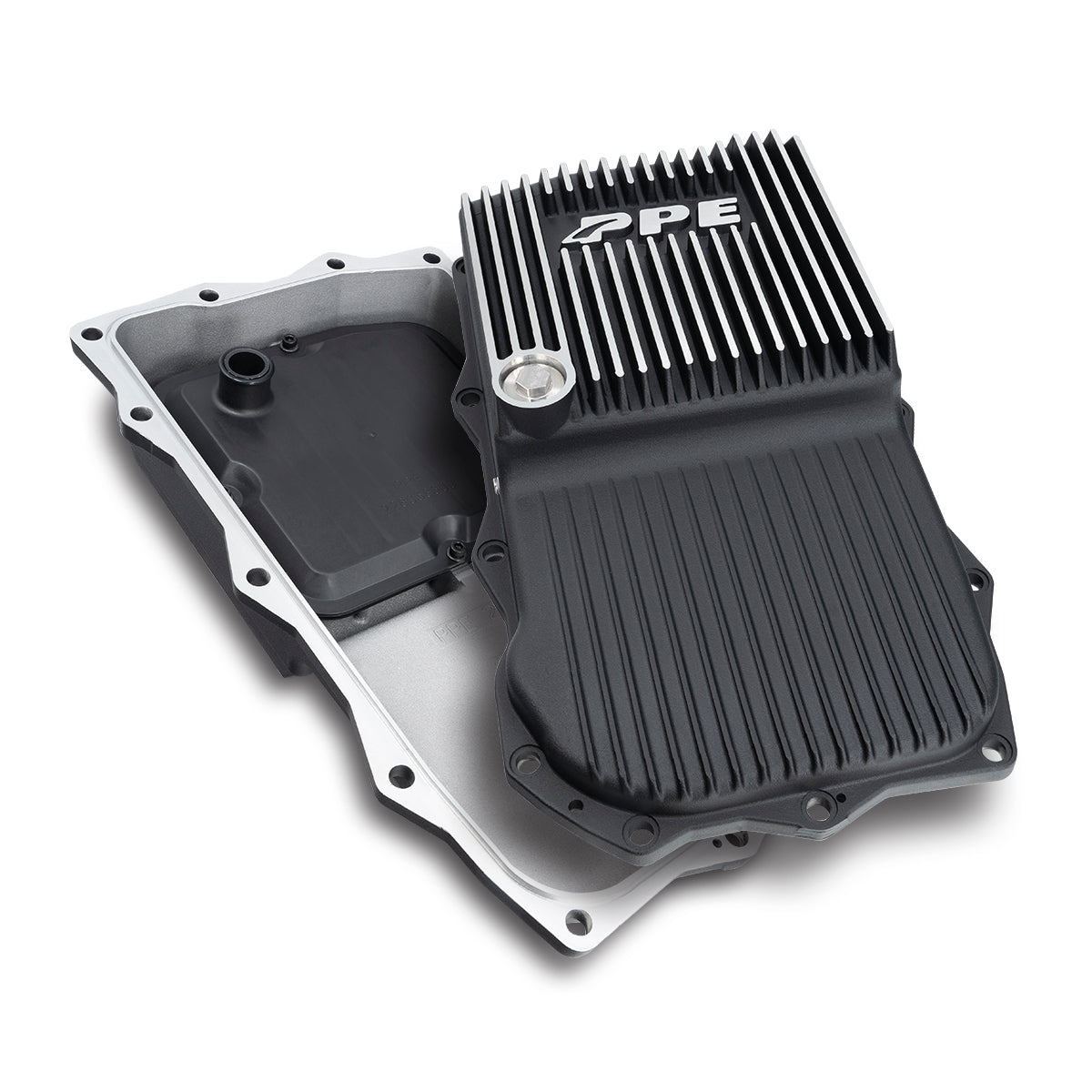

Why dispose of your factory filter And factory plastic transmission pan assembly? PPE has engineered an exclusive removable and replaceable oil filter. That means unlike the factory part, theres no need to discard the filter pan assembly every time you service your trucks transmission. This eliminates the high cost of regularly replacing the factory filter. Now simply remove, replace filter and reinstall.

With an increased fluid capacity of more than two quarts, which increases the thermal stamina, your transmission will benefit with lower temperatures and longer service life. All PPEs Heavy-Duty Transmission Pans are cast from high-strength aluminum for optimal heat dissipation. This pan features internal heat sinks and external cooling fins. These cooling fins, combined with the aluminum construction, promote reduced transmission oil temperatures. Cooler oil lubricates better which helps increase transmission service life and reduce service costs.

The PPE Heavy-Duty Aluminum Transmission Pan also features a high-powered Neodymium magnet equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

Covered by a lifetime warranty.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy - a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 2 quarts for higher thermal capacity

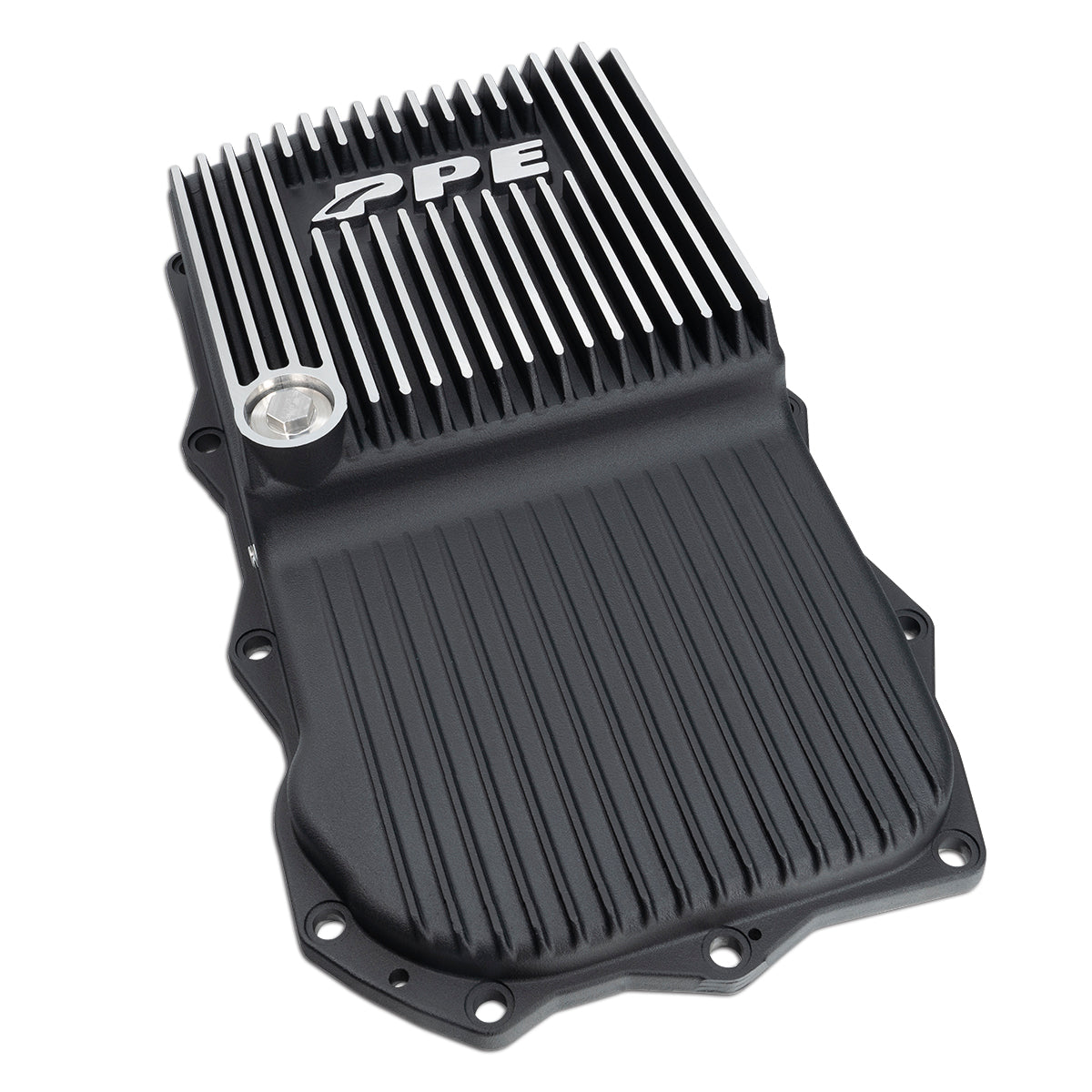

• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Half-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure

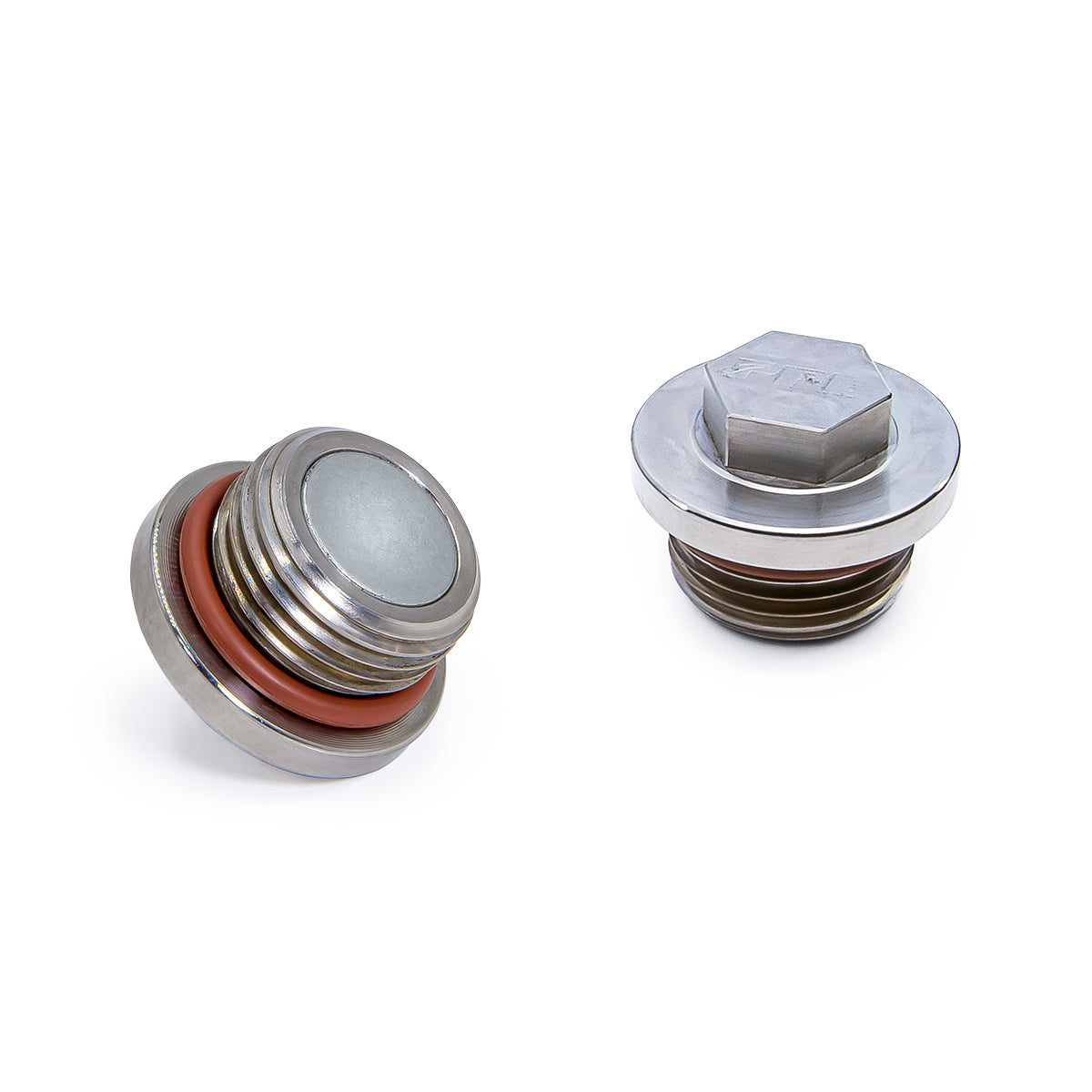

• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Integrated filter supports ensure proper filter placement
• Compatible with OEM gasket and steel collars
• New transmission filter included (228058600)

Notes

• PPE SKU 228053000 and 228053400 are both compatible with the ZF 8-speed transmissions with a plastic pan, and both work with the factory rubber gasket and steel collars for a precise fitment.
• The two pans have different depths and capacity gains: 228053000 adds 2.0 quarts for maximum thermal capacity, while 228053400 adds 1.0 quart for better clearances.
• The ZF 8-speed is seen on a wide range of vehicles including certain BMW/Land Rover/Jaguar models; this pan is compatible with many 2013-2018 BMW 2/3/4/5/6/7 series and X3/X4/X5/X6 SUVs.
