2014-2018 GM 1500 6" Lift Kit with FOX 2.0 Performance Shocks (BDS718FS)

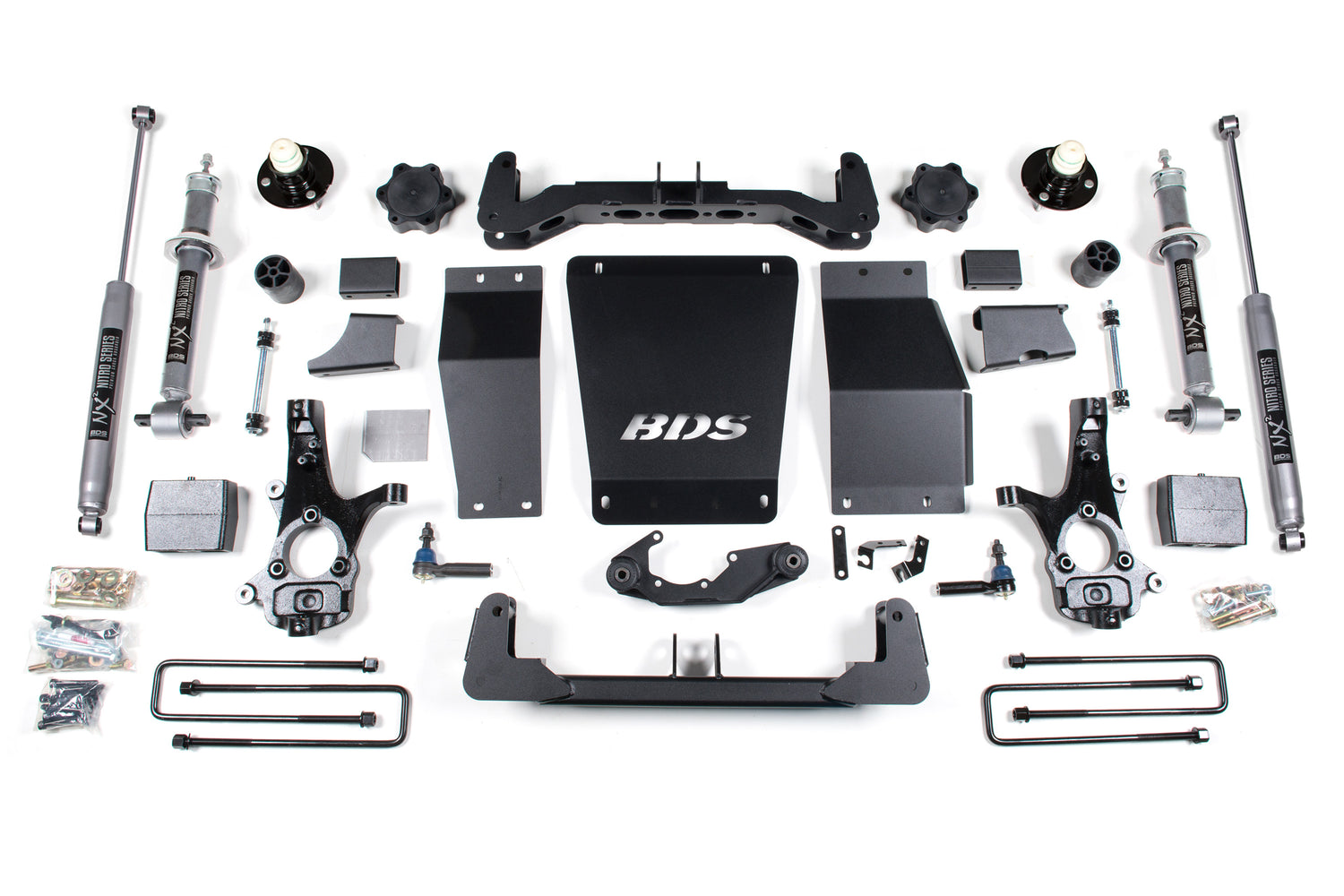

This BDS 6" lift kit fits the 2014-2018 Chevy Silverado and GMC Sierra 1500, with clearance for up to 35" tires. It uses BDS's high-clearance design with full-length replacement strut shocks, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets and heavy duty skid plates for offroad protection. Steering geometry is corrected at the new ride height with CNC-machined ductile iron knuckles that work with factory tie rod ends for proper ESC function, along with sway bar drops, bump stop extensions, brake line brackets and CV spacers. In the rear, choose a replacement lift block or full Glide-Ride leaf spring option, plus new u-bolts and FOX 2.0 Performance shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2" Impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Strut compressor required.
• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
• If choosing the 5" rear block option, add-a-leaf #111209 is recommended for a more level/tail high stance on crew cab models.
• All wheel drive models require driveline modification.
• GM produced several knuckle/control arm configurations in 2014-2017 trucks. Cast Steel control arm equipped models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm equipped models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.

Includes

• BDS001559, GM 1/2 ton 5.5in Rear Spring (UPC 658848611218)
• BDS011557, 2014 Chevy 1500 5in Rear Box Kit (UPC 658848611966)
• BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped (UPC 658848615025)
• BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2) (UPC 658848615032)
• BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2) (UPC 658848615049)
• BDS98166, 2014-2018 Chevy 1500 6 inch NX2 Strut Box Kit (UPC 711745610392)
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
