2014-2018 GM 1500 8" Lift Kit with FOX 2.0 Performance Shocks (BDS744FS)

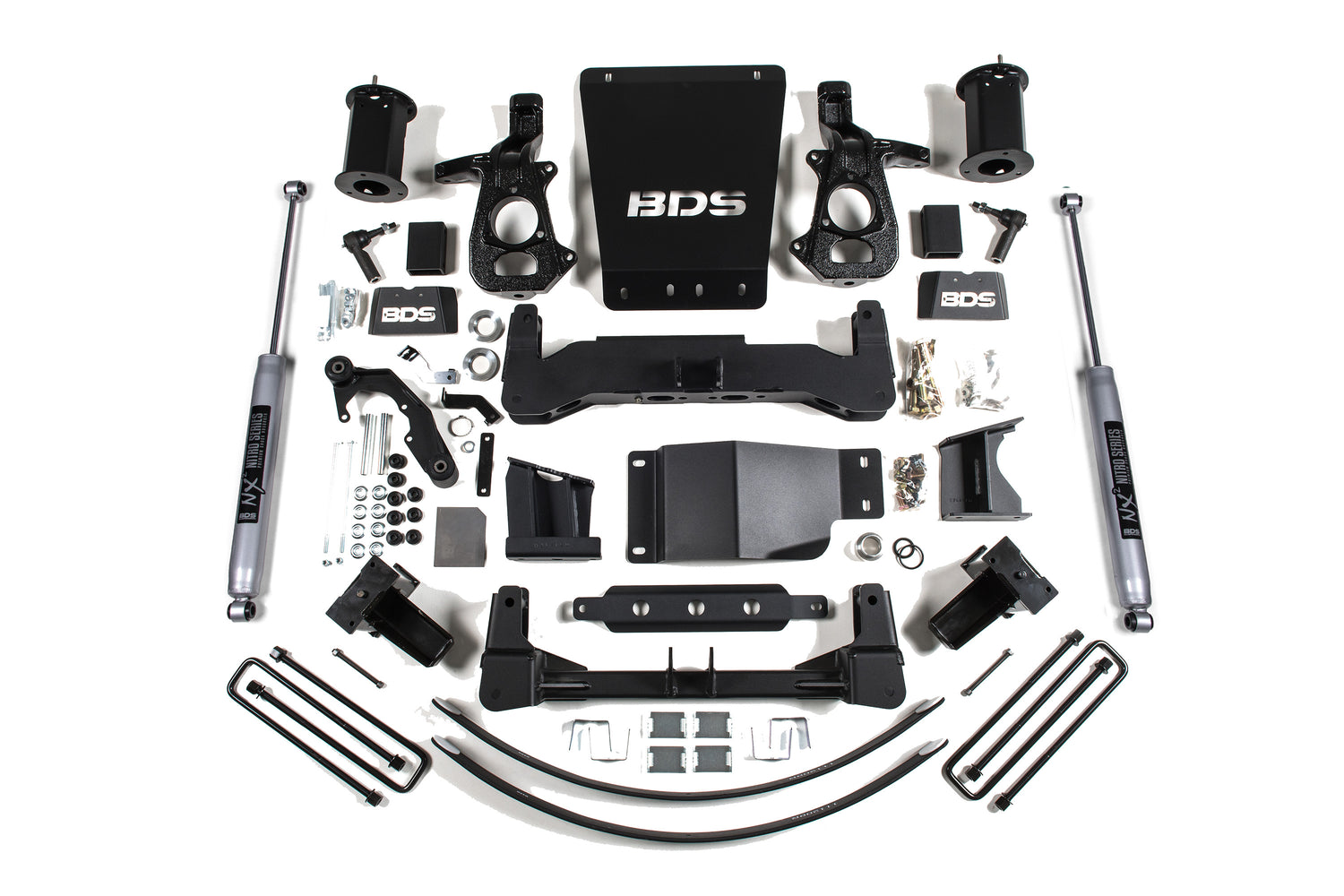

Go big with this BDS 8" lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500, with clearance for up to 35" tires. The high-clearance design improves ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front it uses top mount strut spacers, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles, sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options, new u-bolts, brake line brackets, and NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9, 22x10
• Back Spacing: 5.5/5.5

Notes

• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Cast Steel control arm equipped models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm equipped models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference.
• All wheel drive models require drive line modification.

Includes

• BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit (UPC 658848614790)
• BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2 (UPC 658848615261)
• BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2 (UPC 658848615278)
• BDS021804, 14-up Chevy 1500 8 inch Strut Spacer Box Kit (UPC 658848615285)
• BDS021810, 14-up Chevy 1500 Knuckle-DRV-cast Steel (UPC 658848615292)
• BDS021811, 14-up Chevy 1500 Knuckle-PASS-cast Steel (UPC 658848615308)
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
