2014-2018 GM 1500 8" Lift Kit with FOX 2.0 Performance Shocks (BDS743FS)

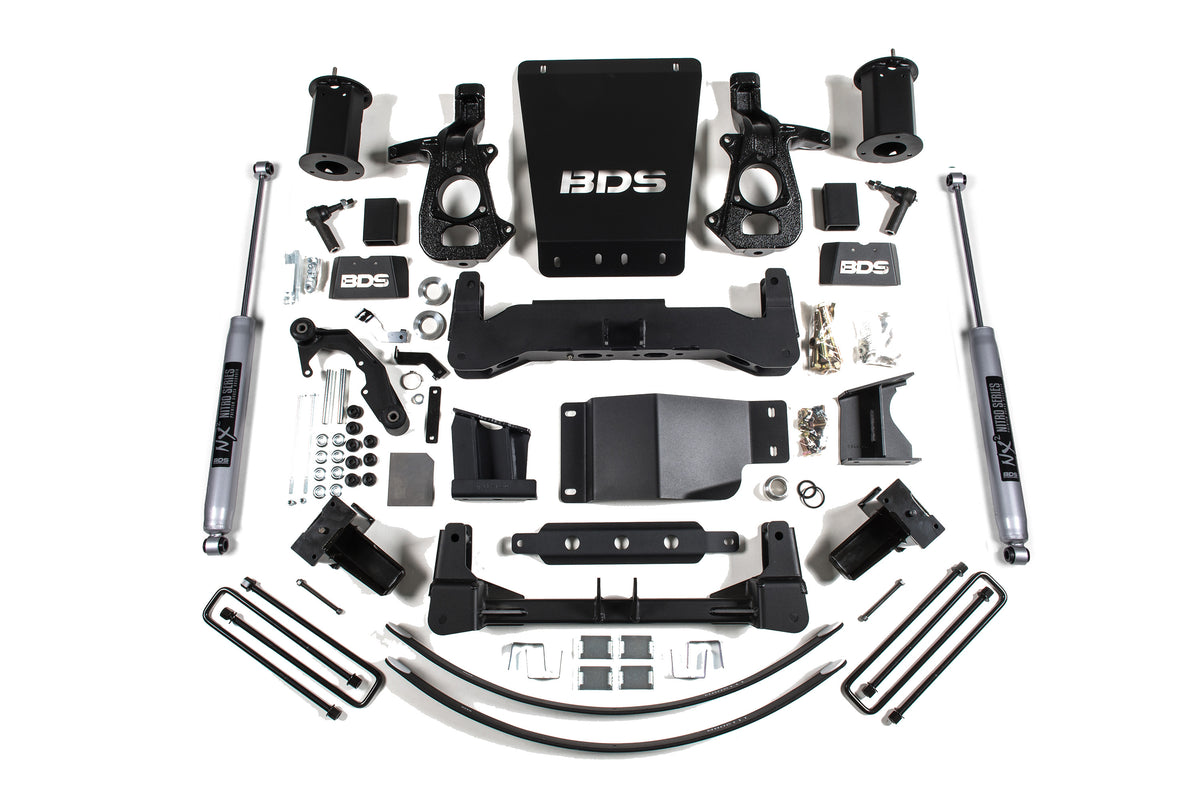

Go big with this BDS 8" lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500, with clearance for up to 35" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are top-mount strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear offers a lift block / add-a-leaf combo or full Glide-Ride leaf spring options, new u-bolts, brake line brackets and NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2" impact extruded aluminum body, IFP monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9, 22x10
• Back Spacing: 5.5/5.5

Notes

• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections; reference the notes and images to determine the correct control arm selection. Cast steel models require the Cast Steel Control Arm kit; stamped steel and aluminum models require the Aluminum Control Arm kit.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
• All-wheel-drive models require driveline modification.

Includes

• BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit (UPC 658848614790)
• BDS021800, 14-up Chevy 1500 Knuckle-DRV-stamp/alum (UPC 658848615247)
• BDS021801, 14-up Chevy 1500 Knuckle-PASS-stamp/alum (UPC 658848615254)
• BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2 (UPC 658848615261)
• BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2 (UPC 658848615278)
• BDS021804, 14-up Chevy 1500 8 inch Strut Spacer Box Kit (UPC 658848615285)
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
