2014-2018 GM 1500 8" Lift Kit with NX2 Nitro Shocks (BDS743H)

This BDS 8" lift kit goes big on your 2014-2018 Chevy Silverado / GMC Sierra 1500, with clearance for up to 35" tires. Up front it uses top-mount strut spacers, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates and CNC-machined ductile iron steering knuckles, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear offers a replacement lift block / add-a-leaf combo or full Glide-Ride leaf spring options, new u-bolts and brake line brackets. This kit ships with NX2 Nitro shocks: nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9, 22x10
• Back Spacing: 5.5/5.5

Notes

• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• GM produced these trucks with several knuckle/control arm configurations. Cast Steel control arm models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference.
• All wheel drive models require driveline modification.

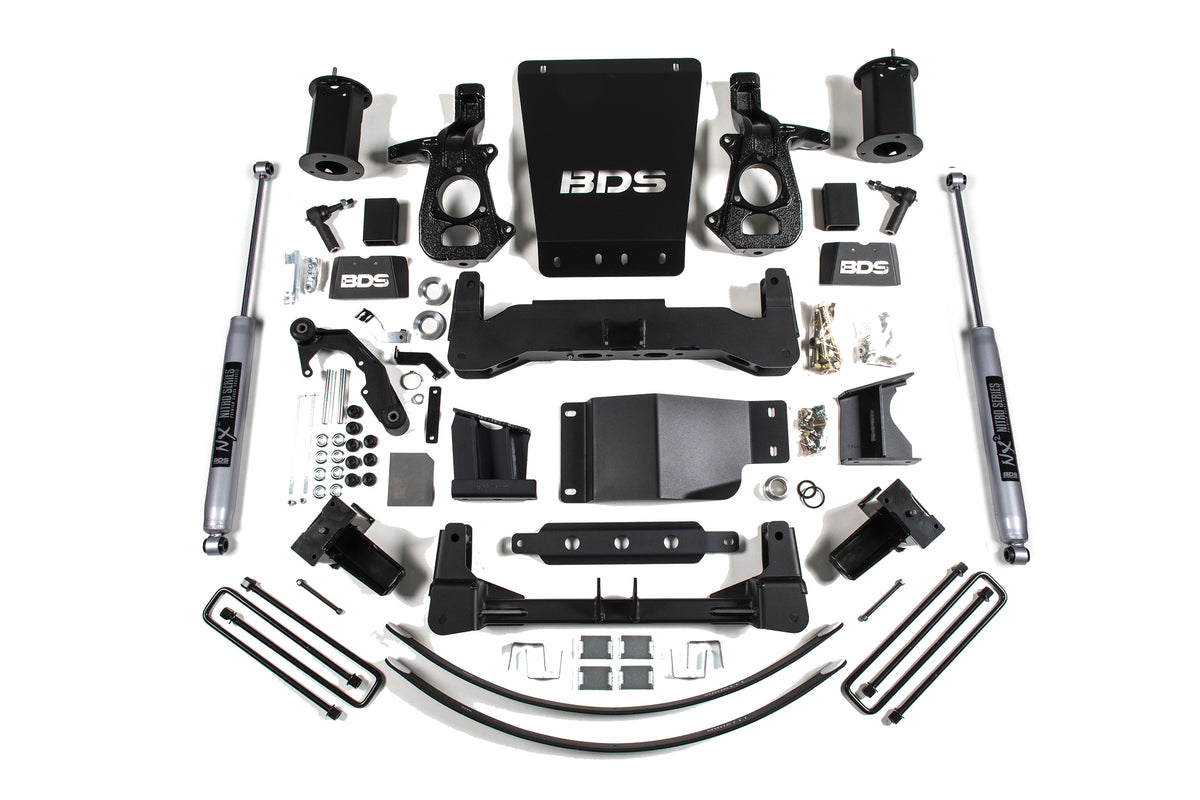

Includes

• BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit (UPC 658848614790)
• BDS021800, 14-up Chevy 1500 Knuckle-DRV-stamp/alum (UPC 658848615247)
• BDS021801, 14-up Chevy 1500 Knuckle-PASS-stamp/alum (UPC 658848615254)
• BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2 (UPC 658848615261)
• BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2 (UPC 658848615278)
• BDS021804, 14-up Chevy 1500 8 inch Strut Spacer Box Kit (UPC 658848615285)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
