2014-2018 GM 1500 8" Lift Kit with FOX 2.5 Performance Shocks (BDS744FDSC)

Go big with the BDS 8" lift kit for your 2014-2018 Chevy Silverado / GMC Sierra 1500, with clearance for up to 35" tires. Built on BDS's high-clearance design, the front uses proprietary FOX 2.5 coil-over shocks, high-arched 1/4" thick steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles to correct steering geometry, along with sway bar drops, bump stop extensions, brake line brackets, and CV spacers. The rear offers a lift block / add-a-leaf combo or full Glide-Ride leaf spring options with new u-bolts, brake line brackets, and NX2 Nitro or FOX 2.0 Performance shocks.

The FOX 2.5 coil-overs include a remote reservoir for added fluid capacity and cooling, plus Dual Speed Compression adjustment to tune high-speed and low-speed damping for any terrain.

Features

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9, 22x10
• Back Spacing: 5.5/5.5

Notes

• GM produces several knuckle/control arm configurations in 2014-2018 trucks. Cast steel control arm models require the Cast Steel Control Arm kit; stamped steel and aluminum control arm models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering

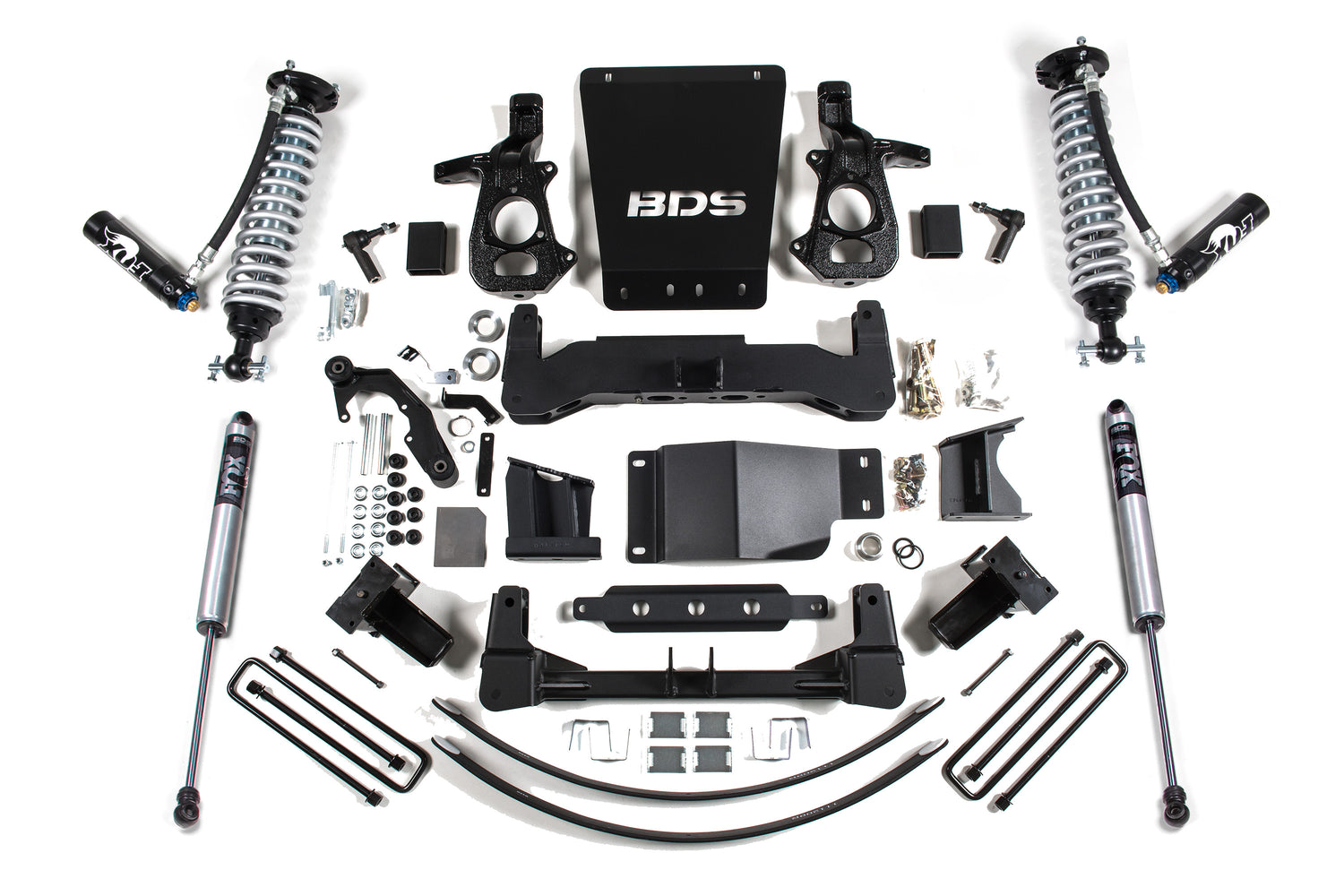

Includes

• BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit (UPC 658848614790)
• BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2 (UPC 658848615261)
• BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2 (UPC 658848615278)
• BDS021810, 14-up Chevy 1500 Knuckle-DRV-cast Steel (UPC 658848615292)
• BDS021811, 14-up Chevy 1500 Knuckle-PASS-cast Steel (UPC 658848615308)
• FOX88406227, 07-up Chevy 1500 8 inch Front Coilover Kit - Dual Speed Compression Adjust Option
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
