2014-2018 GM 1500 9" Lift Kit w/ Aluminum Upper Control Arms and Bilstein Shocks (44-3490)

ReadyLIFT's new 9-inch big lift kit is designed for 2014-2018 Chevy Silverado and GMC Sierra 1500 trucks, working with trucks equipped with either the factory Aluminum or Stamped Steel front suspension. This lift system can be used on trucks with or without front MagneRide. The kit is engineered to retain the factory turning radius while minimizing track width increase to less than 0.5 inches per side. Rear lift is achieved using a rear add-a-leaf spring and fabricated 3/16-inch thick plate steel rear lift blocks, and the system includes premium extended length Bilstein rear shocks.

Features

• Delivers 9 inches of lift.
• Retains the factory turning radius and handling.
• Minimizes track width increase to less than 0.5 inches per side.
• Works with Front MagneRide equipped vehicles.
• Includes new tubular steel upper control arms with TCT pivot bushings for improved strength.
• Features a "clam-shell" style lower strut extension that retains the factory struts (standard and front-only MagneRide) and does not require strut rotation.
• Includes boxed steel front and rear cross members and a full-width front skid plate constructed of thick 3/16-inch plate steel.
• Comes with 1/4-inch boxed plate steel differential drop brackets with a double gusset and boxed center rib.
• Includes premium extended length Bilstein rear shocks.
• Backed by the ReadyGuard Powertrain Warranty.

Notes

• Single Cab configuration has not been validated for fitment and drivability.
• Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide, as the factory shock cannot be replaced and extensions are unavailable for this amount of lift.
• Not for use on AWD applications; 2WD or 4WD only.


Compatibility Notes

• Designed for 2014-2018 GM 1500 trucks with OE Aluminum or Stamped Steel front suspension.
• Works with vehicles equipped with Front MagneRide.
• Not compatible with Rear MagneRide.
• Not for use on AWD applications.

Tire Fitment

• Allows for up to a 37-inch tall off road tire.
• Requires at least a 9-inch wide wheel with -12 offset for no rub.
• Aggressive tires may require minor trimming.

Specs

• Front Lift: 9 inches.

• Shock Type: Premium extended length Bilstein rear shocks.

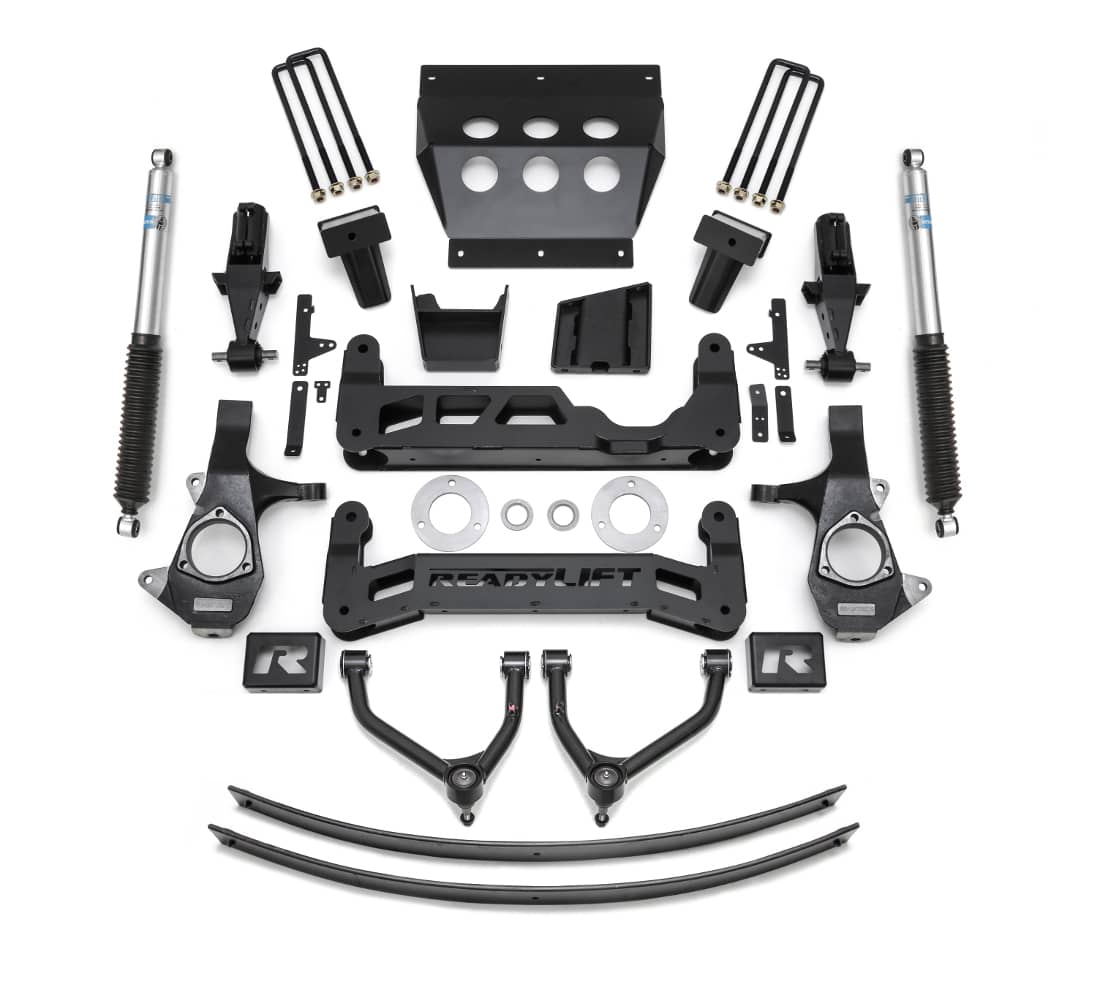

• Kit Contents: Front/Rear Cross Members, Front Skid Plate, Lower Strut Extensions, Tubular Upper Control Arms, Differential Drop Brackets, Rear Add-a-Leaf Spring, Fabricated Rear Lift Blocks, and Bilstein Rear Shocks.
