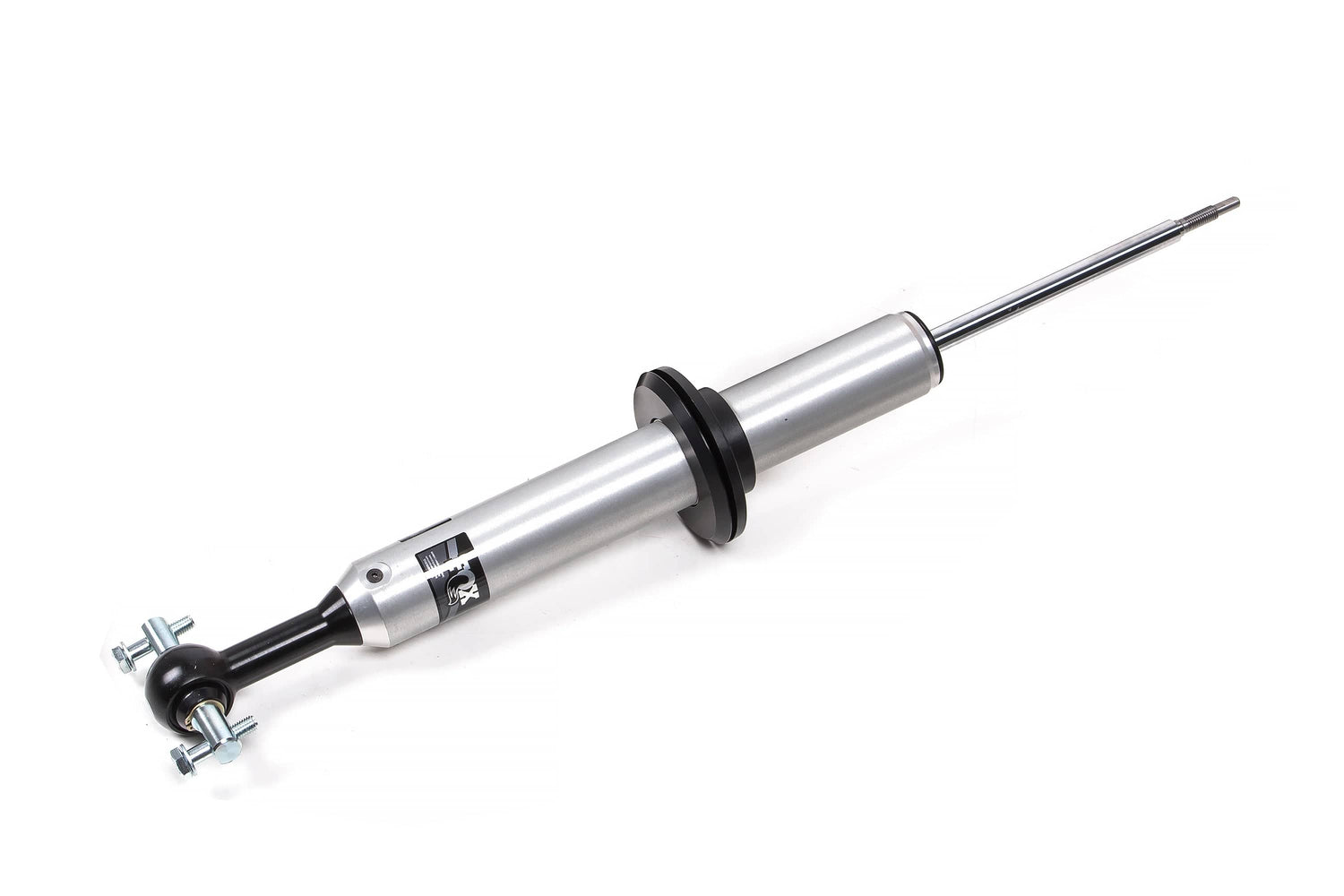

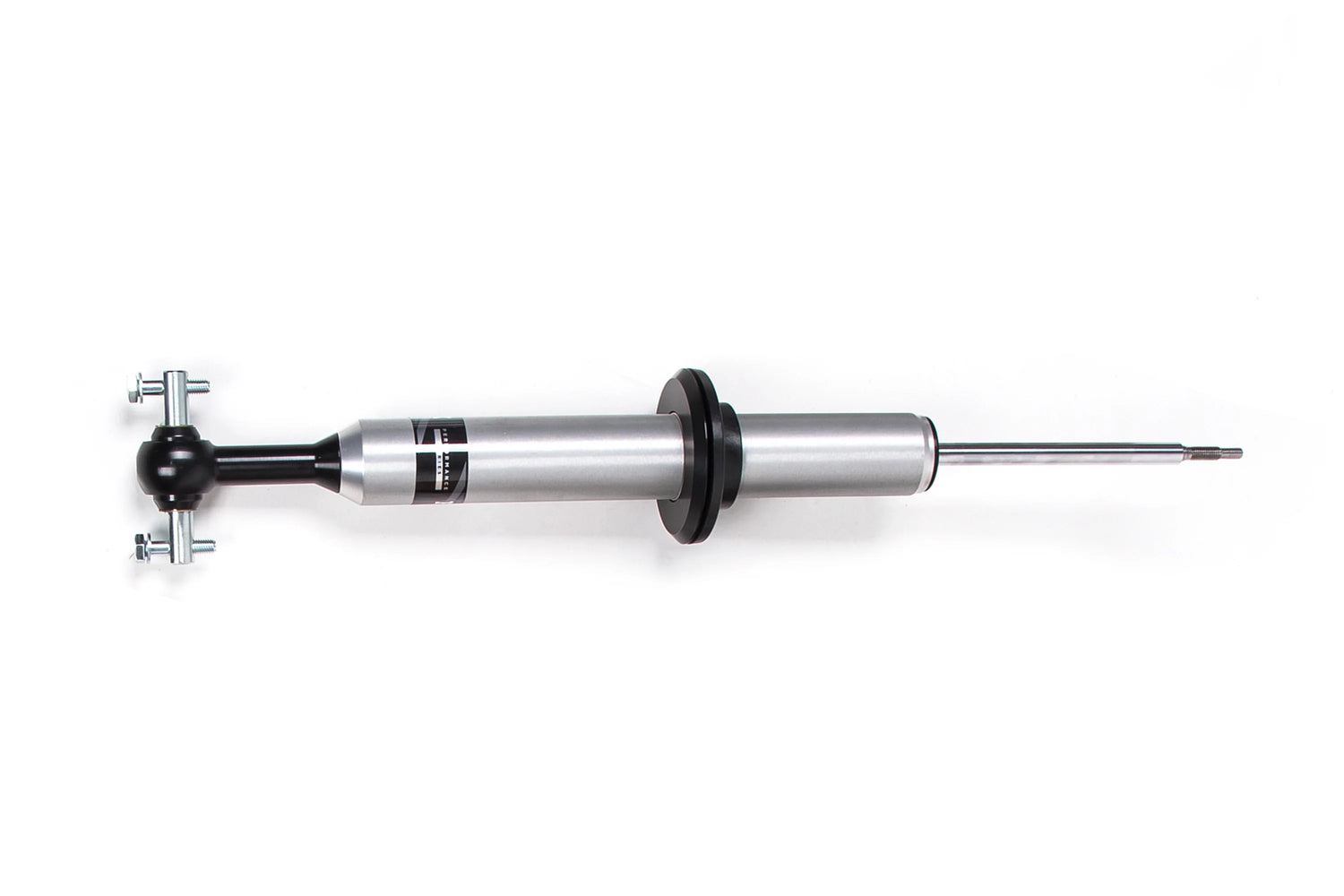

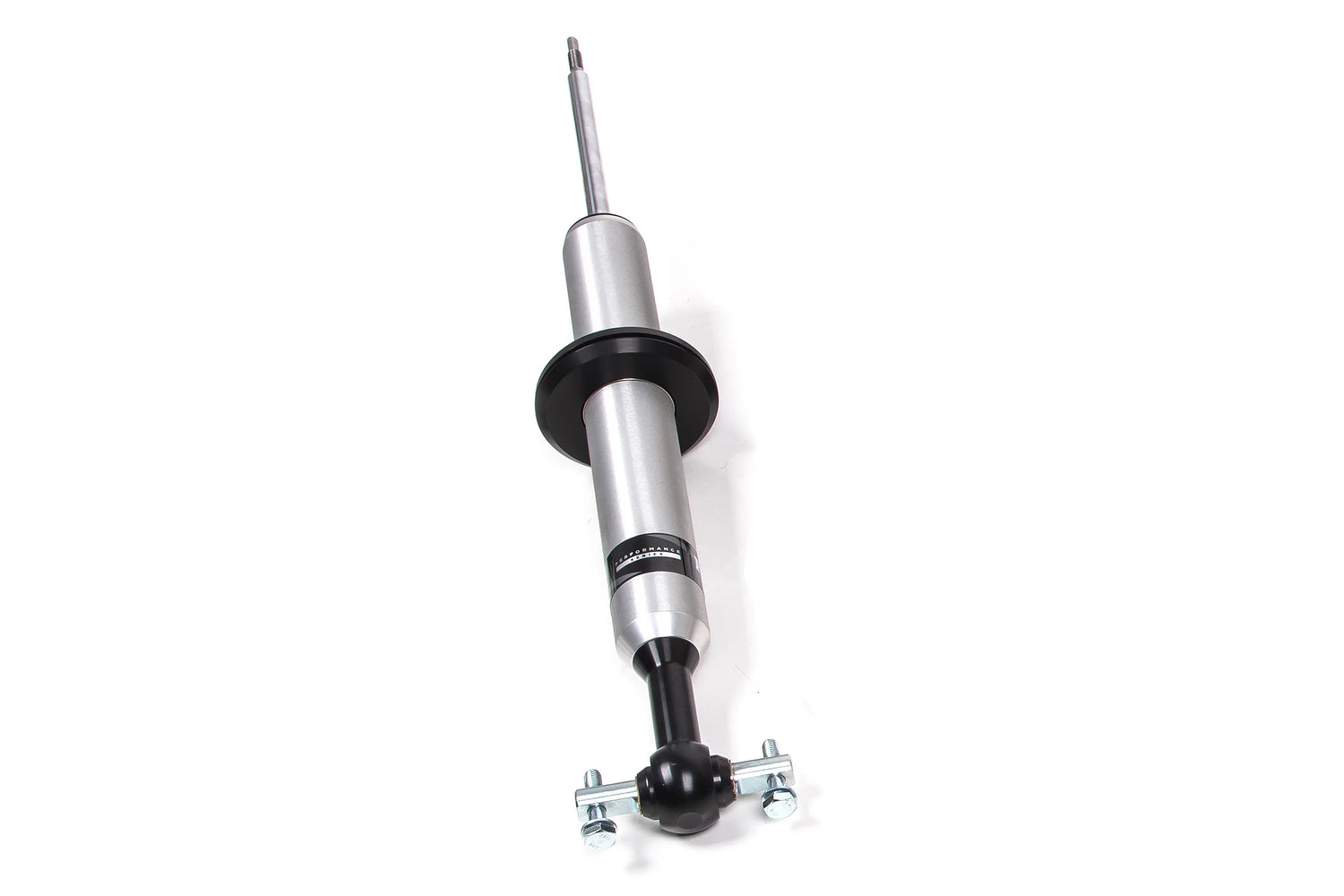

2014-2018 GM 1500 Front 2.0 Series Snap Ring IFP Strut 0-2" Lift (FOX98562002)

Upgrade your Silverado or Sierra with the FOX 2.0 Performance Series Snap Ring IFP Strut, designed to level your truck and improve ride quality. This direct-replacement strut features multiple snap ring grooves that allow you to adjust the spring preload for 0-2 inches of lift. Its 2.0-inch aluminum body dissipates heat effectively, while the internal floating piston (IFP) mono-tube design separates the shock oil from high-pressure nitrogen to prevent aeration and provide predictable, fade-free performance.

Features

• Custom-molded spring seat so you can reuse the stock spring and mounting hardware
• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Adjustable Damping : No
• Compressed Length : 16.73
• Extended Length : 20.59
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : BP7
• Lower Mount Type : Bar Pin
• Shaft Diameter : 5_8
• Travel Length : 3.86
• Type : Snap Ring Coil-Over
• Upper Mount Code : OEM
• Upper Mount Type : OEM
