2014-2018 1500 2.25" Front Leveling Kit (66-3086)

Description

It's no secret that the factory-stamped steel arms in your 1500 provide little to no structural support for the ball joint if you install a lift or leveling kit; if you do install a kit, chances are the factory UCAs will fail, which can be costly to repair. ReadyLift has engineered a way to bypass GM's mandate on no lift/ leveling kits on these trucks.

Featuring proprietary HD ball joints, a maintenance-free anti-resistance bushing assembly that is self-lubricating, with a free-rotating inner sleeve. Your truck will sit level, maintain the factory ride, and give you the peace of mind that you will never have the factory-stamped steel control arm failure.

Part Number: 66-3086

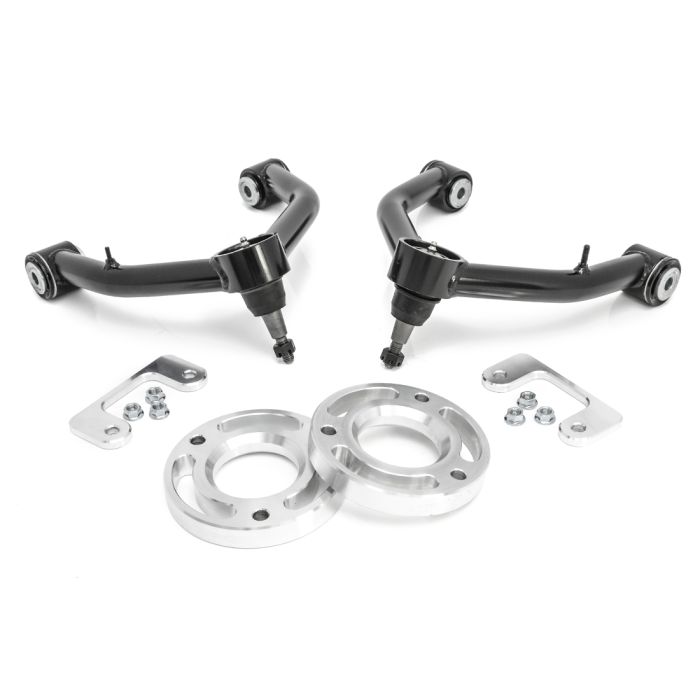

Features

• For 6-lug trucks/ SUVs
• CNC-machined billet aluminum leveling kit
• DOM tube steel upper control arms with HD ball joints

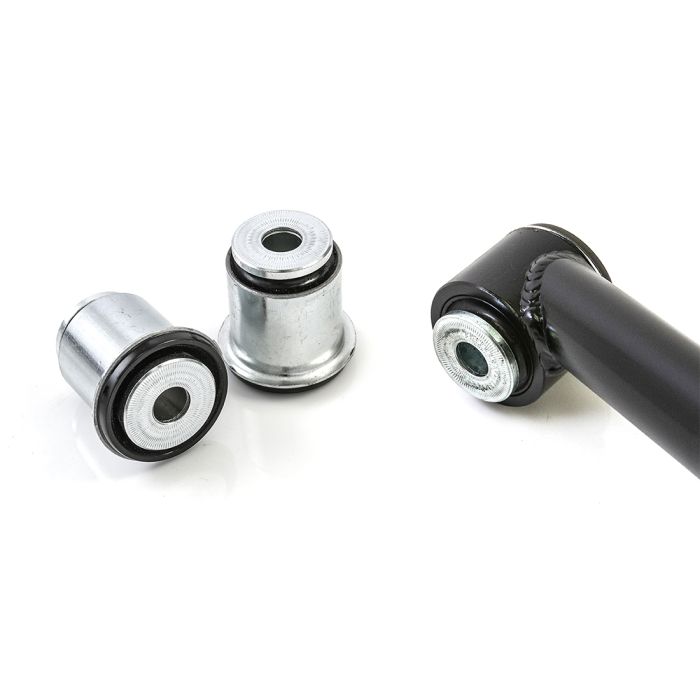

• Maintenance-free pivot bushings
• "side biter" splined washers for holding alignment

Tire Fitment:

• 33" Maximum tire diameter
• 33x11.50 for no rub on a 9" wide wheel with +12 offset
• 18" - 295/65R18
• 20" - 285/60R20
• 22" - 285/50R22
• Wheel spacers may be required with factory wheels
• The factory wheel options and differences in backspacing vary

Notes

• This kit is for use only with GM 1500 trucks with stamped steel or aluminum control arm suspension. Not for use with cast steel suspension
• Not for use with vehicles equipped with factory Air-Ride
• Vehicles equipped with Magnetic Ride Control will require re-calibration. 1/2' wheel spacers may be required when using 285 or larger tires on the factory wheels.
• Check the factory height before ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.
