2014-2018 Ram HD 4" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1602H)

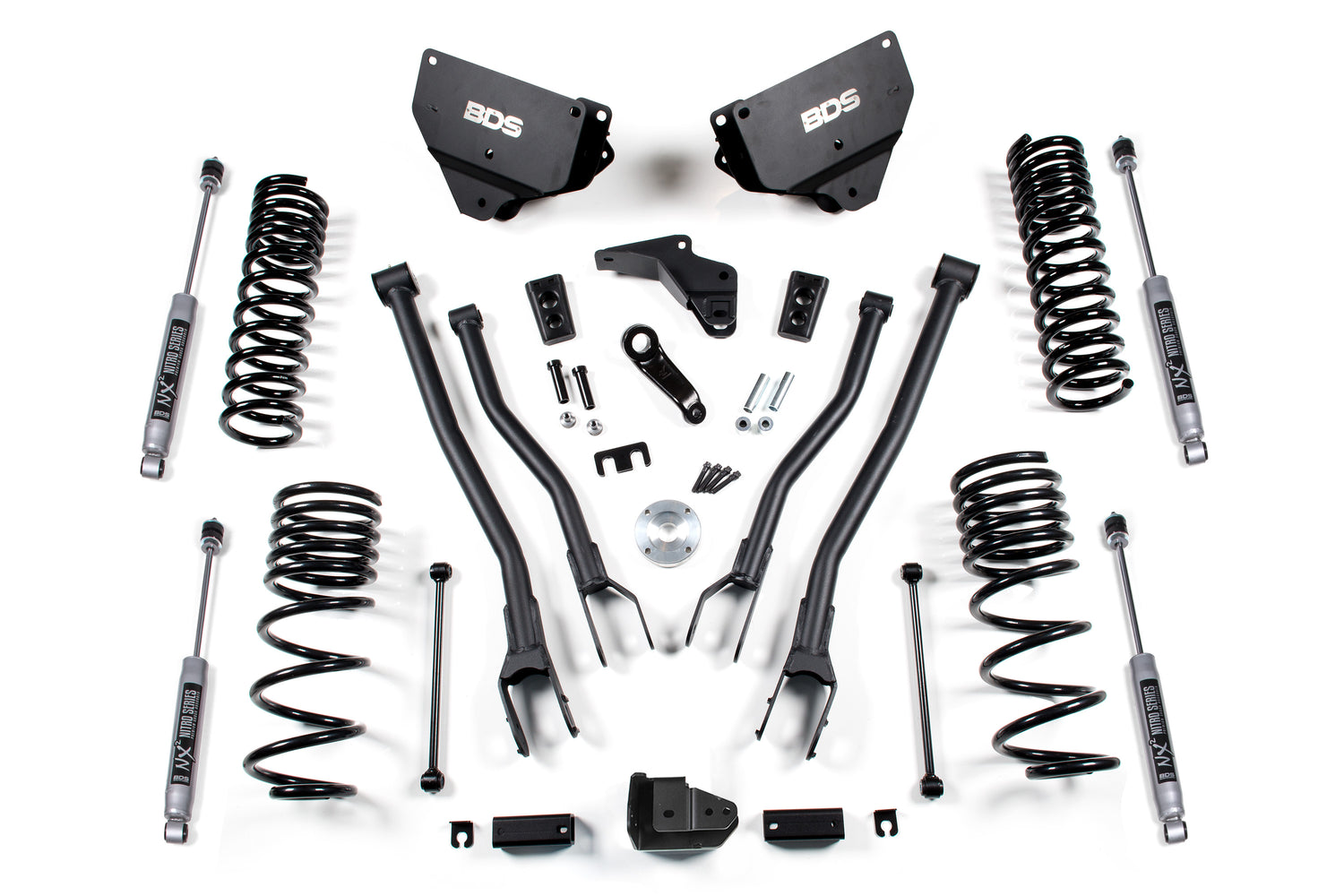

BDS engineered this 4" lift kit with 4-link conversion for your 2014-2018 RAM 2500 diesel, clearing up to 35" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, 4-link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and NX2 or FOX 2.0 shocks. The rear runs progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks. The 4-link conversion replaces the factory stamped steel radius arms to optimize geometry and limit caster change.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate Pro-Ride coil springs front and rear for a great ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• NX2: nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat finish, dual-welded ends

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/5.625

Notes

• Not for use with factory rear airbag suspensions.

Includes

• BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit (UPC 658848612161)
• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) (UPC 658848612390)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (UPC 711745609662)
