2014-2018 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS1762H)

BDS

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$2,668.95 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Customize your 2014-2018 Cummins 4"Radius Arm Customizable Lift Kit (BDS1762H) below. Add BDS-matched components to complete your build.

Steering Stabilizers

Optional

Front Track Bar

Optional

Rear Track Bar

Optional

Front Brake Line Set

Optional

Sway Bar Link Disconnect

Optional

Carrier Bearing Drop Kit

Optional

Carrier bearing drop spacer to correct rear driveline angle on trucks with a 2-piece rear driveshaft.

Dual Shock Hoop Mounts

Optional

Subtotal

Part Specs

Take your 2014-2018 Ram 2500 diesel truck to the next level with this BDS 4" radius arm lift kit that clears up to 35" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular replacement radius arms with caster adjustment and OE-style frame bushings, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned NX2 shocks. The rear adds progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of NX2 Nitro or FOX 2.0 performance shocks.

Features
  • Heavy-duty tubular radius arms improve strength, handling, and caster control
  • High-strength progressive-rate coil springs
  • Track bar relocation brackets to reposition the axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
  • NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8" high-flow piston
  • Self-lubricating seals, silver powder coat finish
Specs
  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2.5 inch
Recommended Tire & Wheel Fitment
  • Tire Size: 35x12.5
  • Wheel Diameter: 20x9
  • Back Spacing: 5.625

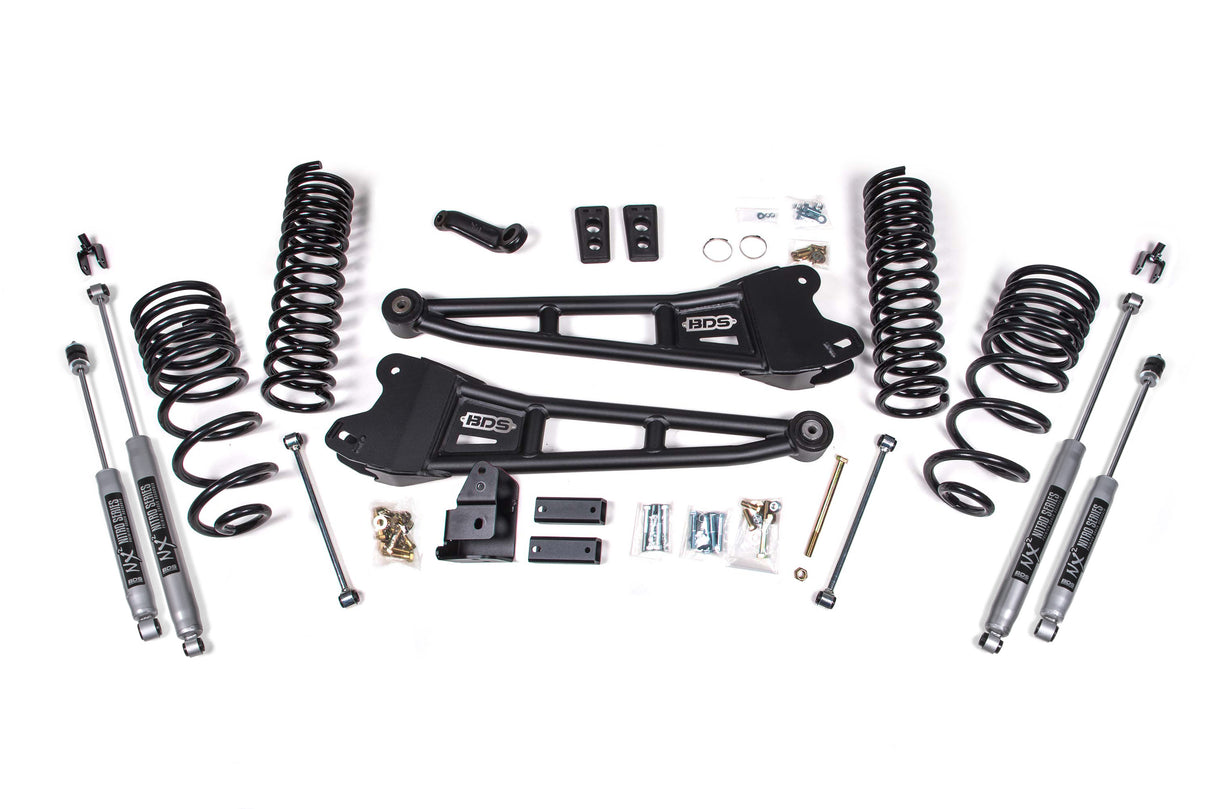

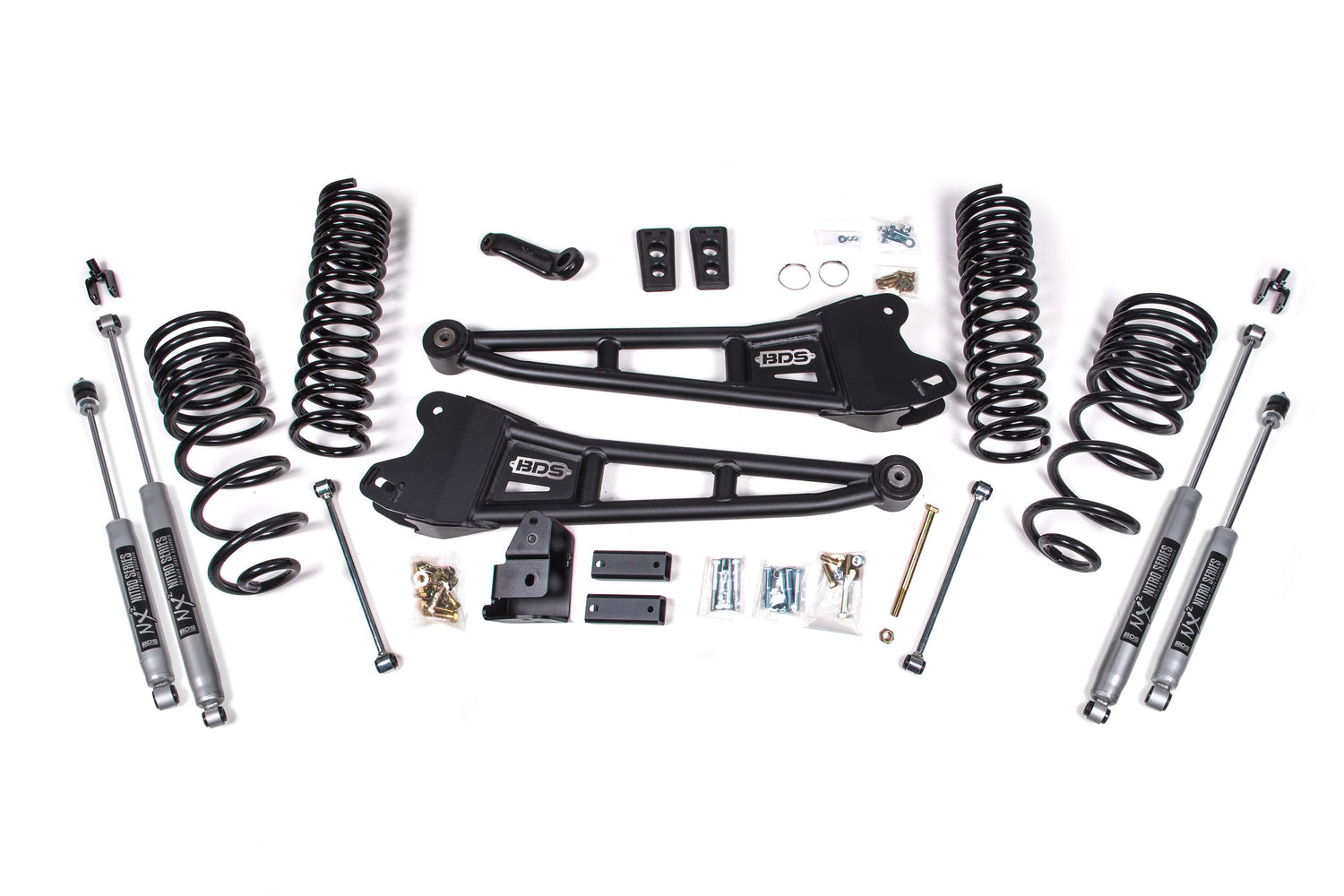

Includes
  • BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit (UPC 658848612161)
  • BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit (UPC 711745611702)
  • BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
  • BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
  • BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
  • BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (UPC 711745609662)

Vehicle Fitment

Part Specifications

  • Part No.
    BDS1762H
  • Cross Reference #
    840416408676
  • Vendor
    BDS
  • Shipping Weight
    261.4 lb
  • Length
    44.5 in
  • Width
    10.5 in
  • Height
    9 in
  • Placement
    • Front
    • Rear
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
  • Compatibility Notes
    BodyNumDoors: 4; DriveType: 4WD; FuelType: DIESEL; - DriveType: 4WD; FuelType: DIESEL;
