2014-2018 Ram HD 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1633FS)

Improve the ride and style of your 2014-2018 RAM 2500 gas truck, equipped with factory rear air ride, with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Features

• For OE Air Ride systems only
• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5.625/5.625

Notes

• 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's 4-link bracket.
• 5.7L Gas models may require modification - but not in all cases.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.

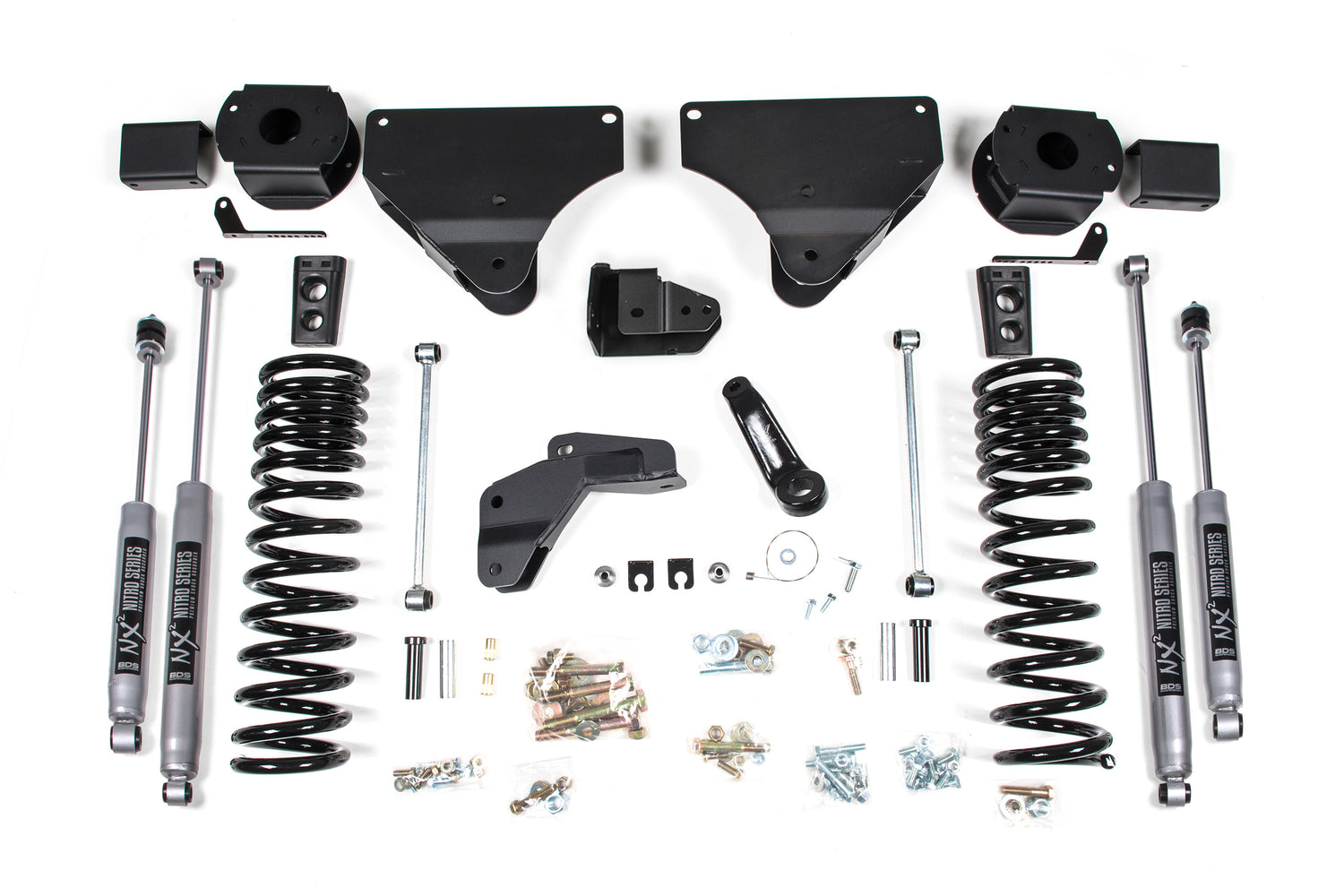

Includes

• BDS012359, 14-18 Ram 2500 3.5 inch Rear AirRide Box Kit (UPC 658848612314)
• BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit (UPC 658848612321)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224706, Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1
