2014-2018 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS1773H)

Take your 2014-2018 Ram 2500 diesel truck with factory rear air ride to the next level with this BDS 4" radius arm lift kit that clears up to 35" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular replacement radius arms with caster adjustment and OE-style frame bushings, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned NX2 shocks. The rear uses heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, new air ride leveling sensor brackets, and a matching set of NX2 Nitro or FOX 2.0 performance shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive-rate coil springs
• Track bar relocation brackets to reposition the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• New air ride leveling sensor brackets to maintain factory sensor function and full air bag travel
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• For OE air ride systems only.

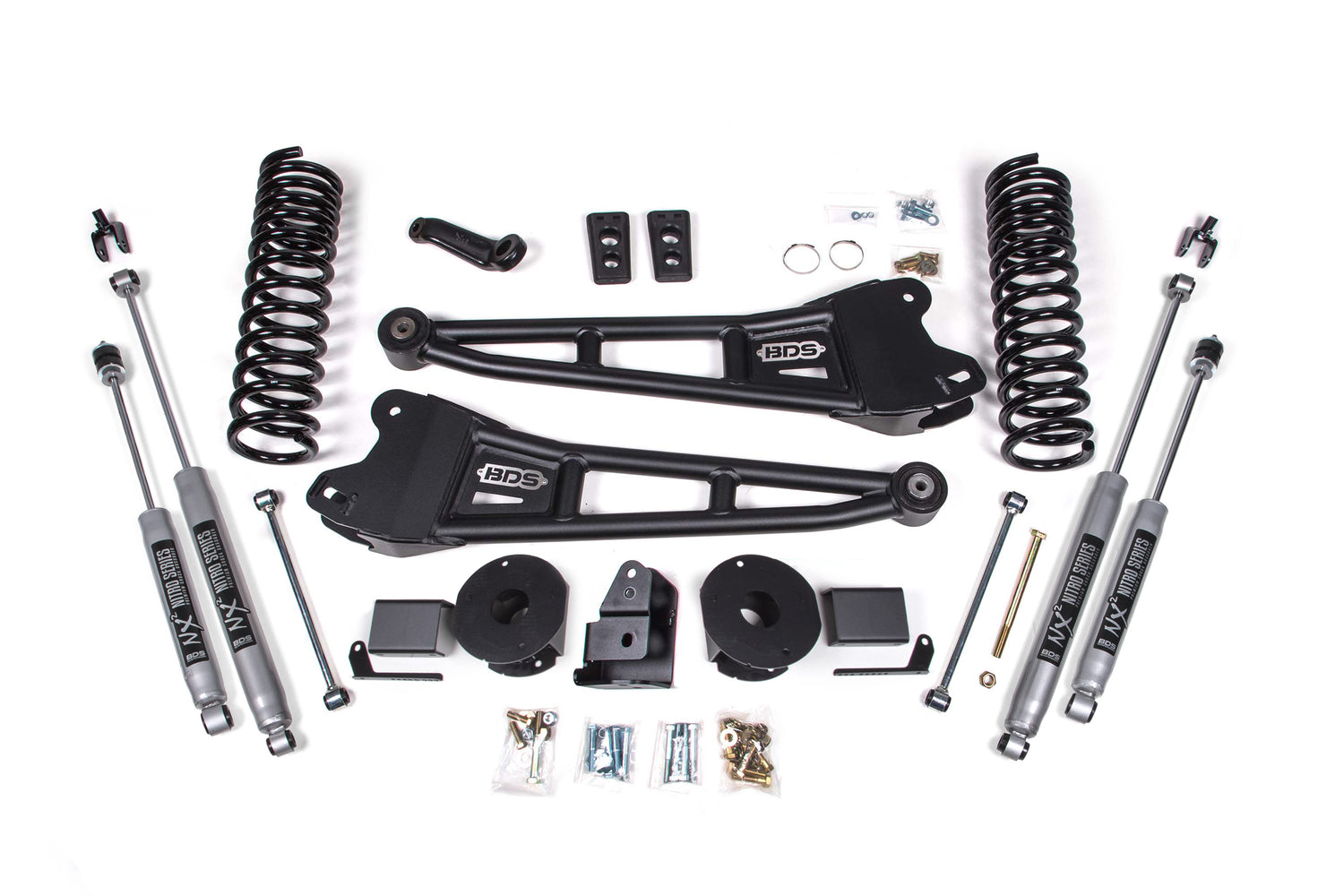

Includes

• BDS012359, 14-18 Ram 2500 3.5 inch Rear AirRide Box Kit (UPC 658848612314)
• BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit (UPC 711745611702)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85764, Shock- 24.80 x 14.80 x 2 - Special/EB1 (UPC 711745609730)
