2014-2018 Ram HD 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1763FPE)

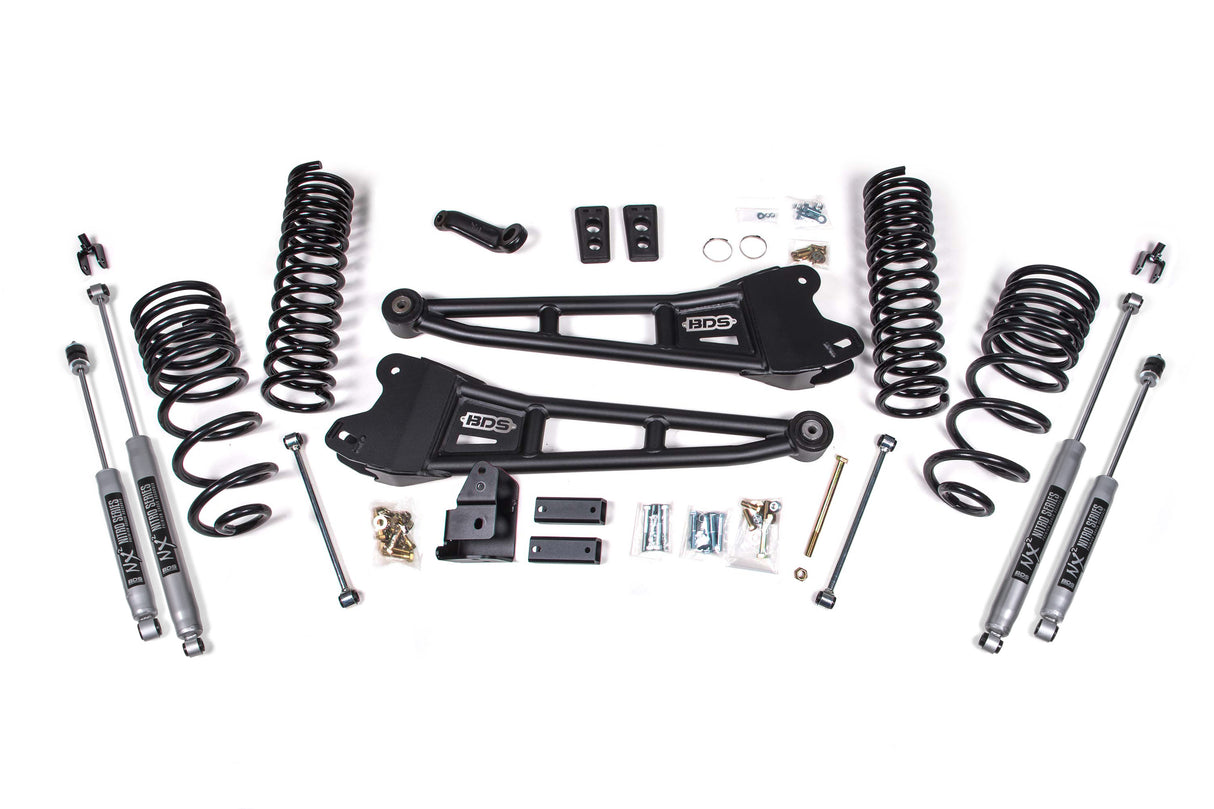

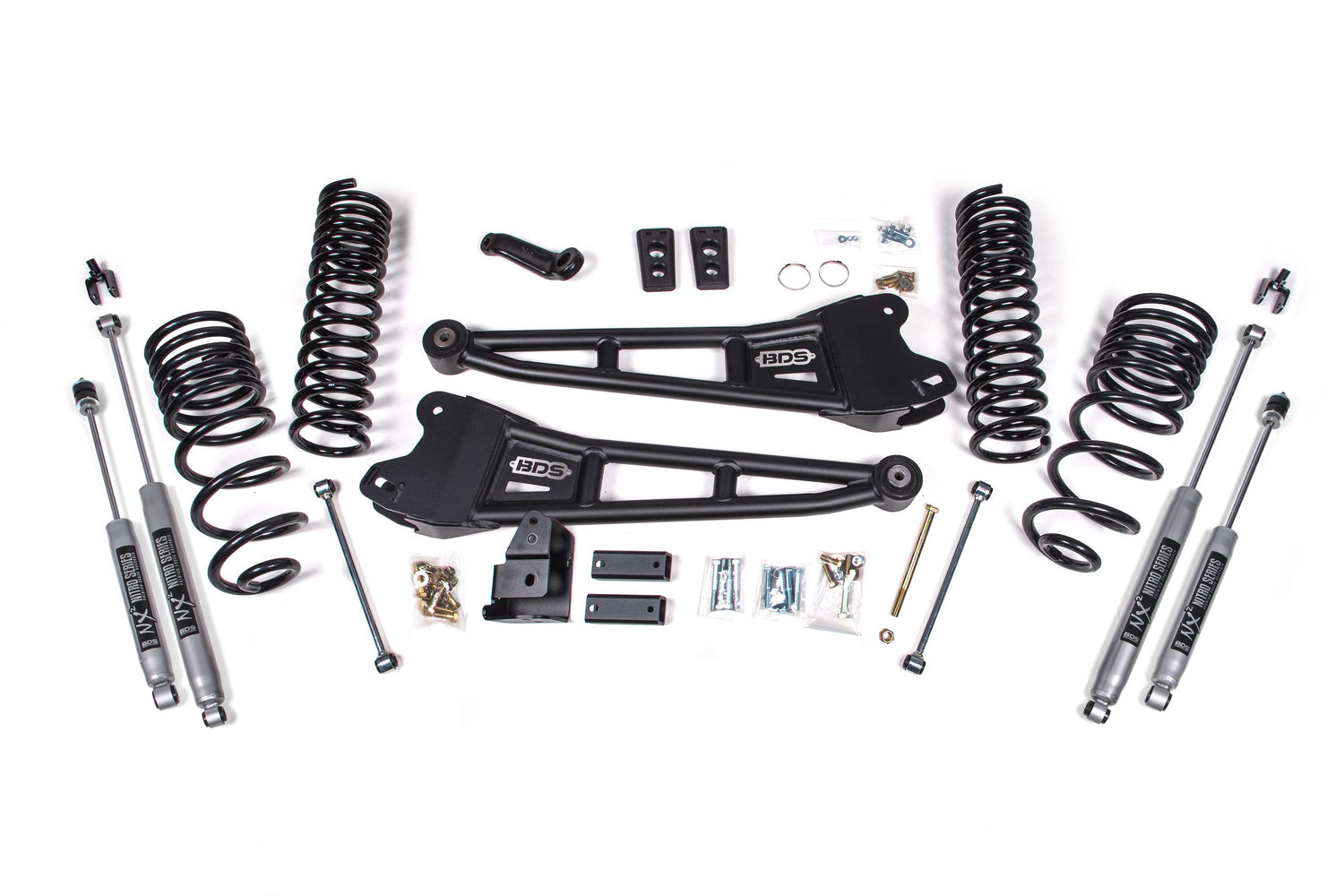

Take your 2014-2018 Ram 2500 gas truck to the next level with this BDS Suspension 4" radius arm lift kit, with clearance for up to 35" tires. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, brake line brackets and tuned FOX 2.5 Performance Elite shocks. The rear uses progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and matching FOX 2.5 shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• 2.5-inch Impact extruded aluminum shock body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from the high-pressure nitrogen
• Dual Speed Compression adjuster standard
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's 4-link bracket.
• 5.7L gas models may require modification, but not in all cases.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled afterward.

Includes

• BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit (UPC 658848612161)
• BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit (UPC 711745611702)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
• FOX88326066, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 10.6 inch, 2-3.5 inch Lift, Dual Speed Compression Adjust
