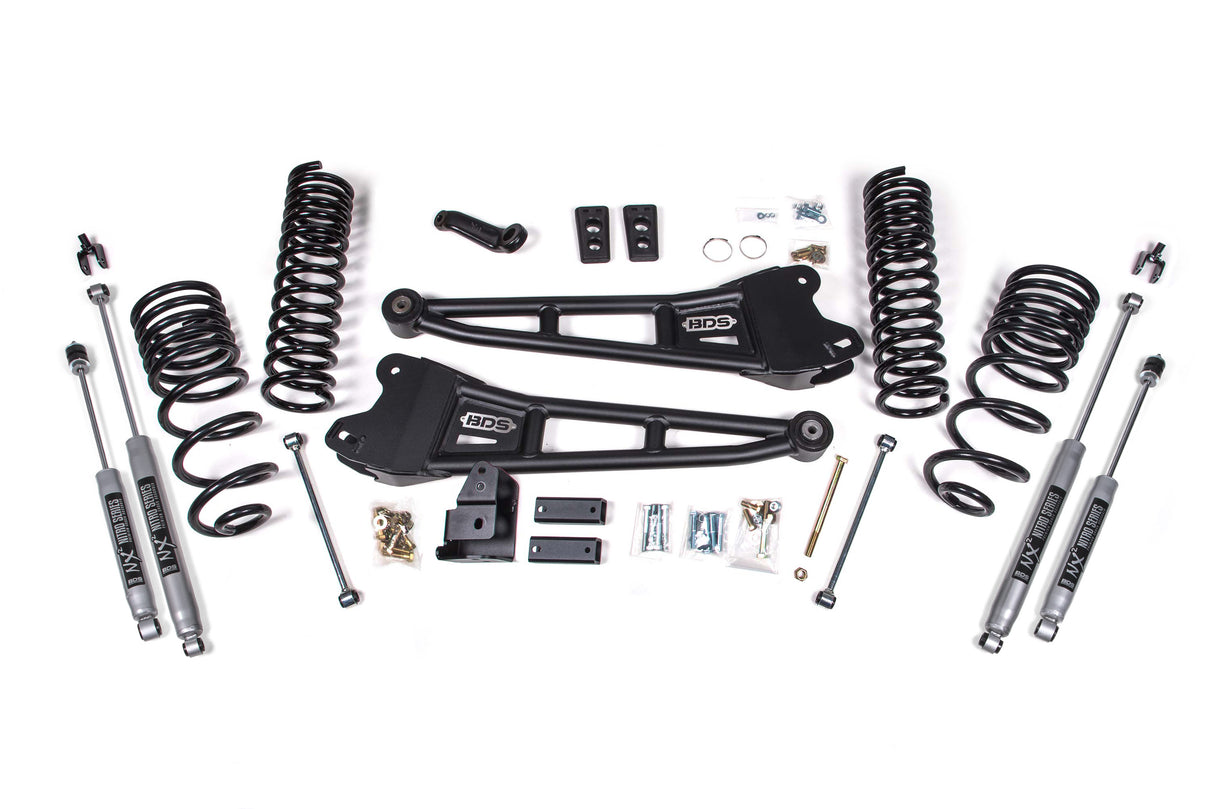

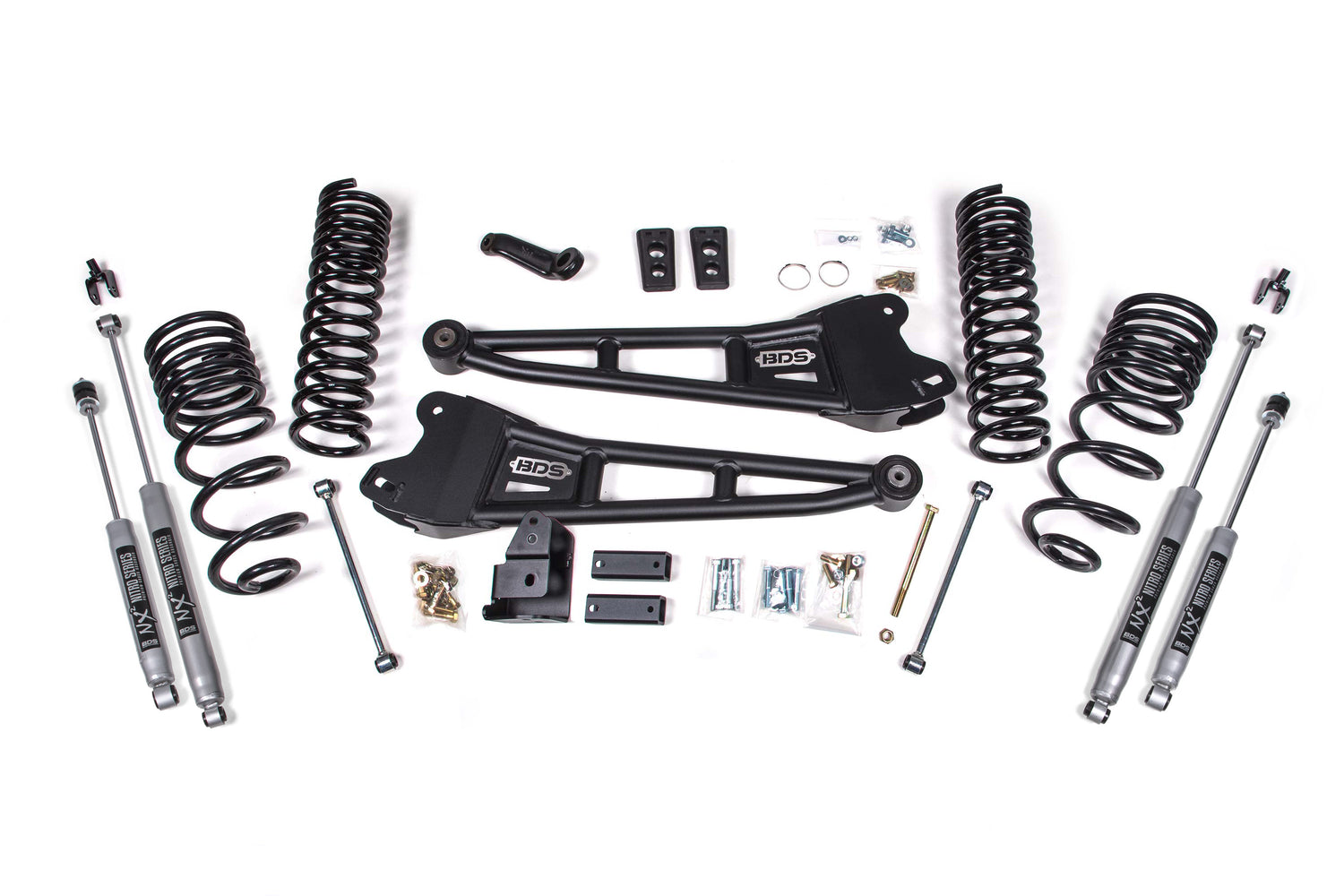

2014-2018 Ram HD 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1763FS)

Take your 2014-2018 Ram 2500 gas truck to the next level with this BDS 4" radius arm lift kit that clears up to 35" tires. Up front it runs gas-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular replacement radius arms with caster adjustment and OE-style frame bushings, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned FOX 2.0 shocks. The rear adds progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of FOX 2.0 performance shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive-rate coil springs
• Track bar relocation brackets to reposition the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 gas or FOX 2.0 IFP performance series gas shocks
• FOX 2.0: 2" Impact extruded aluminum body, IFP monotube design
• CNC-machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston, application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• 6.4L gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's 4-link bracket.
• 5.7L gas models may require modification, but not in all cases.
• The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled afterward.

Includes

• BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit (UPC 658848612161)
• BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit (UPC 711745611702)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
