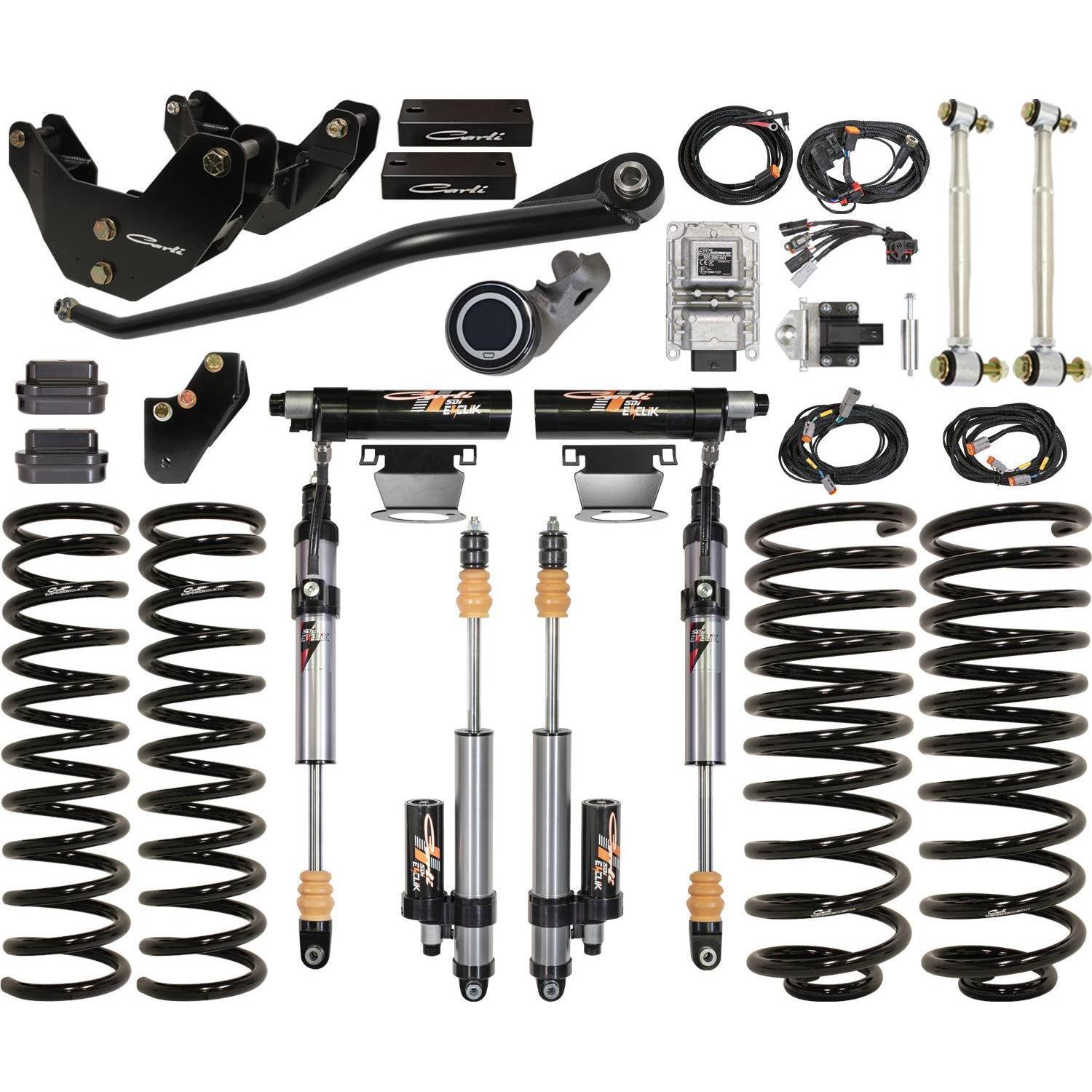

2014-2018 Ram 2500 4x4 Diesel 3.25" Lift E-Venture System (CS-D3-EV25-14-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$12,299.04 CAD
1" Lift R1 or 2" Lift R2 Coils
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled shocks that read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

Sway Bar Options

Required

Rear Track Bar

Required

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or the Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled shocks that read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-D3-EV25-14-D

Features
  • A setting for every scenario: Select from Mountain, Street, and Desert modes to choose the best setting for any terrain
  • Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button
  • Pro Mode: This mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don't worry, if your curiosity gets ahead of you or you failed to track your changes, Carli implemented a "Restore Default" setting
  • Heavy Hauling: Arguably, the most handy feature is the Rear Load Adjustment. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support
  • Hard-anodized aluminum bodies and reservoirs pair with 17-4 Stainless steel Shock Shafts
  • Operating Screen: While driving, the screen is defaulted to your interface, showing the real-time correction at each corner
Notes
  • Not compatible with factory rear air ride trucks. There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application

Warranty
Limited 1 (One) Year Warranty
