2014-2018 Ram HD 5.5" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1606FS)

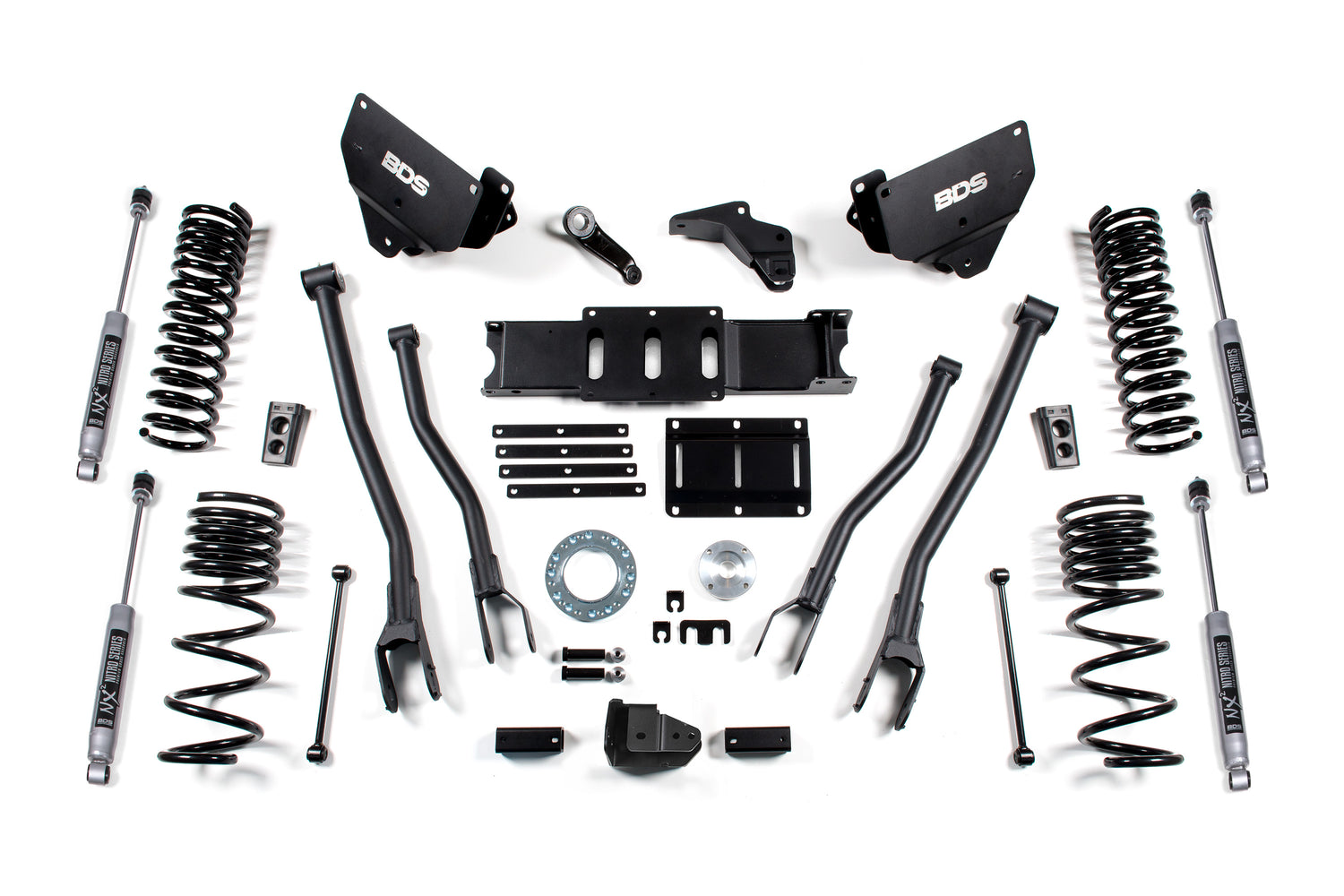

BDS engineered this 5.5" lift kit with 4-link conversion for your 2014-2018 RAM 2500 gas truck, clearing up to 37" tires. Up front it includes gas-specific progressive rate Pro-Ride coil springs, 4-link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and NX2 or FOX 2.0 shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied. The rear runs progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate Pro-Ride coil springs front and rear for a great ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/5

Notes

• 6.4L gas models require exhaust modification to clear the front driveshaft. 5.7L gas models may require it as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modification before reinstalling the driveshaft.

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit (UPC 658848612475)
• BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) (UPC 658848612703)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122616, Ram T-Case Index - Gas - 6 Bolt (UPC 658848619702)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
