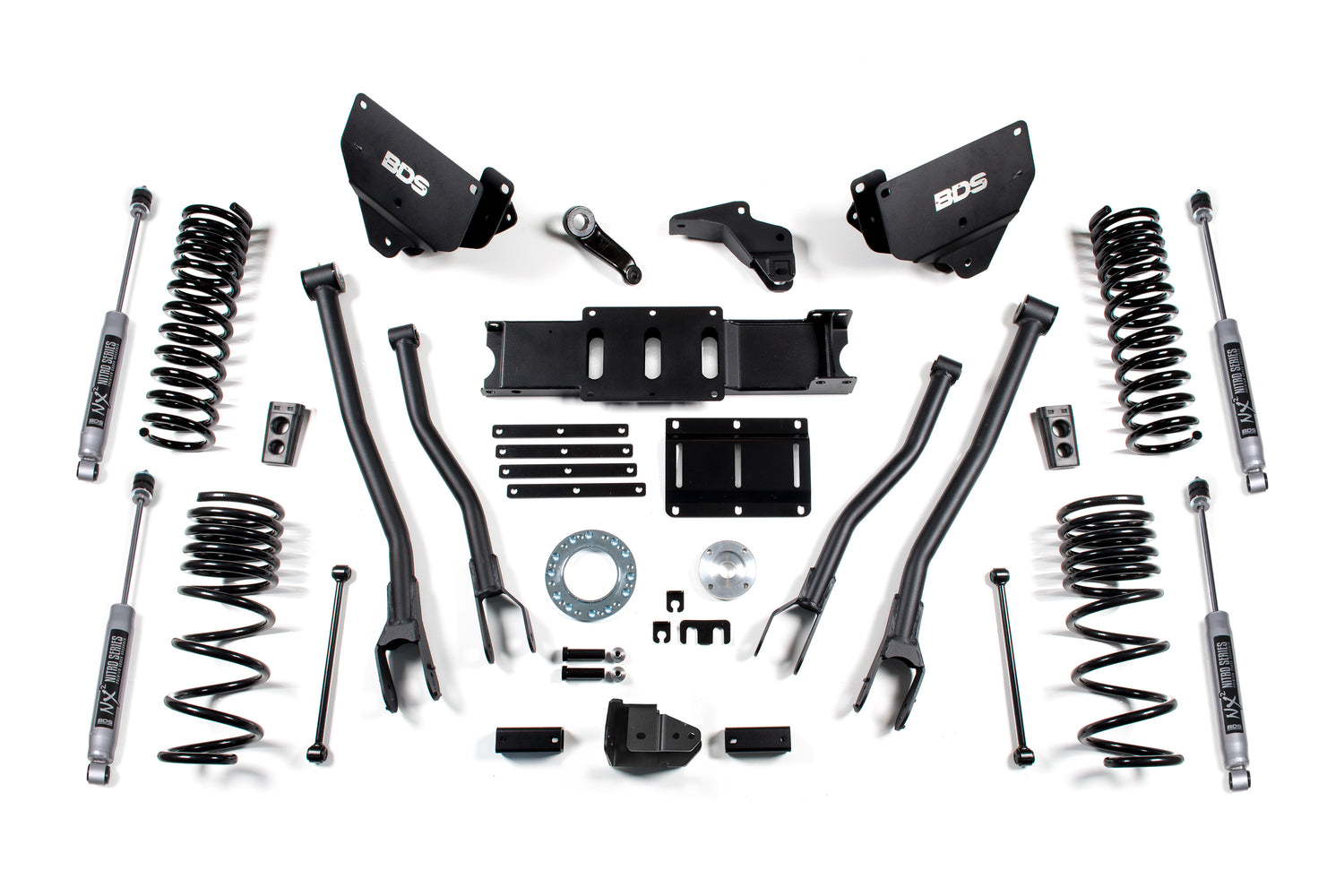

2014-2018 Ram HD 6" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1604FPE)

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Not for use with factory rear airbag suspension
• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/5.625

Notes

• Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle coul have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 122813.

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit (UPC 658848612475)
• BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2) (UPC 658848612703)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust
