2014-2018 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1627FS)

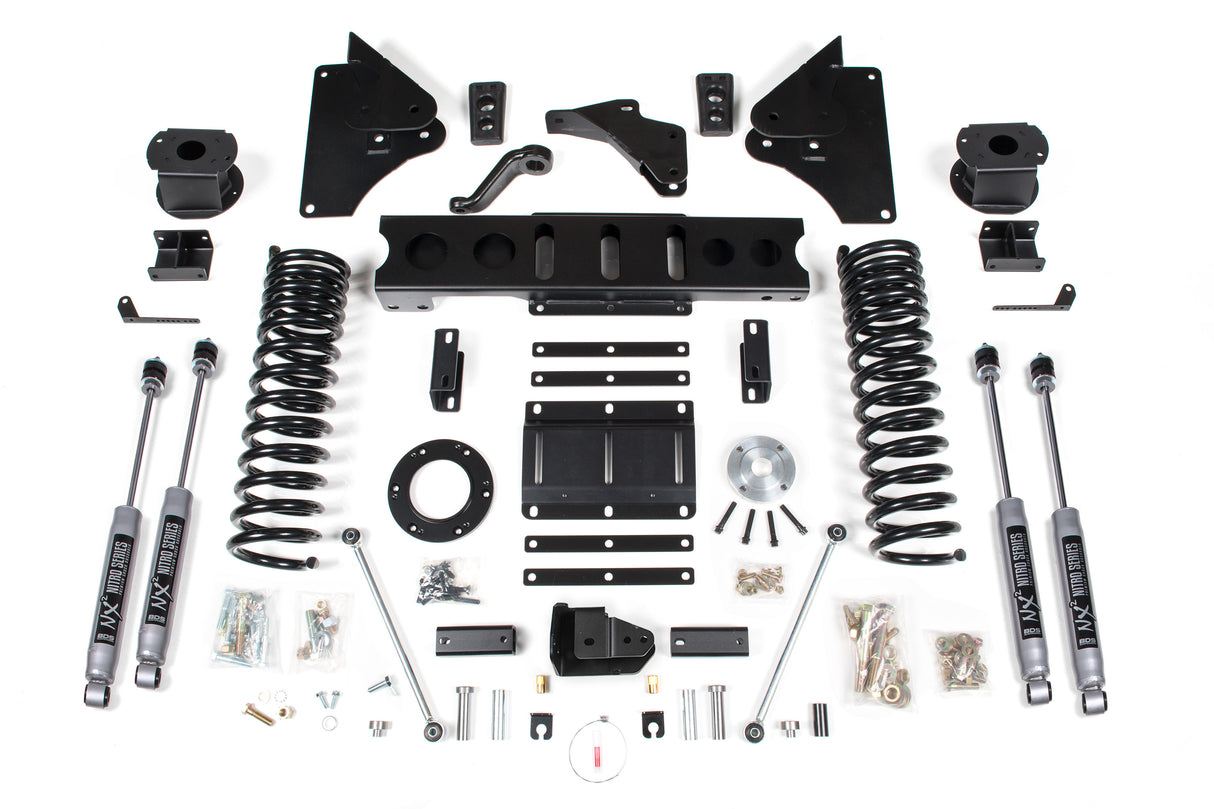

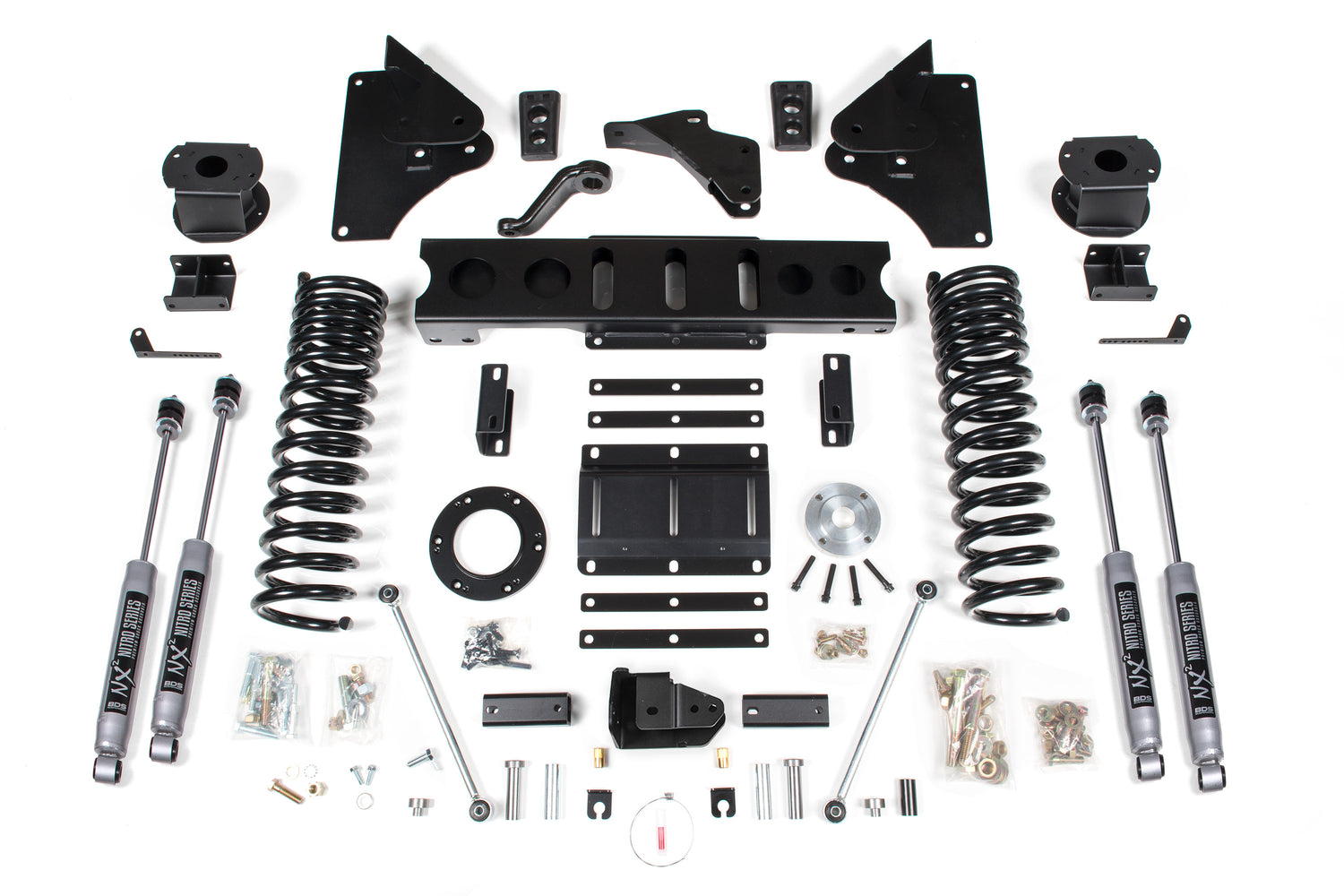

Take your rear air ride equipped 2014-2018 RAM 2500 diesel to the next level with this BDS 6" radius arm lift kit, clearing up to 37" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and NX2 or FOX 2.0 shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied. The rear runs heavy duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks, plus new air ride leveling sensor brackets to maintain factory function and full air bag travel.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• High strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• Air ride leveling sensor brackets to maintain factory air ride function and full air bag travel
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• For OE air ride systems only.

Includes

• BDS012529, 14-18 Ram 2500 5 inch Rear Air Ride Box Kit (UPC 658848612666)
• BDS012610, 2013 Ram 3500 6 inch Front Box Kit (UPC 658848612727)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
