2014-2018 Ram HD 6" Lift Kit with NX2 Nitro Shocks (BDS2102H)

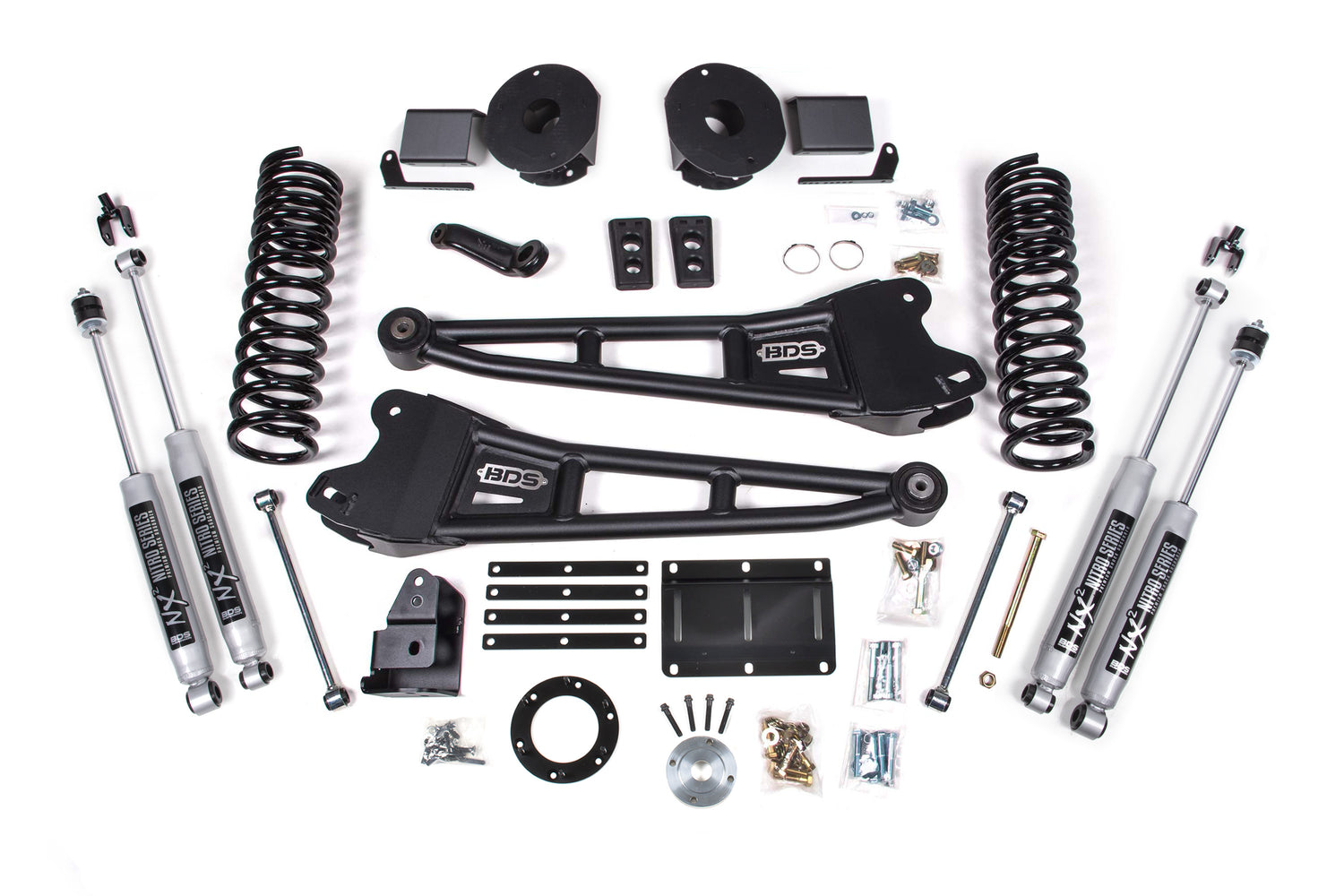

Built to outperform, this BDS 6" radius arm lift kit for your 2014-2018 RAM 2500 diesel truck clears up to 37" tires and fits OE air ride systems. Up front it includes diesel-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are supplied. The rear uses heavy duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, new air ride leveling sensor brackets, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 gas or FOX Performance Series internal floating piston gas shocks

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 4 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 35x12.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/4.5

Notes

• For OE air ride systems only.

Includes

• BDS012529, 14-18 Ram 2500 5 Inch Rear Air Ride Box Kit (UPC 658848612666)
• BDS012615, 2013-2018 Ram 2500/3500 4wd 6 Inch Radius Arm Front Box Kit (UPC 711745611719)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel (UPC 658848616428)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (UPC 711745609662)
