2014-2018 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS2100FS)

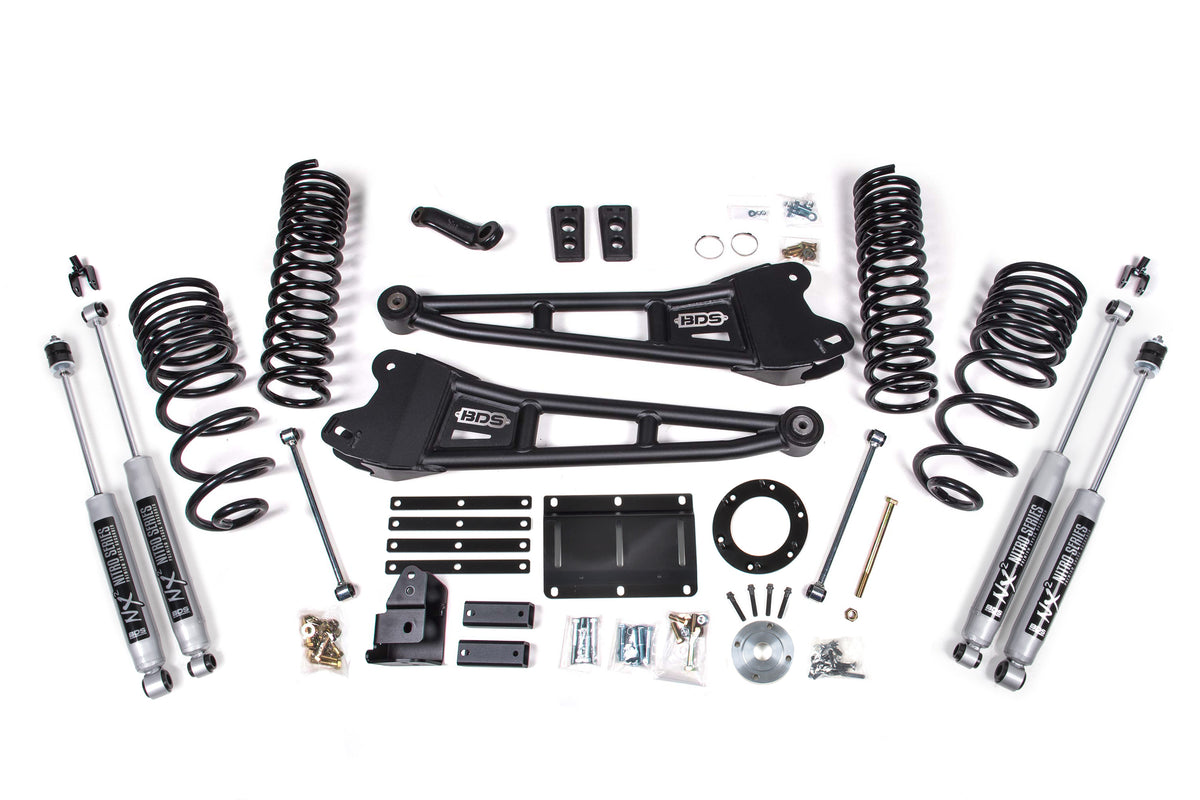

BDS 6" radius arm lift for the 2014-2018 Ram 2500 diesel truck with clearance for up to 37" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height the transfer case is indexed with an indexing ring and new transmission crossmember to allow use of the factory front driveshaft. In the rear it uses progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• Choice of BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Spring
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 4 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 35x12.5
• Wheel Diameter: 18x9, 17x9
• Back Spacing: 4.5/4.5

Includes

• BDS012458, 2014-2018 Ram 2500 4.5 Inch Rear Coil Box Kit (UPC 658848612475)
• BDS012615, 2013-2018 Ram 2500/3500 4wd 6 Inch Radius Arm Front Box Kit (UPC 711745611719)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel (UPC 658848616428)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
