2014-2018 Ram HD 8" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1626FS)

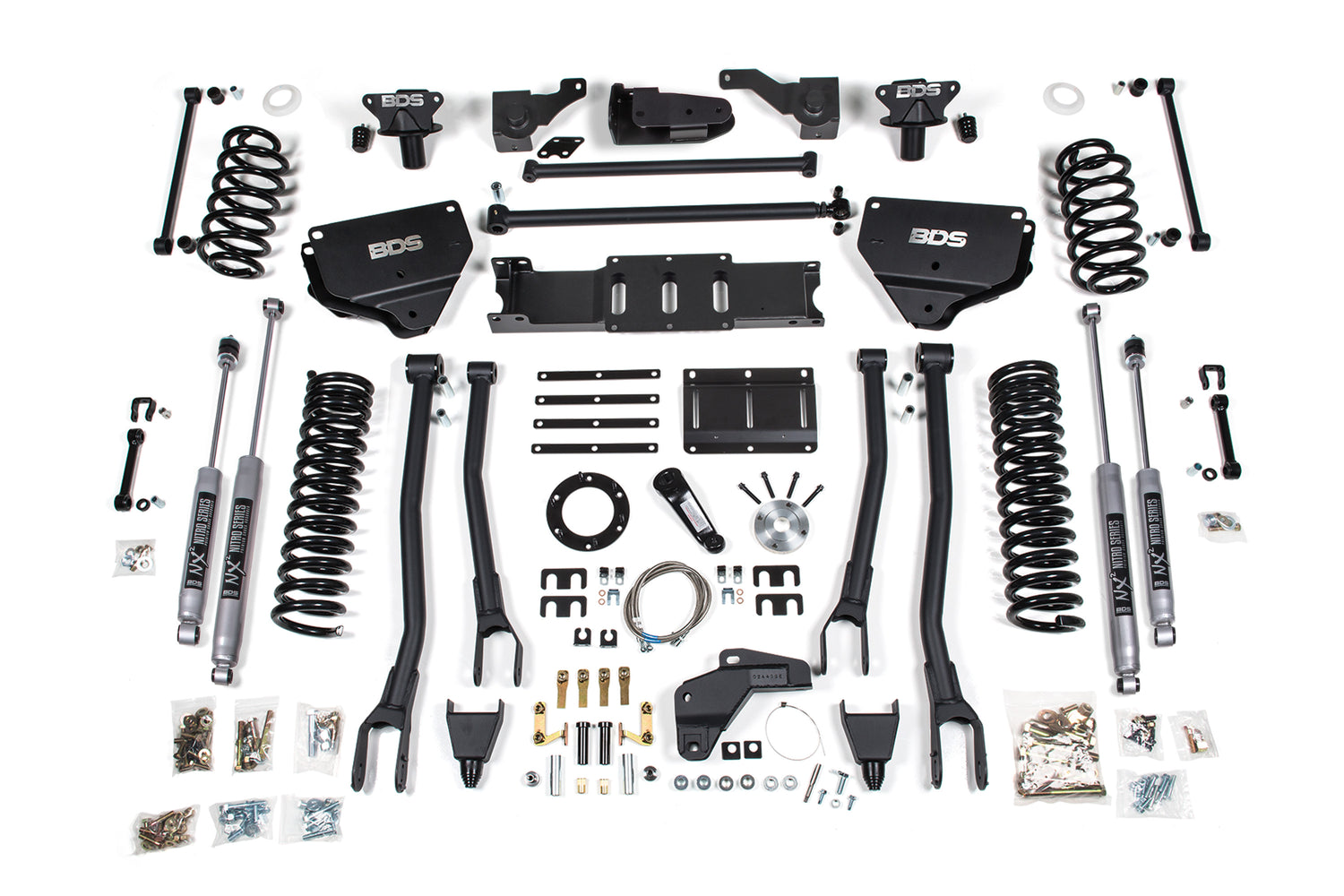

Go big with this BDS 8" lift kit and 4-link conversion for your 2014-2018 RAM 2500 diesel, clearing up to 40" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, 4-link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and NX2 or FOX 2.0 shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied.

In the rear, new outboard coil bucket seats (minor drilling required) mount the coils similar to a leaf-spring truck for a shorter, more stable coil that resists bowing. A new track bar relocation system sets rear roll-center height and centers the axle, finished with a heavy duty adjustable track bar, extended sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Outboard rear coil bucket seats for a shorter, more stable coil that resists bowing
• Track bar relocation brackets and heavy duty adjustable rear track bar to set roll-center and re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 40x13.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Carrier bearing drop kit will be required for 2-piece rear drive shaft.
• Some vehicles may require a rear driveshaft spacer kit to maintain adequate rear driveshaft engagement.
• 40x13.50 tires may require some trimming, and depending on wheel width and backspacing may require spacing the front bumper forward and inner fender trimming.
• Rear coil bucket seats require minor drilling for mounting hardware.

Includes

• BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) (UPC 658848612345)
• BDS012619, 2014-16 Ram 2500 Rear Box Kit (UPC 658848612796)
• BDS012810, 2013-18 Ram 3500 8in Front Box Kit (UPC 658848612895)
• BDS032619, 2014-2024 Ram 2500 Rear 6 inch Coil Box Kit (UPC 658848616435)
• BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only) (UPC 658848616459)
• BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (UPC 658848619757)
• FOX98224754, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• FOX98224763, Fox 2.0 Shock - 30.05 x 18.5 x 2- Special/EB1
