2014-2018 Ram HD Backcountry 3" Lift Kit (CS-D3-BC-CS-14-H)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$6,531.84 CAD
1" Lift R1 or 2" Lift R2 Coils
In stock - Ships right away

Build Your Kit

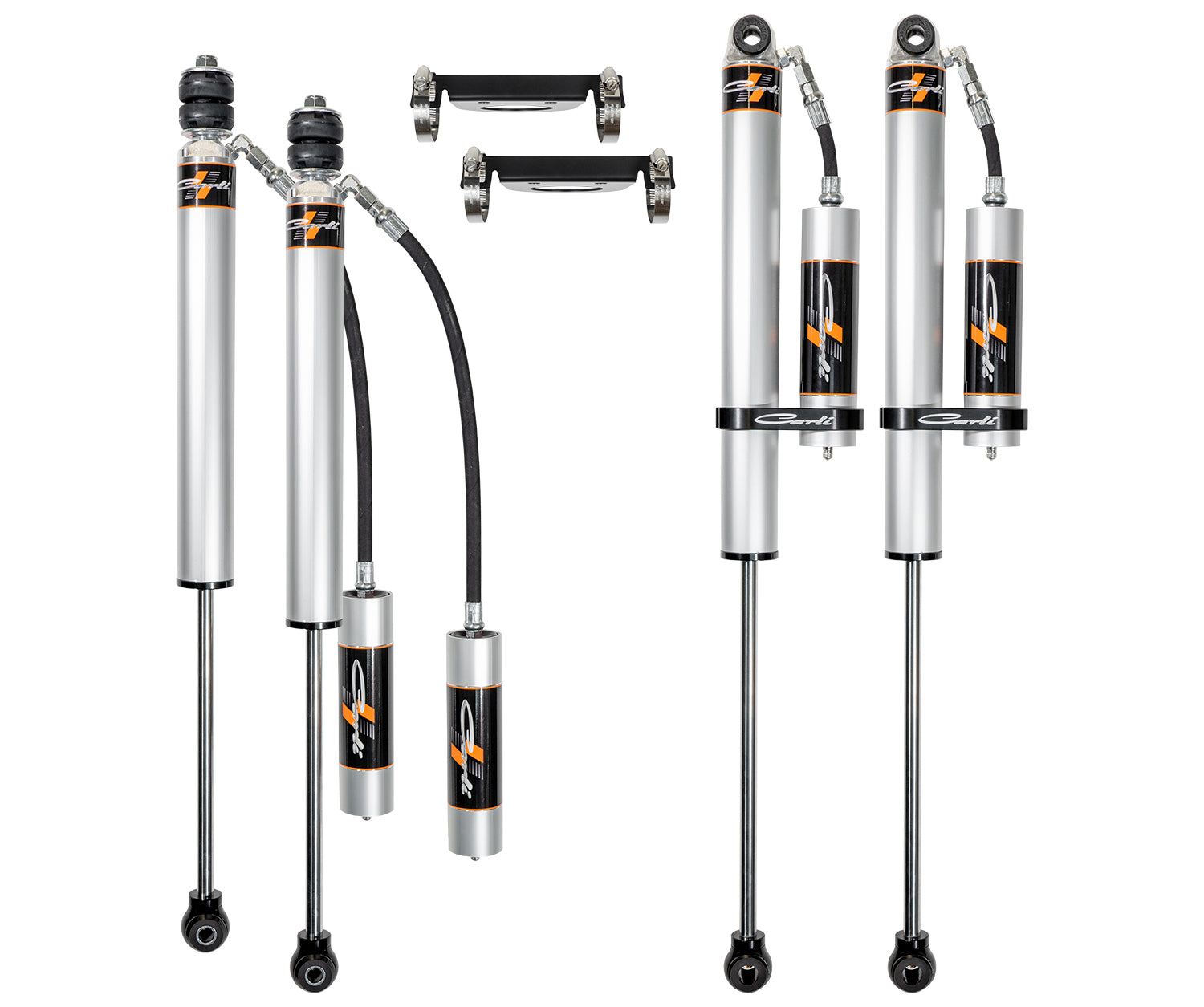

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome-plated shaft, and 6061 billet rod ends. The R1 or R2 Rear Multi-Rate Coil Springs provide a slightly softer, more compliant ride at low compression and become firmer as more force is applied.

Sway Bars

Optional

Needed to complete this build — skip only if your truck already has one installed. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar You MUST select a Sway Bar option with the BASE Kit. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Rear Track Bar

Optional

Needed to complete this build — skip only if your truck already has one installed. The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Bolt in stabilizer adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. ** Note: Original 14-18 Drag Links will have 2 jam-nuts and large adjustment collar - order DHMSS-14 stabilizer. If the truck has been updated to the 19+ drag link, order the DHMSS-19.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8" hardened steel chrome plated shaft, and 6061 billet rod ends. The option of R1 or R2 Rear Multi-Rate Coil Springs provides a slightly softer, more compliant ride at low compression, and becomes firmer as more force is applied.

Part Number: CS-D3-BC-CS-14-H

Features

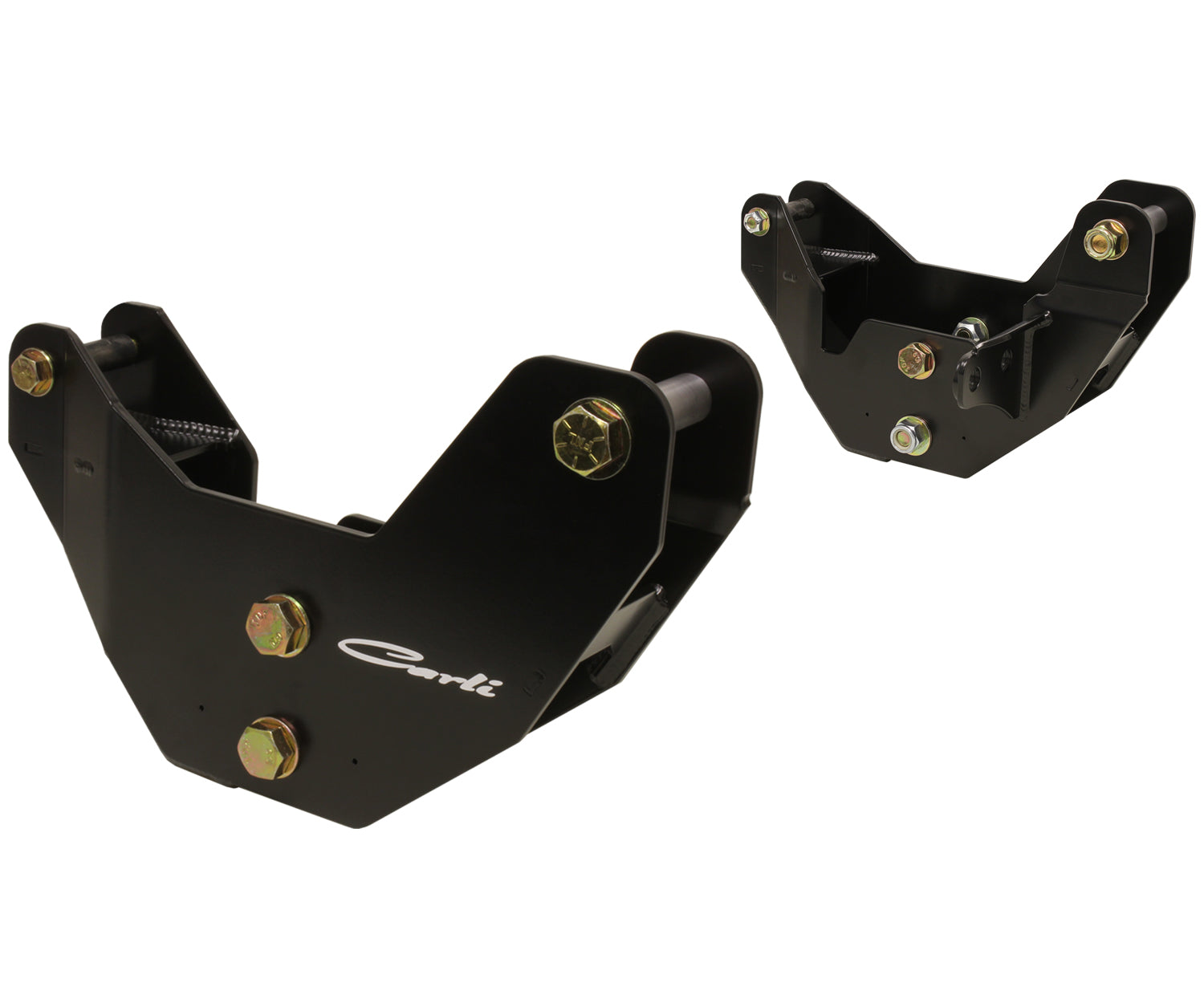

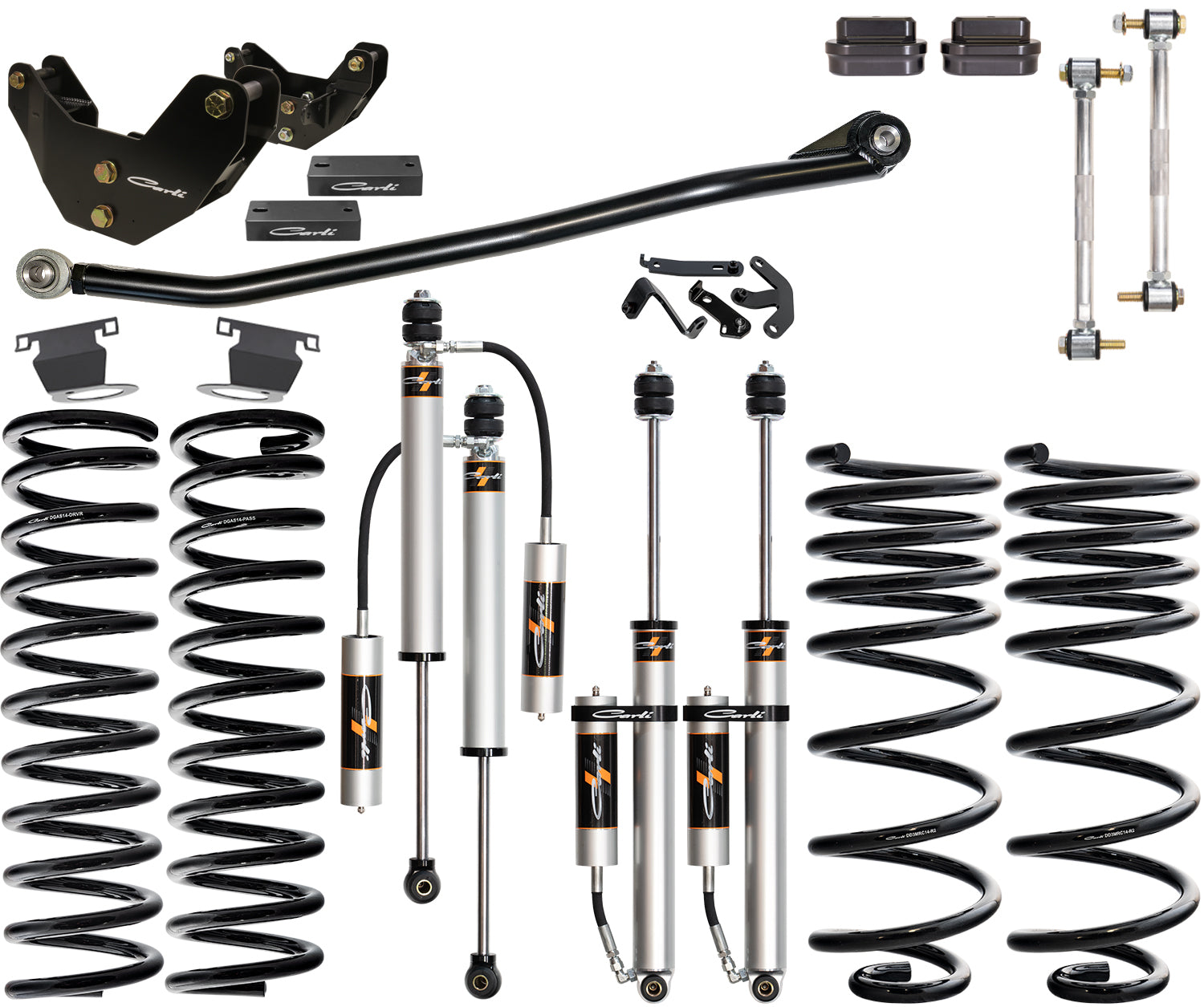

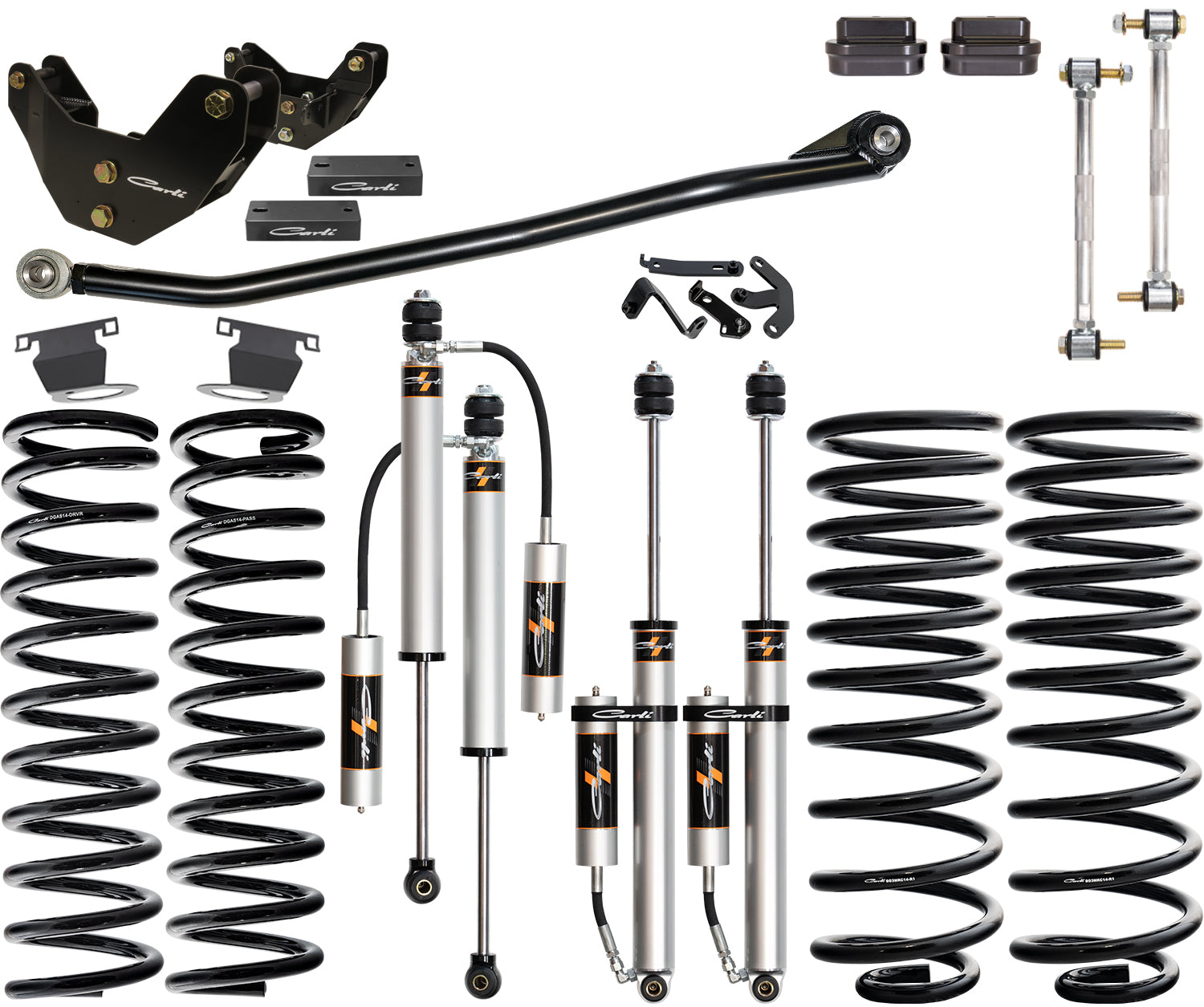

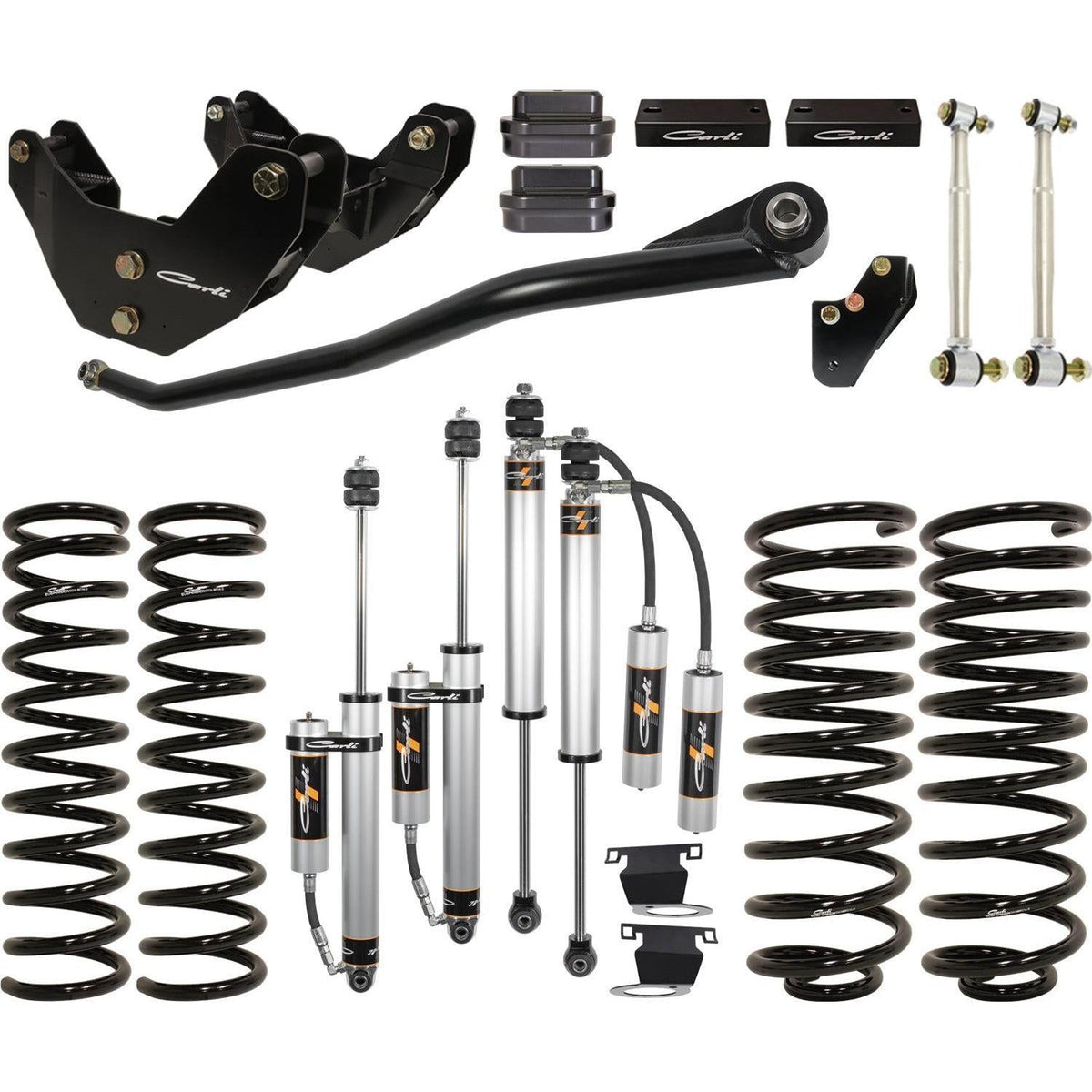

  • Multi-rate coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links, and rear track bar drop
  • Increases wheel travel to 9.6" front and 11" rear
  • Allows for the fitment of 37" tires
  • 3" Front Linear-Rate Coil Springs

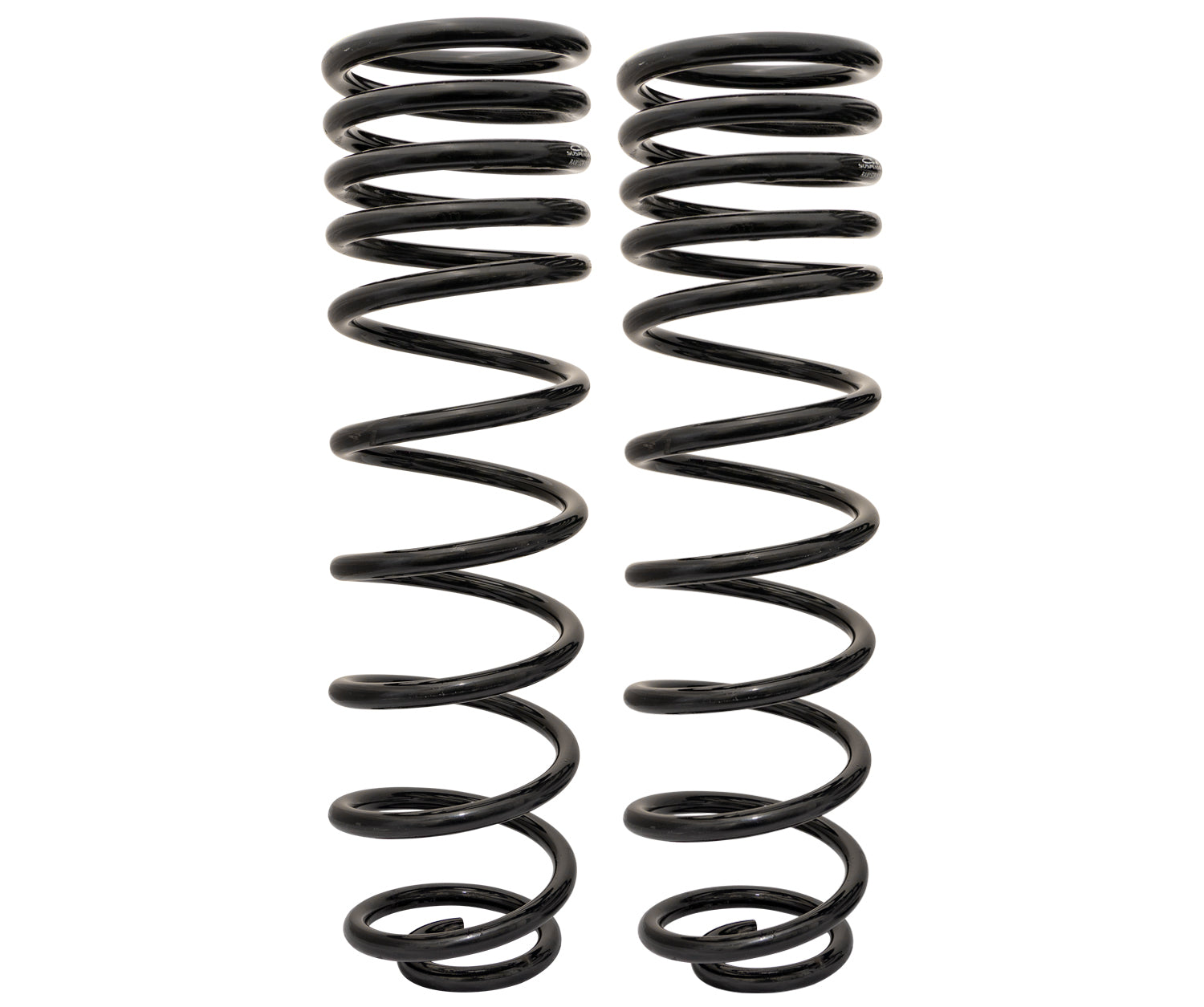

  • Rear Multi-Rate Coil Springs, R1 or R2
Notes
  • Not compatible with factory rear air ride or diesel models

IMPORTANT - R1 & R2 Coil Springs:

  • R1: The perfect complement to an unloaded truck with custom-tuned Carli shocks. Ideal for customers desiring a level appearance and the BEST ride with capability up to 1,500lbs of bed-load.
  • R2: Suited to the customer wanting to maintain the payload capacity and factory rake (unloaded), willing to accept a slightly firmer ride vs. the R1 (it is still softer than OEM rear springs). OR - The customer looking for the best ride and level appearance when loaded with a constant 800lbs (i.e., Overlanders).

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-D3-BC-CS-14-H
  • Vendor
    Carli Suspension
  • Shipping Weight
    240.0 lb
  • Placement
    • Front
    • Rear
  • Lift Height
    3"
  • Rear Lift Height
    3"
  • Front Lift Height
    3"
  • Prop 65
