2014-2018 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS1636H)

Take your 2014-2018 RAM 2500 Power Wagon to the next level with this BDS 4" lift kit, clearing up to 37" tires. Up front it includes Power Wagon-specific progressive rate Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and NX2 or FOX 2.0 shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied. The rear runs progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• Compatible with the factory rear power hop damper
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• NX2: nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat finish, dual-welded ends

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Requires exhaust modification to clear the front driveshaft at full suspension droop; steps outlined in instructions.

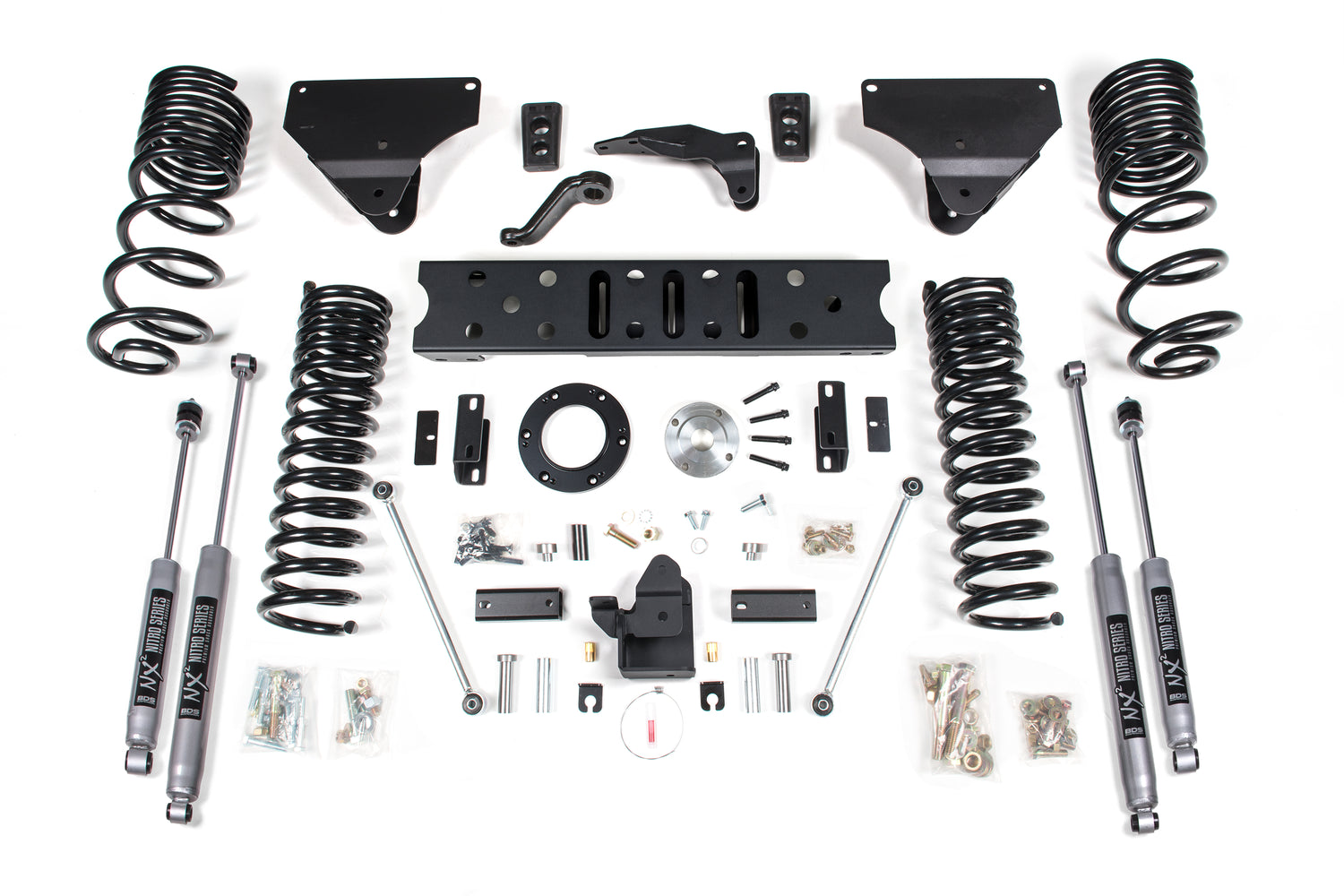

Includes

• BDS012256, 14-up Ram Power Wagon Rear Box Kit (UPC 658848612147)
• BDS012402, 14-up Ram Power Wagon Front Box Kit (UPC 658848612338)
• BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas (UPC 658848616367)
• BDS122616, Ram T-Case Index - Gas - 6 Bolt (UPC 658848619702)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (UPC 711745609662)
