2013-2018 Ram HD 3" Lift Kit with FOX 2.0 Performance Shocks (BDS1622FS)

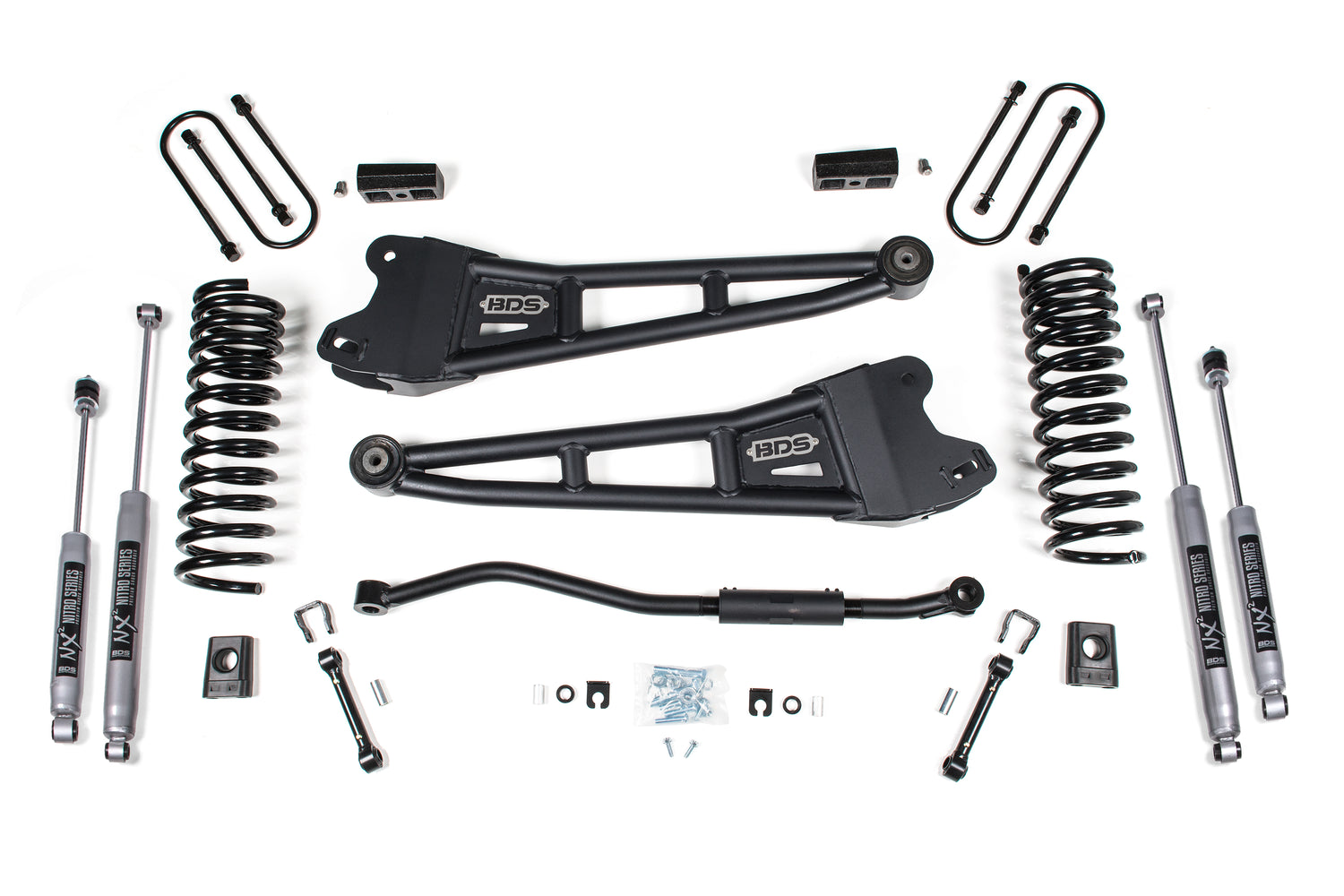

Level out your 2013-2018 RAM 3500 diesel with this BDS 3" radius arm lift kit, clearing up to 35" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, heavy-duty replacement tubular radius arms, a high strength 1-3/8" solid steel track bar for steering correction, sway bar links, brake line brackets and NX2 or FOX 2.0 shocks. The rear runs a high-strength fabricated lift block, longer u-bolts and matching NX2 Nitro or FOX 2.0 Performance shocks. The adjustable track bar lets you recenter the front axle across a range of lift heights and bolts to the factory mounting points.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Front adjustable 1-3/8" solid steel track bar to re-center the axle, pre-assembled with bushings
• Front sway bar correction to maintain handling
• NX2 gas or FOX Performance Series IFP shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Notes

• Some trucks are equipped with rear dual overload springs. Order 4068 to retain the top overload leafs.
• Not for use with factory rear airbag suspensions.
• Tire/wheel fitment (trimming may be required): 35x12.5 with 17x9 and 5" backspace; 35x12.5 with 18x9 and 4.5" backspace; 35x12.5 with 20x9 and 4.5" backspace.

Includes

• BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 (UPC 658848612093)
• BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit (UPC 711745611436)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
