2014-2018 Ram HD 4WD 4.5" Front 2.5" Rear SST Lift Kit (69-1242)

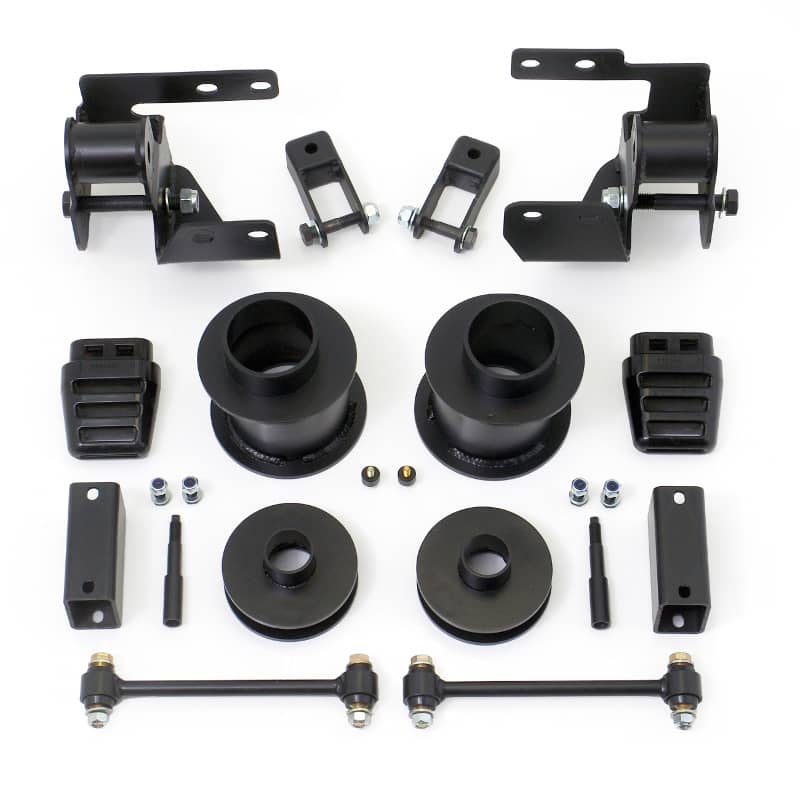

The ReadyLIFT 4.5"F/2.5"R SST Lift Kit is a great bolt-on lift solution designed to provide maximum lift suitable for running negative offset wheels with up to a 37 inch tall tire. This system gives you 4.5 inches of front lift and 2.5 inches of rear lift, raising the truck up nicely while keeping the factory ride and handling characteristics. The kit includes two front and two rear coil spring spacers made with durable black e-coated steel, which will not deteriorate or decrease ride height over time. The system also includes necessary front radius arm drop brackets and a front track bar relocation bracket to ensure perfect suspension geometry and maintain the factory ride. Kit components also include front/rear shock extensions, bump stop extensions, longer sway bar end links, and front sway bar frame side spacers.

Features

• Max Lift: 4.5 inches Front / 2.5 inches Rear
• Includes two front and two rear coil spring spacers (heavy-duty fabricated steel)
• Includes radius arm drop brackets and replacement front track bar relocation bracket for perfect suspension geometry
• Includes front/rear shock extensions, bump stop extensions, longer sway bar end links, and front sway bar frame side spacers
• No modifications required lift kit that maintains factory ride and handling
• Allows for up to 37 inch tall tires

Specs

• Front Lift: 4.5 inches (Coil Spring Spacers)
• Rear Lift: 2.5 inches (Coil Spring Spacers)
• Max Tire Size: 37 inches (37x12.50 for no rub on a 9 inch wide wheel with 0 offset)

Compatibility Notes

• Fits Dodge Ram 2500 4WD models from 2014 to 2018.
• For use ONLY with the new radius arm suspension trucks with rear coil springs.
• For Diesel Engine trucks only.
• Not compatible with Auto-Ride.
• Not Compatible with Power Wagon or snow prep package or ambulance package equipped vehicles.
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.
• Requires 5.75 inch backspace or less wheels (cannot be used with stock wheels).

Notes

• The product is backed by a Limited Lifetime Warranty.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
