2014-2018 Ram HD 6" Lift Kit w/ Falcon Shocks (49-16400)

The ReadyLIFT 6-inch Lift Kit for 2014-2018 Ram 2500 Diesel trucks is a complete big-lift solution that prioritizes ride quality and structural integrity. Featuring heavy-duty steel radius arm drop brackets and a forged dropped pitman arm, this system corrects vital suspension and steering geometry. By integrating Falcon 1.1 performance shocks and a track bar relocation bracket, this kit provides a stable, "better-than-factory" feel even with the clearance to run 37-inch off-road tires.

Features

• Provides a 6-inch front lift and a leveled rear stance for an aggressive profile.
• Includes four (4) Falcon 1.1 Monotube Shocks specifically tuned for Ram 2500 diesel stability.
• Heavy-duty radius arm drop brackets maintain proper caster angles for precise steering.
• Forged dropped pitman arm corrects steering geometry and reduces bump steer.
• Includes a track bar relocation bracket to keep the front axle perfectly centered.
• Front coil spring spacers preserve the factory spring rate and comfort while providing lift.
• Equipped with sway bar drop brackets and bump stop extensions for maximum travel.
• Maintains the factory turning radius and overall towing capabilities.

Notes

• Vehicle alignment, headlamp aim, and Advanced Driver Assistance Systems (ADAS) must be recalibrated after installation.
• ReadyLIFT recommends professional installation due to the complexity of the 6-inch suspension geometry.

Compatibility Notes

• Fits 2014-2018 Dodge Ram 2500 4WD trucks with the Cummins turbodiesel engine.
• Not compatible with 6.4L HEMI gasoline engines or 2WD models.
• Not compatible with trucks equipped with factory rear air suspension.

Tire Fitment

• Maximum Tire Diameter: 37 inches.
• Recommended Setup: 37x12.50 tires on a 9-inch wide wheel with +12 to +18 offset for a rub-free fit.
• Stock wheels can be reused with tires up to 12.50 inches wide (minor trimming may be required).

Shock Specs

• Shock Type: Falcon 1.1 Monotube Performance Dampers.
• Construction: 2.125-inch 6061-T6 aluminum alloy shock bodies for high impact resistance and heat dissipation.
• Internal Technology: Volume Optimized Damping (VOD) features a digressive linear piston for improved low-speed damping.
• Design: Monotube construction separates oil and gas to prevent fading and cavitation during heavy use.

Specs

• Front Lift Height: 6 inches.
• Material: Heavy-duty fabricated steel brackets and spacers.

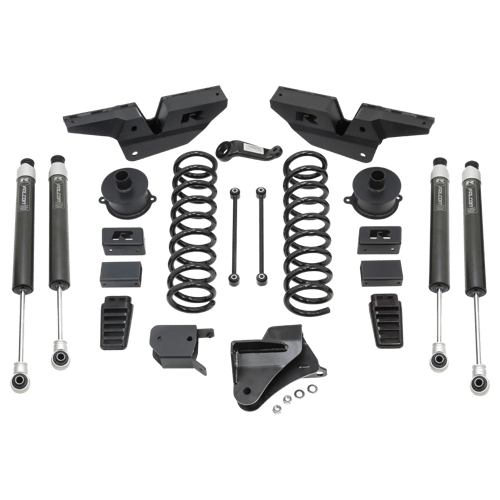

• Kit Contents: Front coil spacers, Falcon 1.1 shocks, radius arm drop brackets, dropped pitman arm, track bar relocation bracket, sway bar drops, bump stop extensions, and rear blocks.
