2014-2018 Ram HD Front and Rear Lift Kit (ICOK214523)

Level up your 2014-2018 Ram HD with this complete ICON suspension system. 4.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll

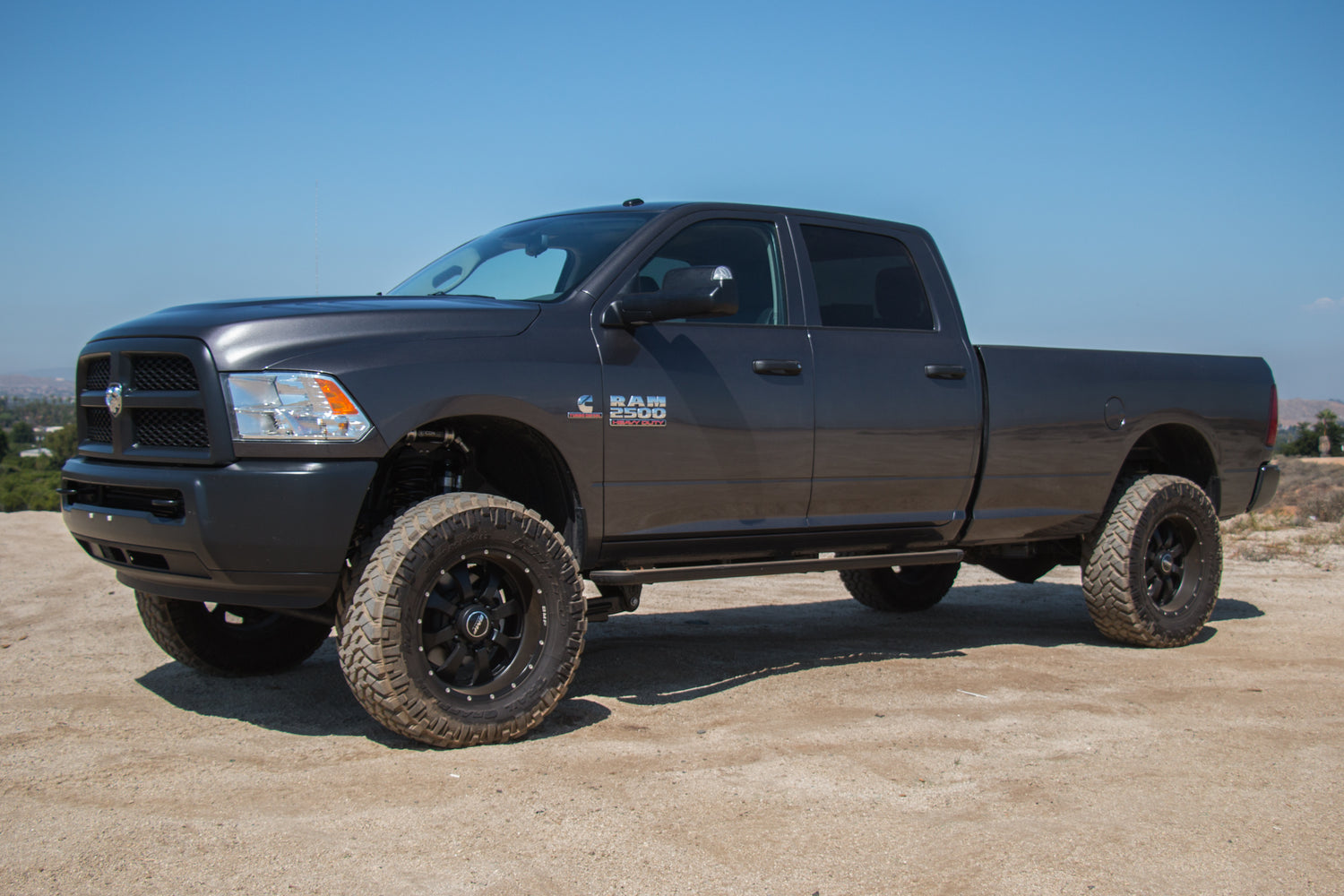

• Level stance from front to rear of vehicle
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.25" Backspace / 13mm Offset
• ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
• ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
• Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

Important Notes

• Springs Are Rated For Diesel Engines Only
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
• Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
• Not For Vehicles With Rear Factory Air Ride
• Ships in Multiple Boxes

Manufacturer Description

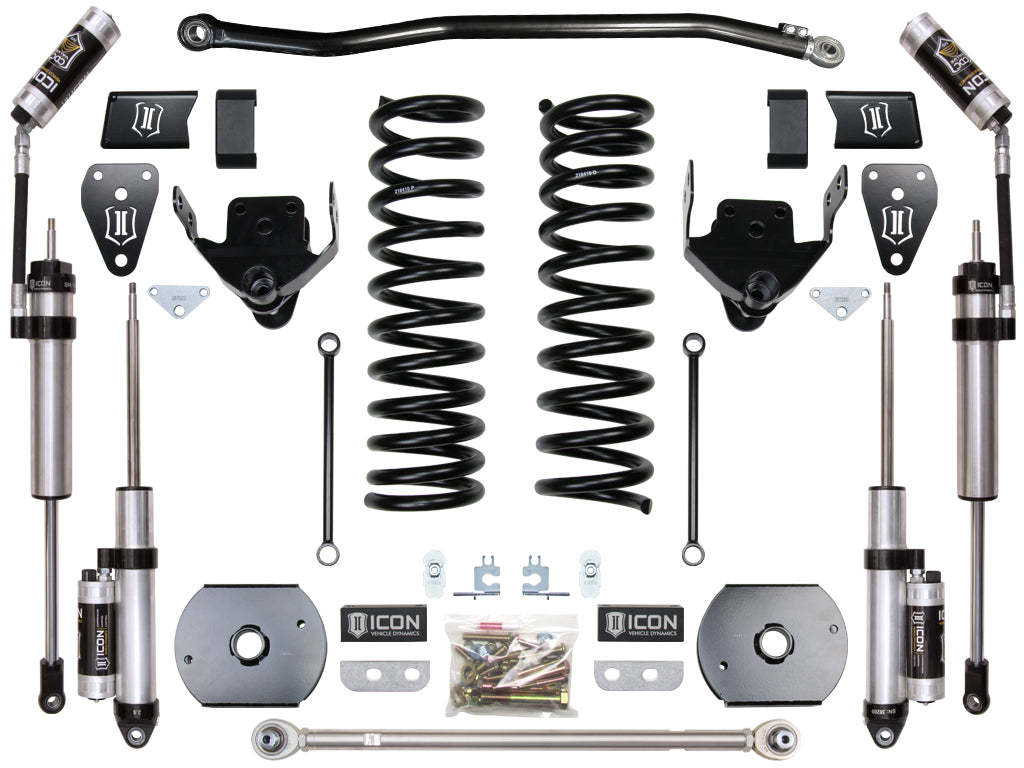

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5" dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
