2014-2018 Ram HD 2.5" Lift Pathfinder Leveling System (Diesel) (CS-DLVL-PF-14-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

Regular price $5,015.37 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Torsion Sway Bar

Optional

The 2.5" leveling system does not require sway bar geometry correction, but the Torsion Sway Bar is a major ride-quality upgrade. It lets the front suspension move freely without giving up control. Keep the factory bar only if you need its stiff rate (snow plow, in-bed camper, constant max-payload hauling).

Rear Track Bar

Optional

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers

High Mount Steering Stabilizer

Optional

Fabricated Radius Arms

Optional

Icing on the cake. Massive strength upgrade over the factory arms with internal X-bracing, 1/4" boxed steel construction, 17-4 stainless serviceable spherical joints, and 10" quad-wrap limit straps that protect your front shocks.

Radius Arm Drop Bracket

Optional

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Front Diff Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional
Description

Carli Pathfinder Leveling System for 2014-2018 Ram HD Diesel. SPEC 2.5" shocks front and rear with leveling coils and adjustable track bar. King-level performance at a more accessible price.

Part Number: CS-DLVL-PF-14-D

Features
  • 2.5" front lift
  • SPEC 2.5" shocks
  • Maintains towing/payload

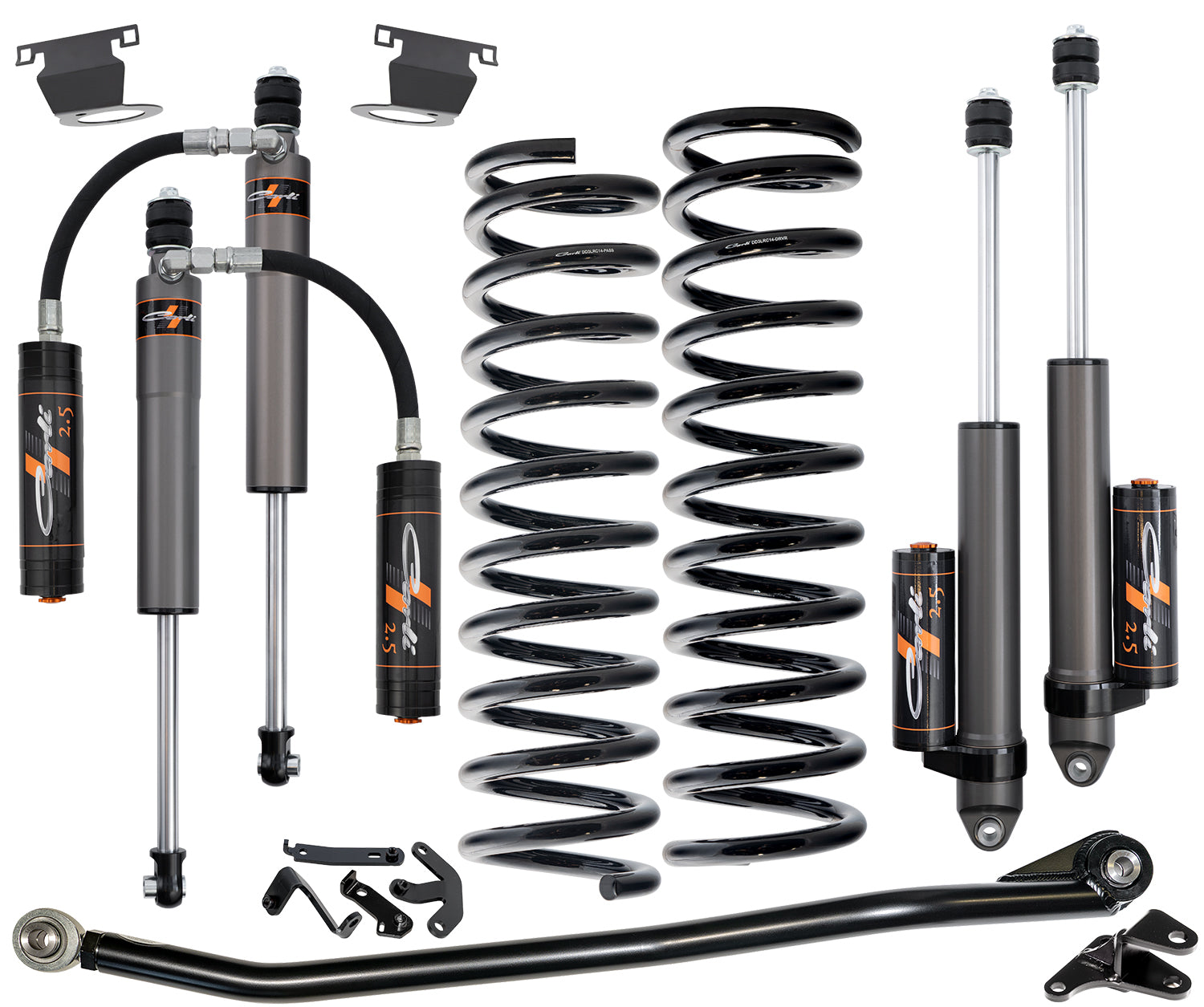

Includes
  • Carli SPEC 2.5 Front & Rear Shocks
  • Linear Rate Coil Springs
  • Adjustable Track Bar
  • Reservoir Mounts

Warranty

Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications
