2014-2018 GM 1500 6" Lift Kit (BDS725H)

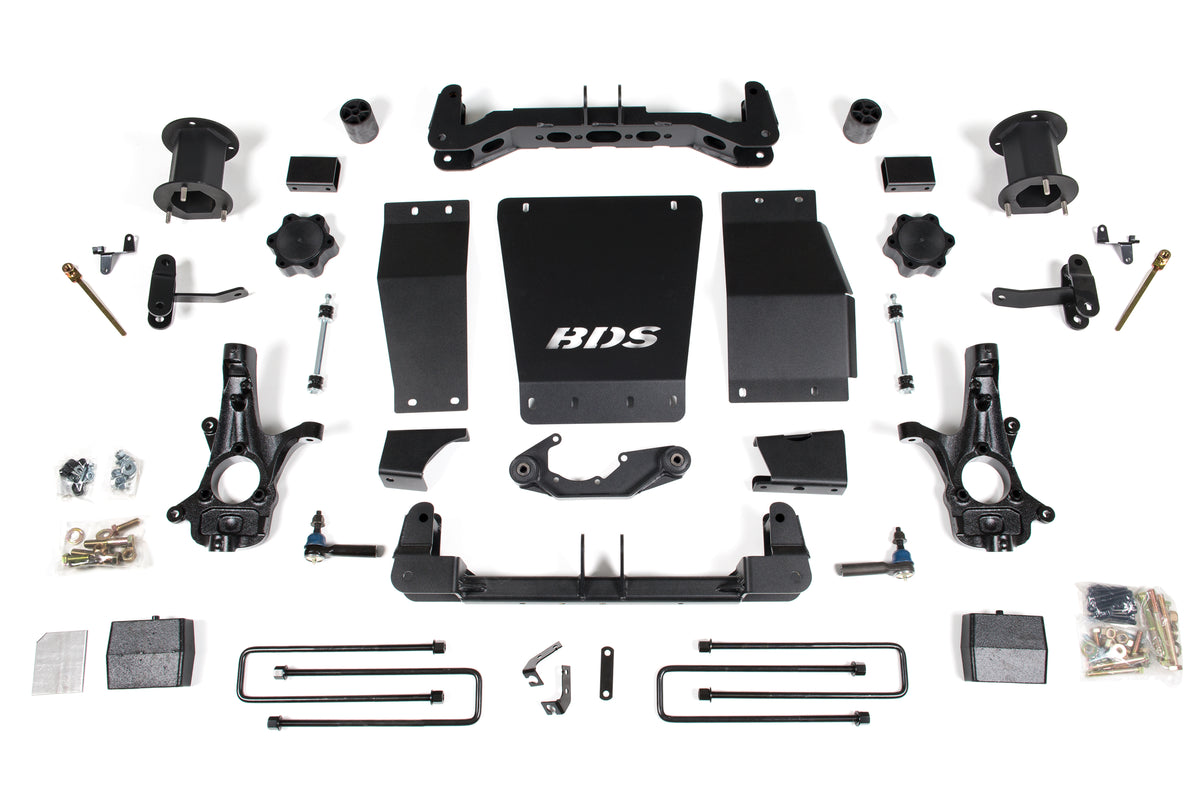

This BDS 6" lift kit takes your 2014-2018 GMC Sierra / Chevy Silverado 1500 to new heights, with clearance for up to 35" tires. Up front it uses a top-mounted strut spacer, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates and CNC-machined ductile iron steering knuckles, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear runs Pro-Ride coil springs, anti-sway bar links, a track bar relocation system and adjustable upper control arms to set pinion angle. Shock relocation brackets and rear shock extensions retain the factory Magneride dampers.

Features

• Includes shock relocation brackets to maintain factory Magneride shocks
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms for durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: No
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5.75

Notes

• Works only on Magneride equipped trucks.
• Requires frame bracket modification.
• Requires differential modification to clear electric power steering.
• GM produced these trucks with several knuckle/control arm configurations. Cast Steel control arm models require the Cast Steel Control Arm kit; Stamped Steel and Aluminum control arm models require the Aluminum Control Arm kit. Verify which factory control arms your truck has before ordering.
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference.

Includes

• BDS011505, 2014 Chevy 1500 5 inch Rear Block Kit (UPC 658848611898)
• BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast (UPC 658848615018)
• BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 inch Frt Box Kit (1of2) (UPC 658848615032)
• BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2) (UPC 658848615049)
• BDS121655, 2014-up GMC Denali Magneride Box Kit (UPC 658848619252)
