2014-2020 F-150 2" Lift Kit with FOX 2.0 Performance Shocks (BDS1553FSR)

BDS 2" leveling kit with FOX 2.0 snap ring struts for 2014-2020 Ford F150 trucks, with clearance for up to 35" tires. Up front are FOX 2.0 Performance Series strut shocks and heavy-duty tubular upper control arms. The rear uses matching FOX 2.0 Performance shocks.

The mono-tube struts use a custom-molded spring seat to reuse your stock spring and hardware, with three preload settings for a choice of 0", 1", or 2" of lift. The HD upper control arms use 1.5" OD x .120-wall tubing with an indexed ball joint cup for additional down travel and camber adjustment, durometer-specific frame bushings, and a greaseable ball joint.

Features

• FOX Performance IFP shocks eliminate oil aeration for max performance from the factory-tuned valving
• HD upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• 100 percent bolt-on installation
• FOX shocks are fully serviceable and corrosion resistant

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

Notes

• Works with bar pin lower strut mounts. For eye-style lower strut mounts, use 2009-13 model kits.
• Will not fit HD models (7 lug)

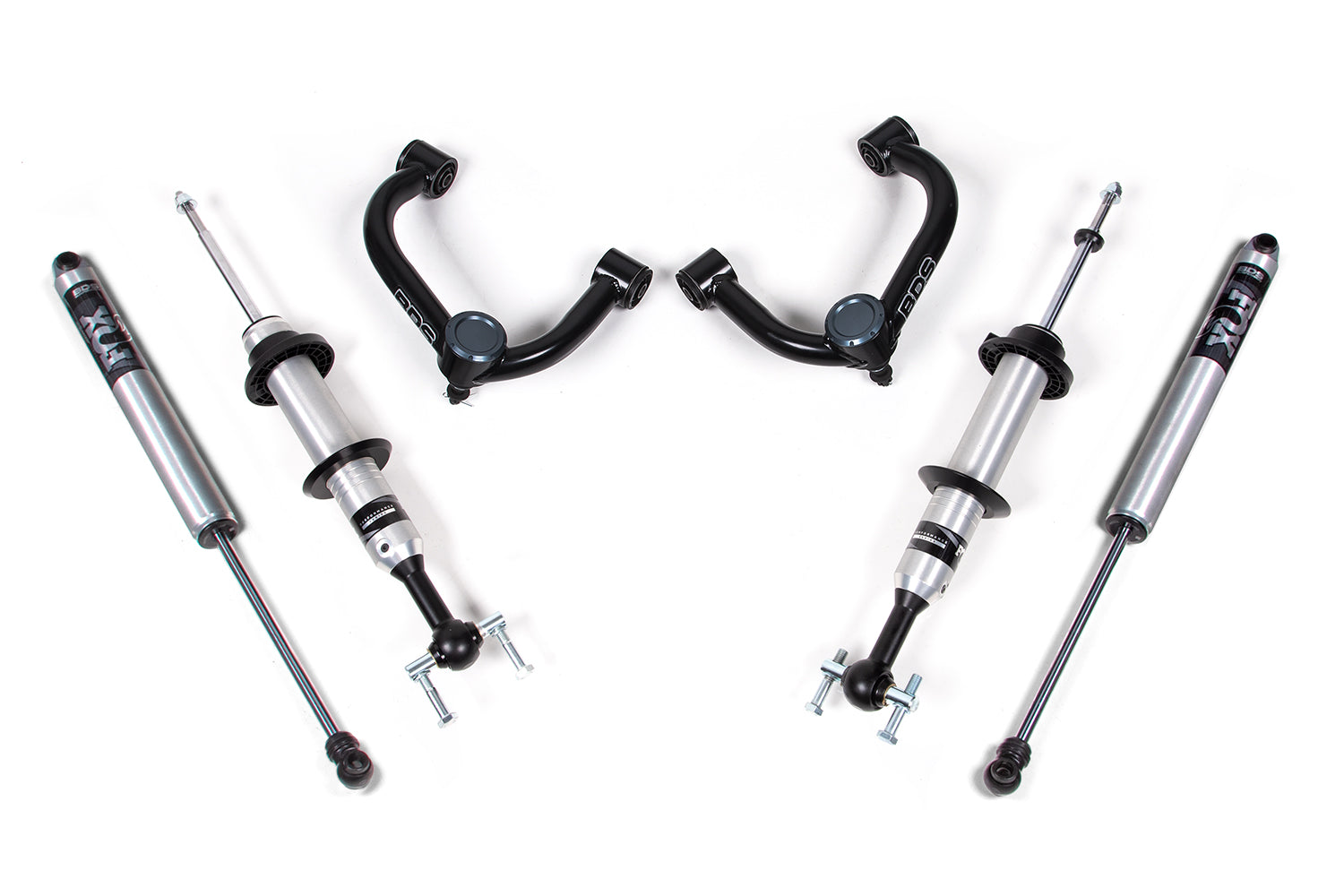

Includes

• BDS123253, 2004-2020 F150 Upper Control Arm Box Kit (UPC 711745604100)
• FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
• FOX98562009, 15-20 Ford F150 4WD, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.6 inch, 0-2 inch Lift
