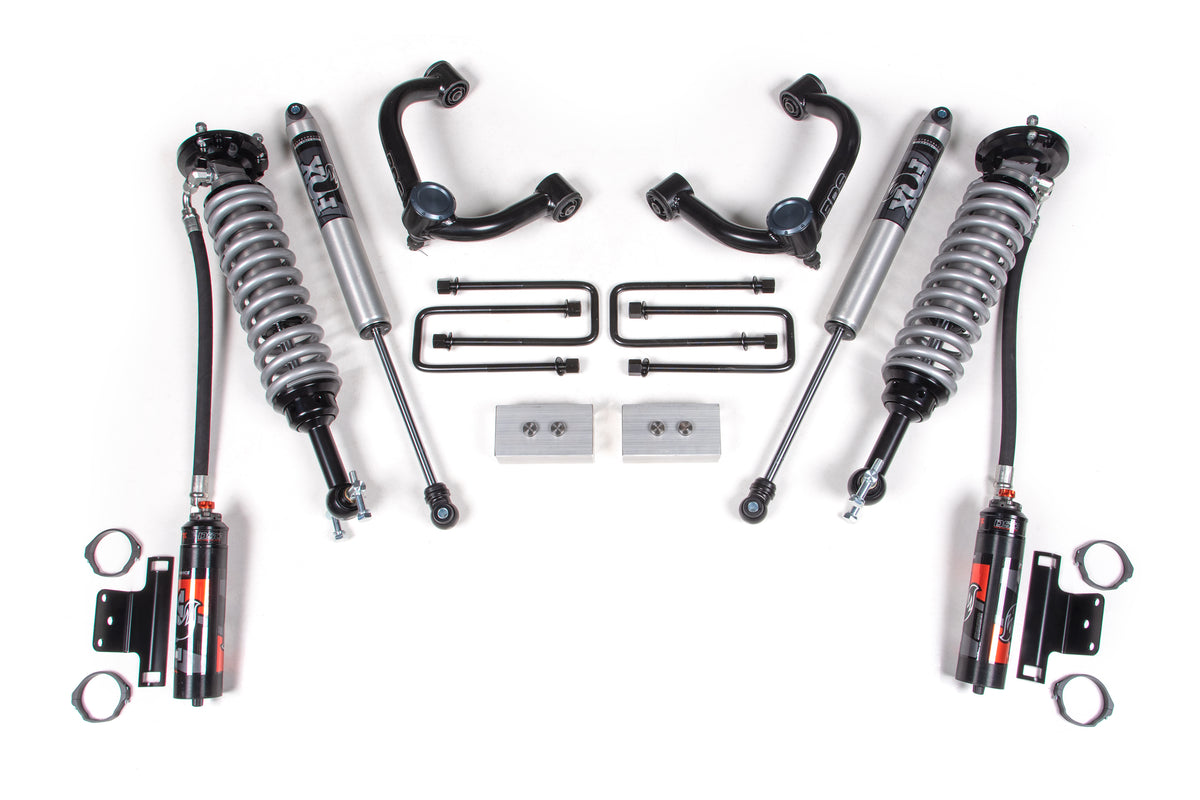

2014-2020 F-150 3" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1588FPE)

Up the ante in your 2014-2020 Ford F150 truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• FOX 2.5 coil-over shocks designed specifically for increased travel and the ability to soak up the roughest terrain
• Dual Speed Compression adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts lift and level the stance

Shock Features

FOX 2.5 Performance Elite shocks offer next-level performance for on-road comfort and off-road capability. Tuned and ready to install right out of the box, these bolt-on 2.5 inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in rough terrain. The Dual Speed Compression adjuster adds remarkable versatility and precise tuning with a simple twist of either of two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

• 2.5 inch Impact extruded aluminum body
• Massive 7/8 inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Control Arm Features

Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled or lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball-joint cup to correct ball-joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation, while at the other end are quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Front Lift Height: 3 inch
• Rear Lift Height: 0 inch
• Shocks Included: Yes

Notes

• Works with bar-pin lower strut mounts. For eye-style lower strut mounts use 2009-13 model kits.
• Will not fit HD models (7 lug).

Includes

• BDS013204 - 2014-2020 Ford F150 Coilover 2 inch-3 inch Box Kit (UPC 658848613113)
• FOX88406317 - Kit: BDS 14-On F-150 4wd Front Coilover 2.5 PEF Series, R/R 5.5 inch 0-3 inch Lift, Dual Speed Compression Adjust (UPC 814897013506)
• FOX98224651 - Fox 2.0 Shock 27.95 x 17.35 x 2, EB1/EB1, Qty 2

Manufacturer Description

Up front the lift kit includes FOX 2.5 Performance Elite Series remote-reservoir coil-over shocks and heavy-duty tubular upper control arms for increased strength. In the rear the kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
