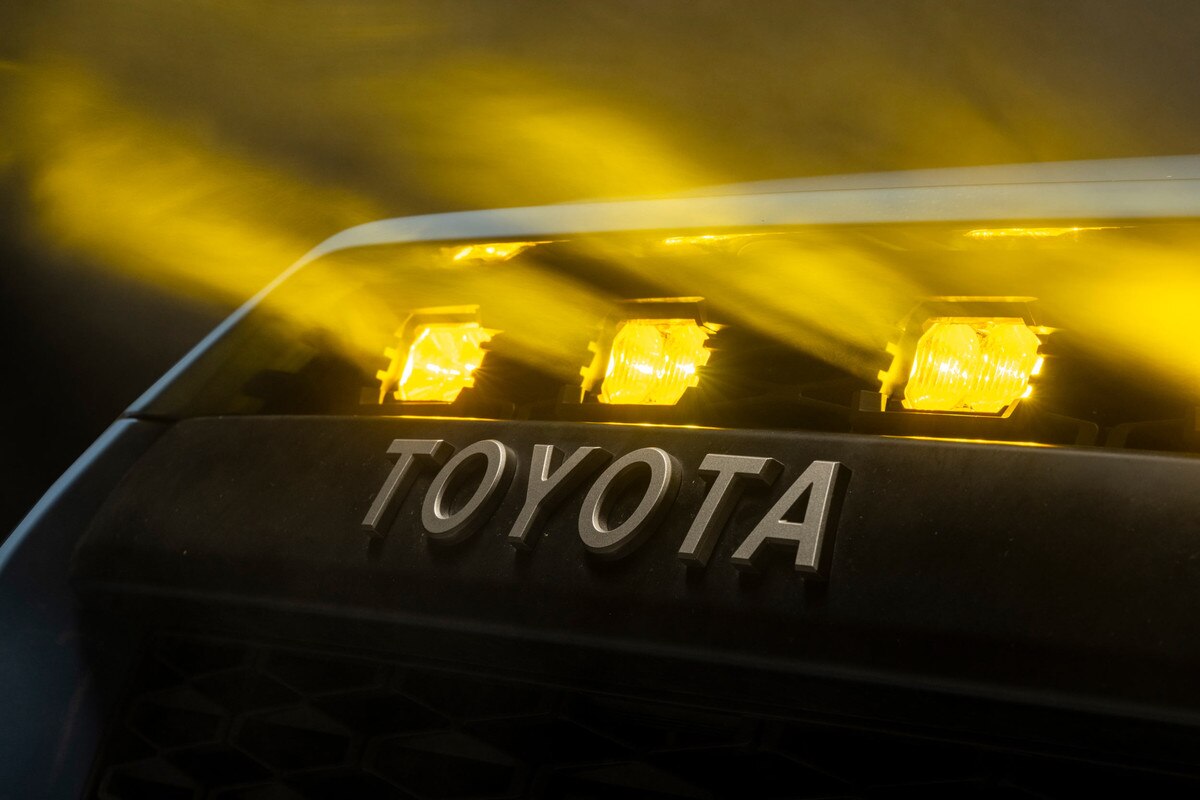

2014-2024 4Runner XBG LED DRIL Grille (XBG36)

Description

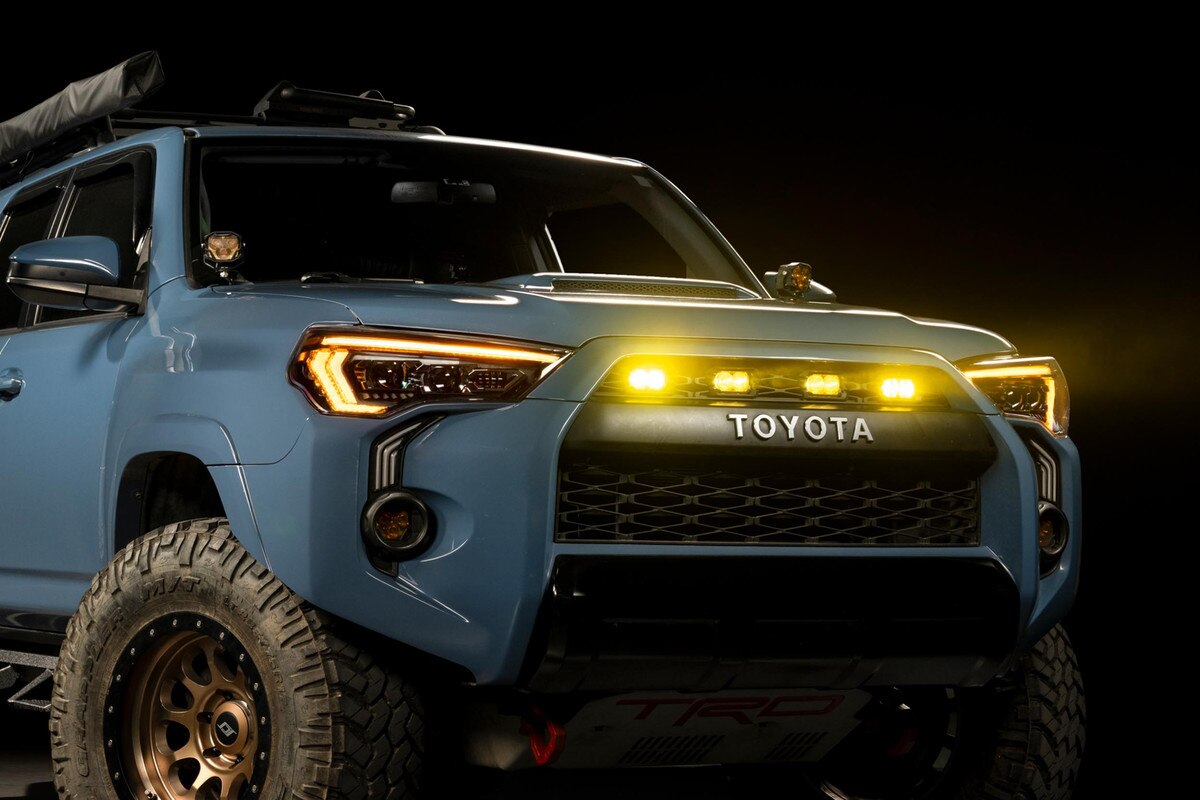

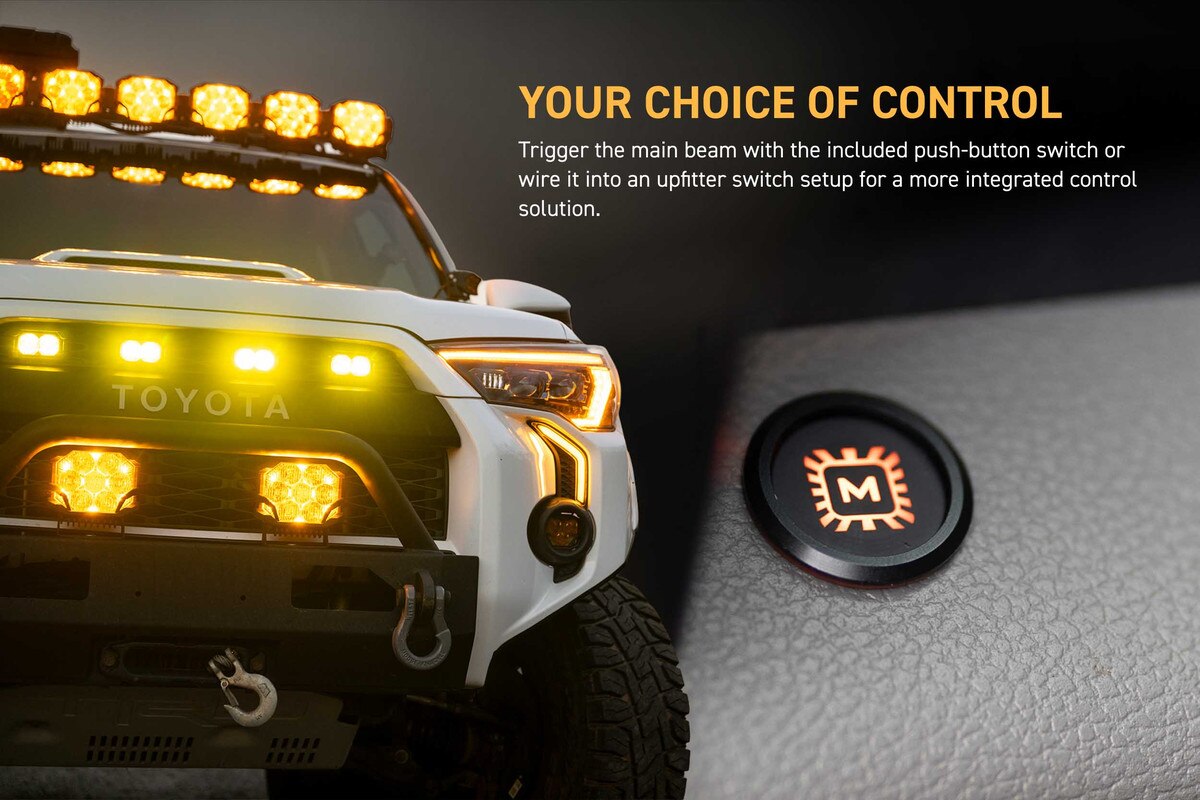

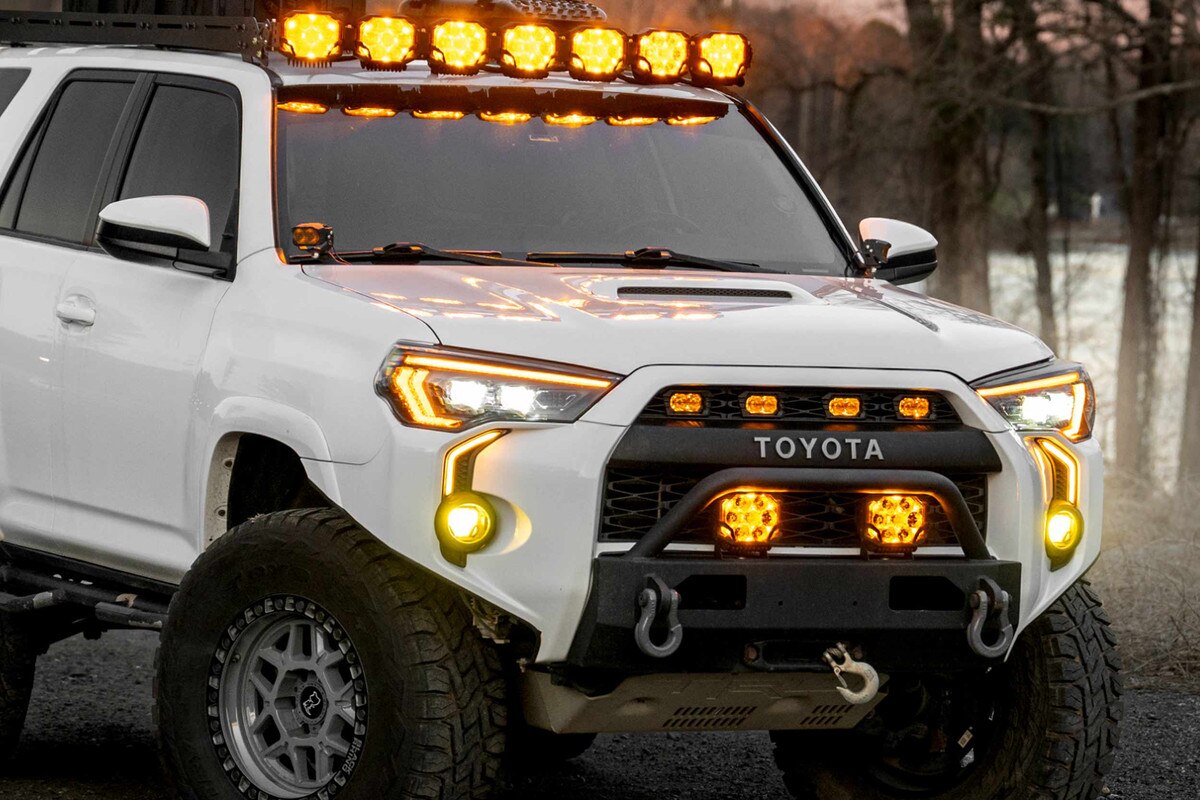

A fifth-gen 4Runner first! Four of the popular Morimoto 2Bangers mounted cleanly in a new mesh grille insert and fascia cover, easily wired up with the included plug and play harness. Compatible with all trim levels of the 2014-2024 Toyota 4Runner! But wait--there's more: these 2Bangers are equipped with dual-intensity amber backlighting as well! The backlight intensity far outshines any cheapo "raptor" style grille lights, and because of that, offer a dim mode for nighttime driving. The main beam of the pods can be triggered with the included push-button switch or via an upfitter switch setup. The kit comes with two yellow Combo and two yellow SAE Wide optics for the best visibility. The included fascia cover looks like the OE TRD Pro style cover, except the added feature of no emblem dimples!

Features

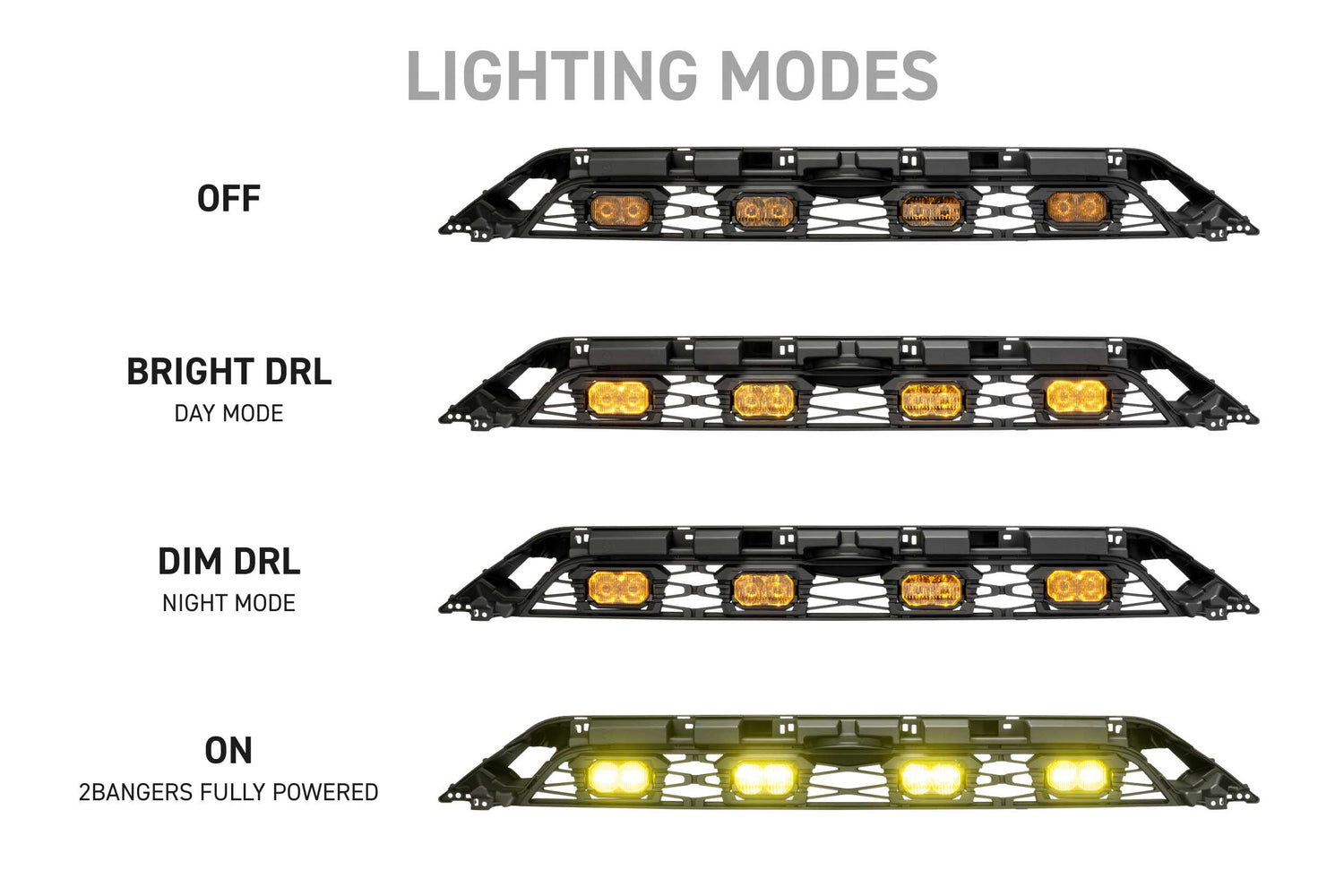

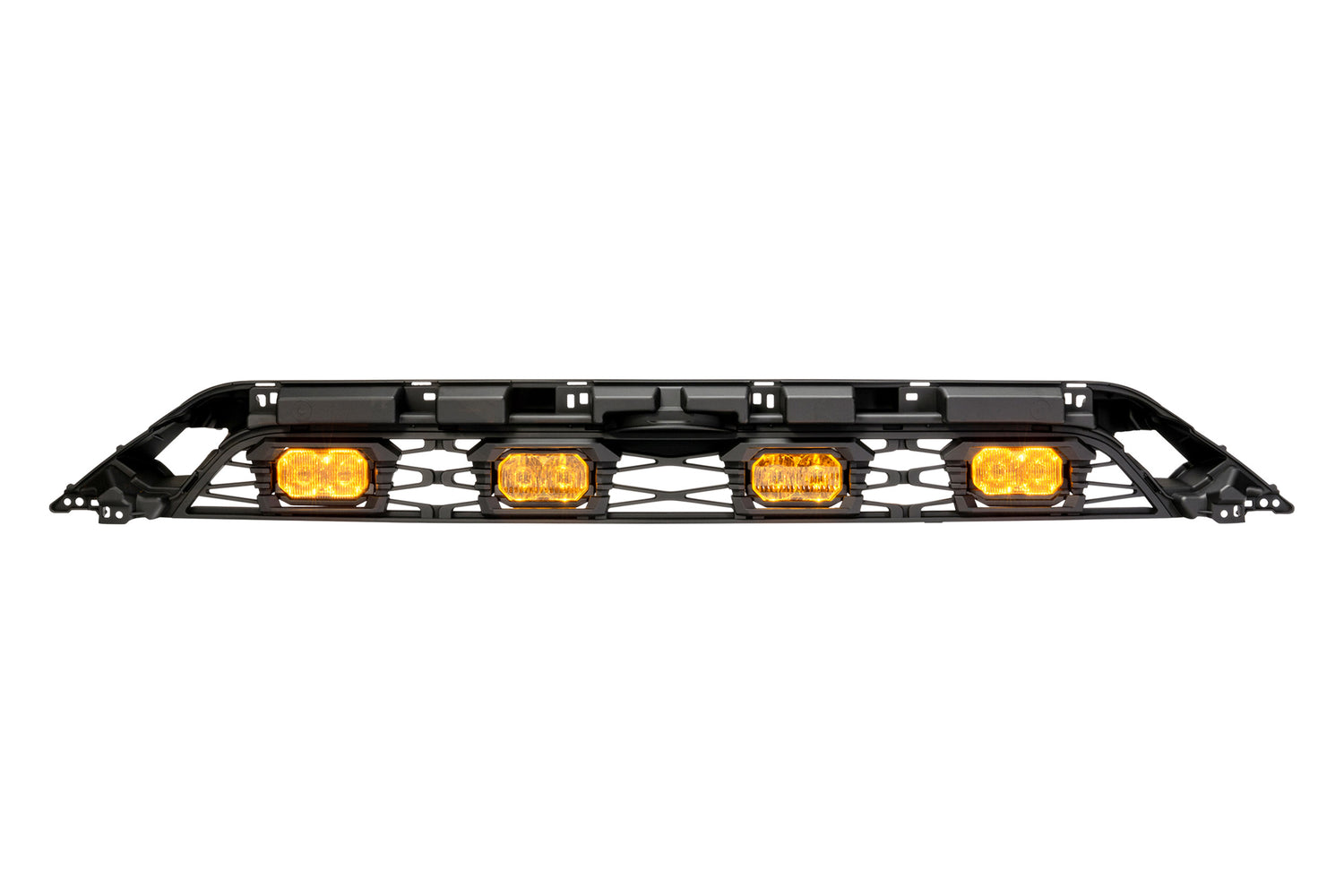

• High Vis Backlighting: Integrated dual-intensity amber backlighting for DRL and marker light modes.
• Direct Swap: Carefully designed to replace the stock grille with zero modifications.
• Plug and Play: Included wiring makes for a very easy installation on all trim levels.
• Useful Output: The four included pods in Combo and SAE Wide mode provide useful off-road visibility with a clean look.
• Shaved Fascia Cover: Unique to this grille setup, the fascia cover has no emblem dimples for a super-clean look.
• Compliance: DOT, SAE, and FMVSS108 standards.

Specifications

• Intensity : 17,000 Cd (170lux @ 10m)
• Peak Luminosity (raw) : 3,600lm
• Current : 4.0A @ 13.5V DC
• Color : 2400K
• Light Source (per pod) : 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight)
• Material : ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powder-coated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powder-coated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware

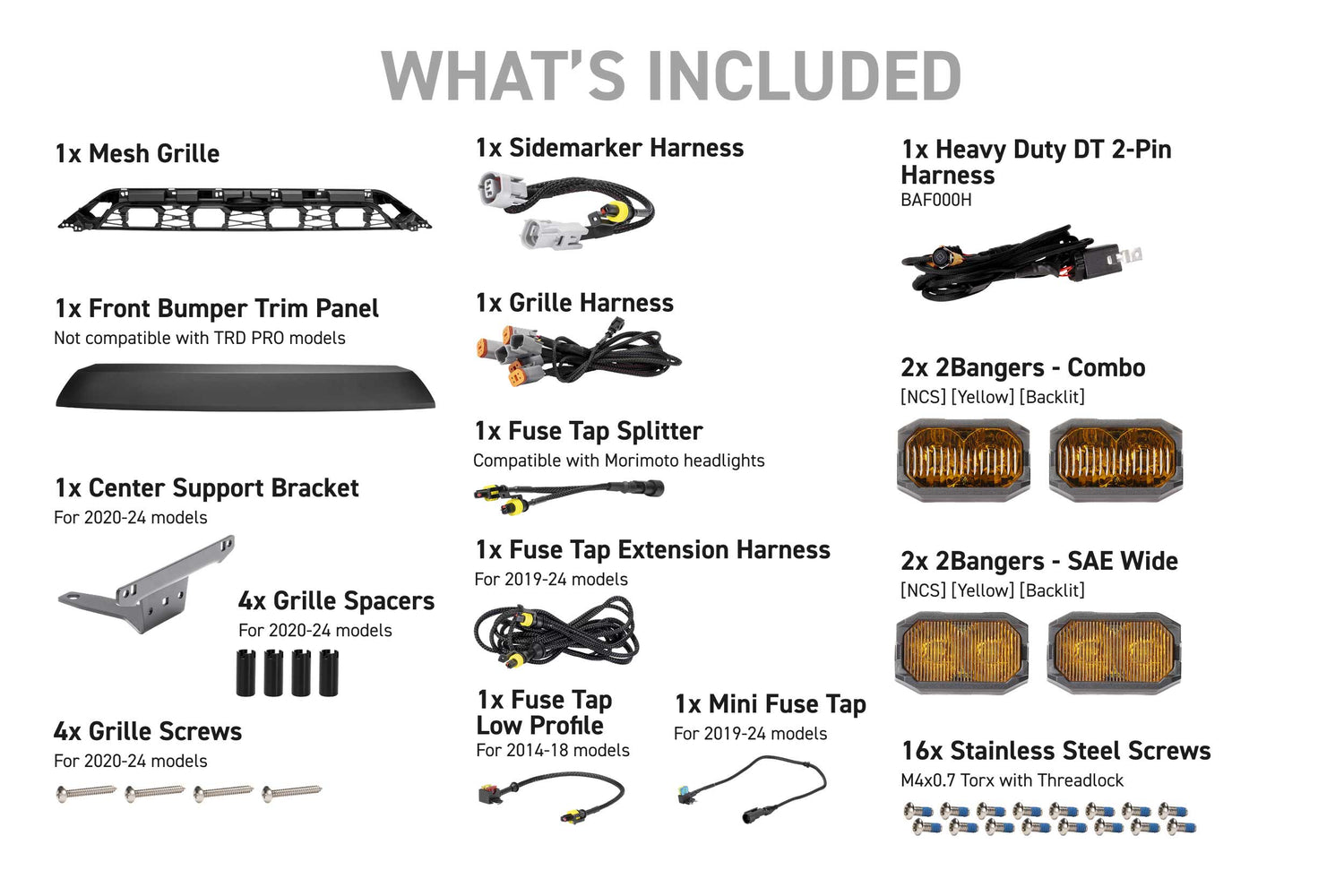

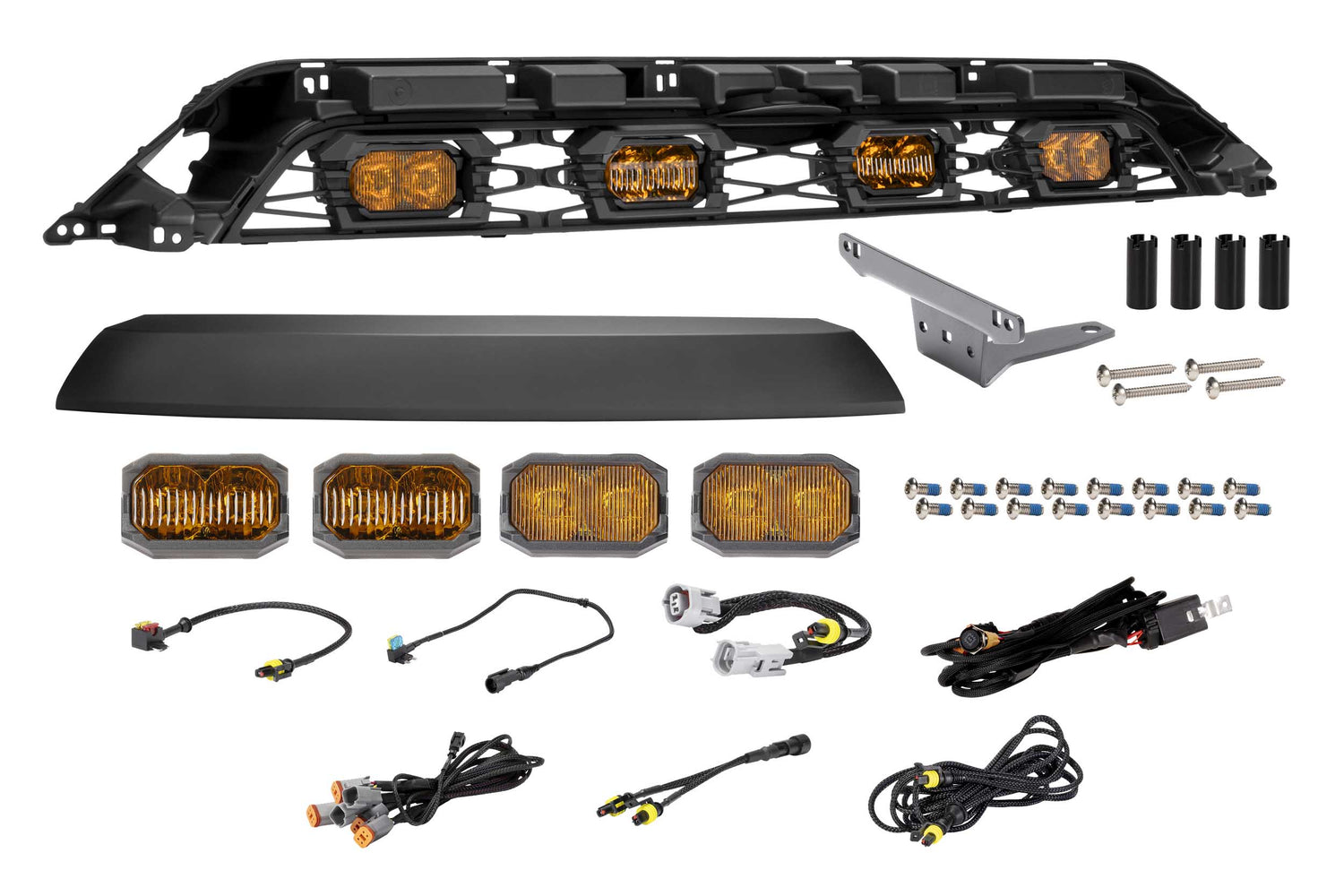

Includes

• Grille : 1x Mesh Grille Insert
• Fascia Cover : 1x Fascia Cover
• Light Pods : 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods
• Hardware : 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit
• Wiring : 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H)

Notes & Compatibility

• Compatible with all 2014-2024 Trim levels
• Don't want yellow? Users can fully customize output with these interchangeable 2Banger replacements: White Lenses
• Replaces Toyota Part Numbers : PZ323-35056, PZ327-35053, 52701-35010, 53101-35080
